1980 Kawasaki KDX250 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1980 Kawasaki KDX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

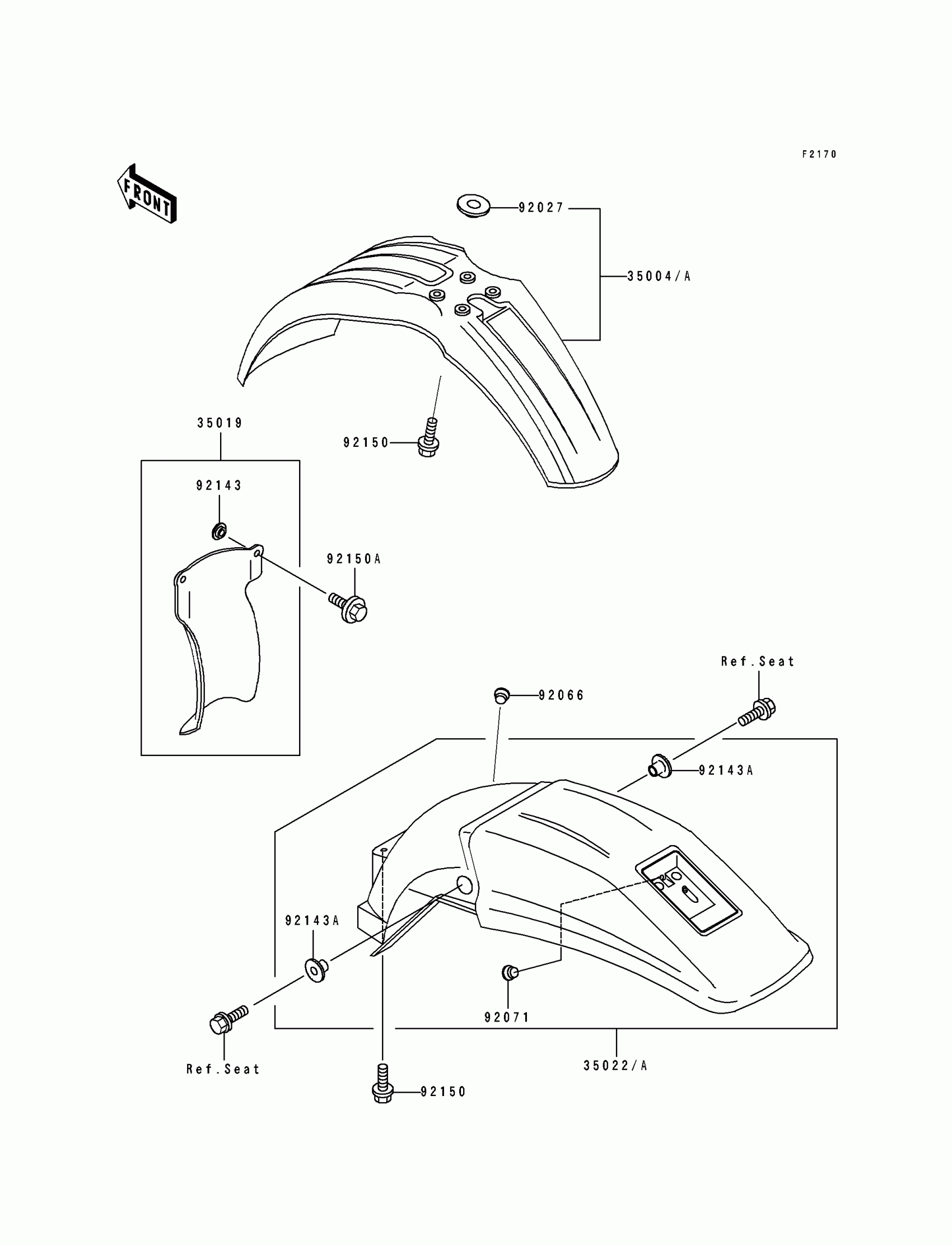

1980 Kawasaki KDX250 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER-FR,LIME GREEN

35004-4001-7F

1
Out of stock

2

BOLT-UPSET

112G0618

1
Out of stock

3

WASHER SPRING 6MM

461F0600

1
Out of stock

4

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

5

FENDER-RR,L.GREEN

35022-4001-7F

1
Out of stock

6

BOLT-UPSET,6X20

112G0620

1
Out of stock

7

COLLAR

92027-194

1

$4.37

In stock

8

DAMPER,CASE

92075-222

1

$5.84

In stock

9

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

10

BOLT

114G0836

1
Out of stock

11

WASHER CHNG DRUM LEV

92022-091

1
Out of stock

12

NUT,LOCK,8MM

92015-1124

1
Out of stock

13

FLAP,FENDER

35019-4001

1
Out of stock

14

BOLT-UPSET,6X12

112G0612

1
Out of stock

15

WASHER-PLAIN,7MM

92022-240

1
Out of stock

16

WASHER SPRING 6MM

461F0600

1
Out of stock

17

NUT 6MM

311B0600

1
Out of stock

18

COVER,AIR BOX

14025-4005

1
Out of stock
