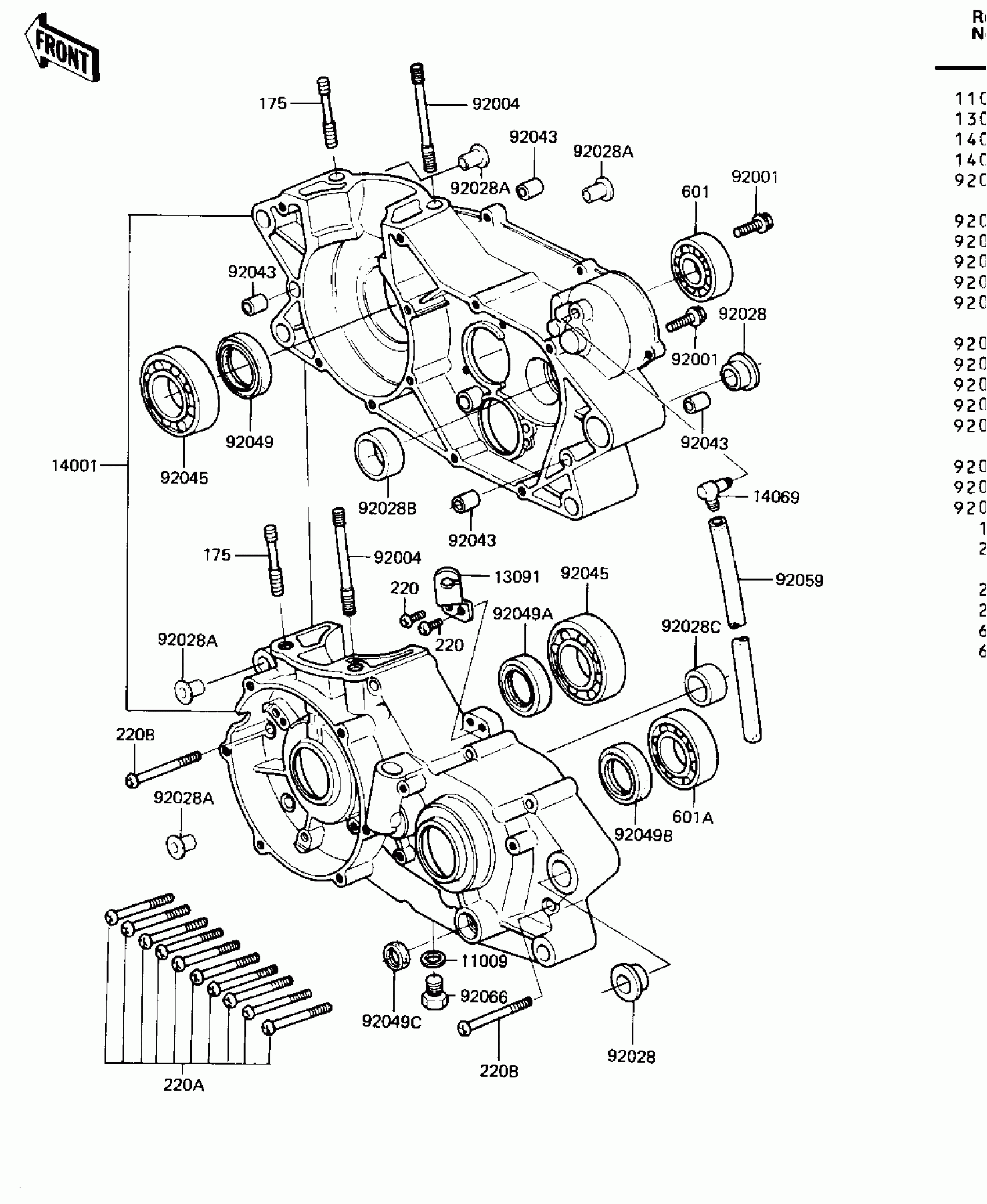

Kawasaki KDX250 CRANKCASE ('82 KDX250-B2) Diagram

Description

Price

11009

GASKET,10.5X16X1

92065-058

$3.16

13091

HOLDER

13091-1132

Unavailable

14001

SET-CRANKCASE

14001-5108

Unavailable

14069

BREATHER

14069-003

$8.16

92001

BOLT,FLANGED,6X18

92001-1066

$4.93

92004

STUD,10X65

92004-1032

Unavailable

92028

BUSHING,CASE PIVOT

92028-1123

$26.76

92028A

BUSHING

92028-1133

Unavailable

92028B

BUSHING,26X35X14

92028-131

$34.76

92028C

BUSHING,23X30X13

92028-132

$38.79

92043

PIN,DOWEL,10X14

92043-1037

$0.76

92045

BEARING,BALL,#6305SH

92045-1024

Unavailable

92049

SEAL-OIL,TCJ25457

92049-1051

$33.63

92049A

SEAL-OIL,TCJ20407

92049-1052

$29.18

92049B

SEAL-OIL,TB3040

92050-033

$20.16

92049C

SEAL-OIL,TB13225.5

92051-005

$6.16

92059

TUBE,6X9X500

92059-1125

$14.65

92066

PLUG,DRAIN,10X12

92067-001

$3.50

175

BOLT-STUD-FINE,10X30

175G1030

$3.32

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

220A

SCREW PAN HEAD 6X50

220B0650

$1.19

220B

SCREW-PAN-CROS,6X60

220B0660

Unavailable

601

BEARING-BALL,#6204C3

601B6204

$10.76

601A

BEARING-BALL,#6205C3

601B6205

$15.38
