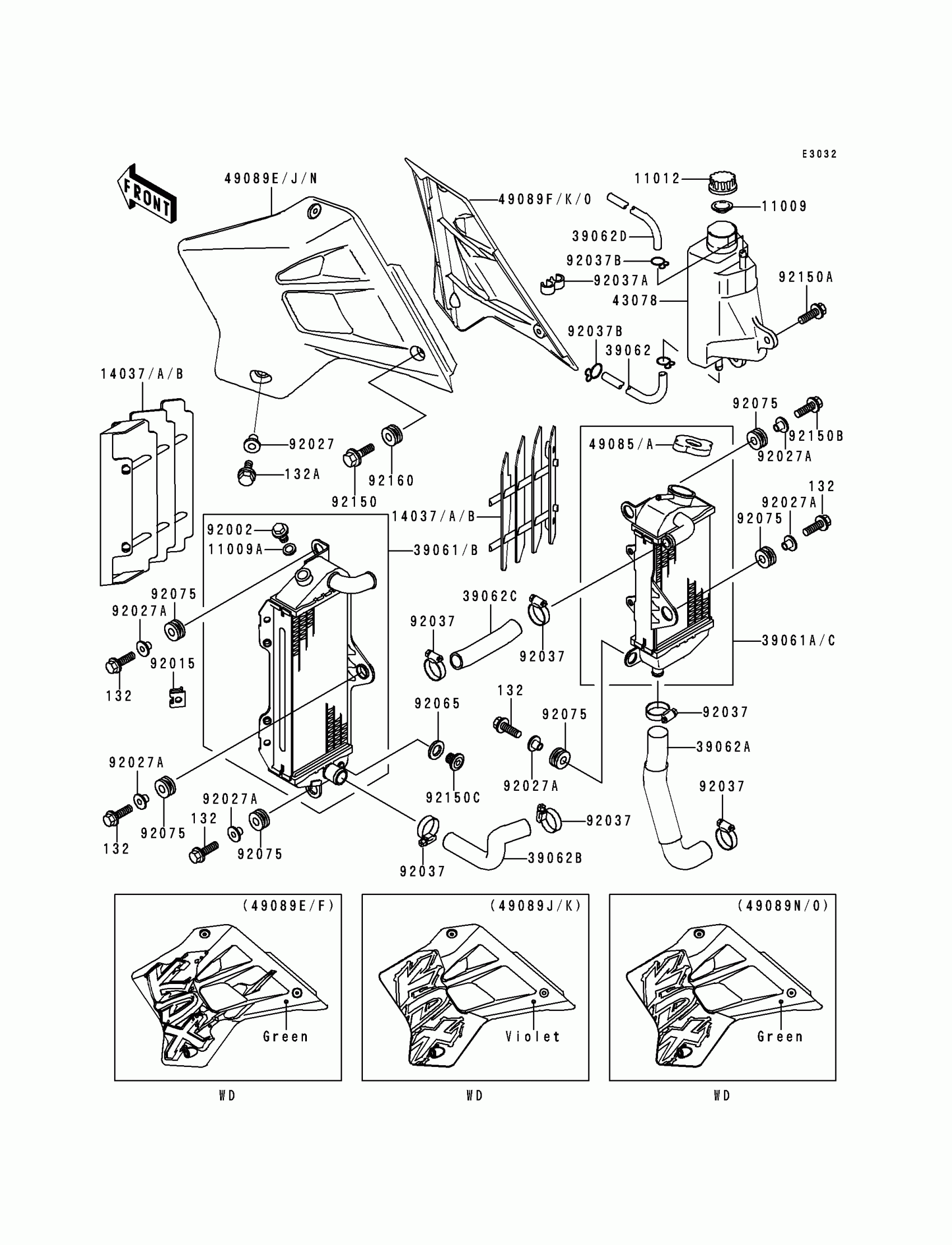

Kawasaki KDX200 Radiator(KDX200-H1-H3) Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11009A

GASKET,DRAIN BOLT

11009-1152

$7.44

11012

CAP

11012-1084

$1.31

14037A

SCREEN,WHITE

14037-1099-RZ

$22.97

39061B

RADIATOR-ASSY,LH

39061-1239

Unavailable

39061C

RADIATOR-ASSY,RH

39061-1240

Unavailable

39062

HOSE-COOLING,5X9X700

39062-1423

$29.90

39062A

HOSE-COOLING,RADIATOR,RH-PUMP

39062-1579

$38.45

39062B

HOSE-COOLING,HEAD-RADIATOR,LH

39062-1580

Unavailable

39062C

HOSE-COOLING,RADIATOR-RADIATOR

39062-1609

$19.78

39062D

HOSE-COOLING,5X9X368.5

39062-1619

$5.61

43078

RESERVOIR

43078-1142

$29.76

49085A

CAP-ASSY-PRESSURE,P1.1

49085-1070

$45.73

49089N

SHROUD-ENGINE,LH,LIME GREEN

49089-5281-6W

Unavailable

49089O

SHROUD-ENGINE,RH,LIME GREEN

49089-5282-6W

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132Y0625

Unavailable

92002

BOLT,RADIATOR DRAIN

92002-1682

$19.01

92015

NUT

92015-1487

$3.80

92027

COLLAR,6.5X10X14.1

92027-1183

$4.37

92027A

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,COOLING HOSE

92037-1589

$14.60

92037A

CLAMP,HOSE

92037-1603

$4.42

92037B

CLAMP

92037-1712

$3.97

92065

GASKET,10.5X16X1

92065-058

$3.16

92075

DAMPER RUBBER,RR FENR

92075-209

$3.72

92150

BOLT,6X12

92150-1435

$3.43

92150A

BOLT,FLANGED,6X14

92150-1504

$3.81

92150B

BOLT,FLANGED,6X25

92150-1507

$3.81

92150C

BOLT,10X10

92150-1867

$4.92

92160

DAMPER,10X20X12

92160-1167

$3.72
