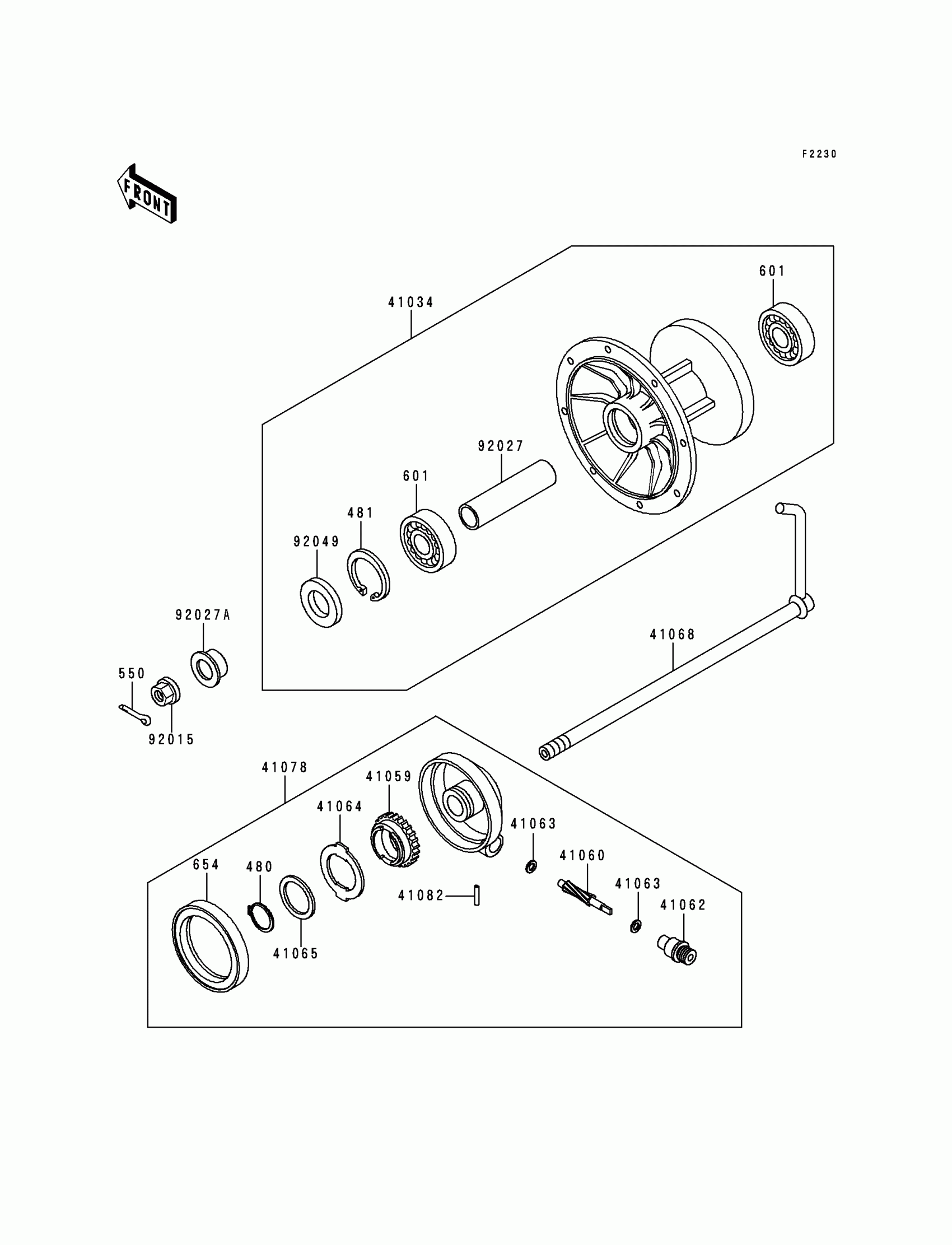

Kawasaki KDX200 Front Hub(KDX200-E4) Diagram

Description

Price

480

CIRCLIP-TYPE-C,24MM

480J2400

$4.98

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.64

550

PIN-COTTER,3.0X25

550D3025

Unavailable

601

BEARING-BALL,#6202UG

601B6202UG

$16.17

654

OIL SEAL,#50659

654A506509

Unavailable

41034

DRUM-ASSY,FRONT BRAKE

41034-1156

$510.77

41059

GEAR-METER SCREW

41059-027

Unavailable

41060

GEAR-METER SCREW,8T

41060-015

Unavailable

41062

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-015

Unavailable

41065

WASHER,24.5X32X0.8

41065-005

Unavailable

41068

AXLE,FR

41068-1291

$70.69

41078

CASE-ASSY-METER GEAR

41078-011

Unavailable

41082

PIN,SPRING

41082-001

$3.53

92015

NUT,FLANGED,14MM

92015-1401

$9.03

92027

COLLAR,15.2X22.2X75

92027-1958

$41.65

92027A

COLLAR,L=12

92027-1959

$15.76

92049

SEAL-OIL,MH20354.5

92049-1176

$14.24
