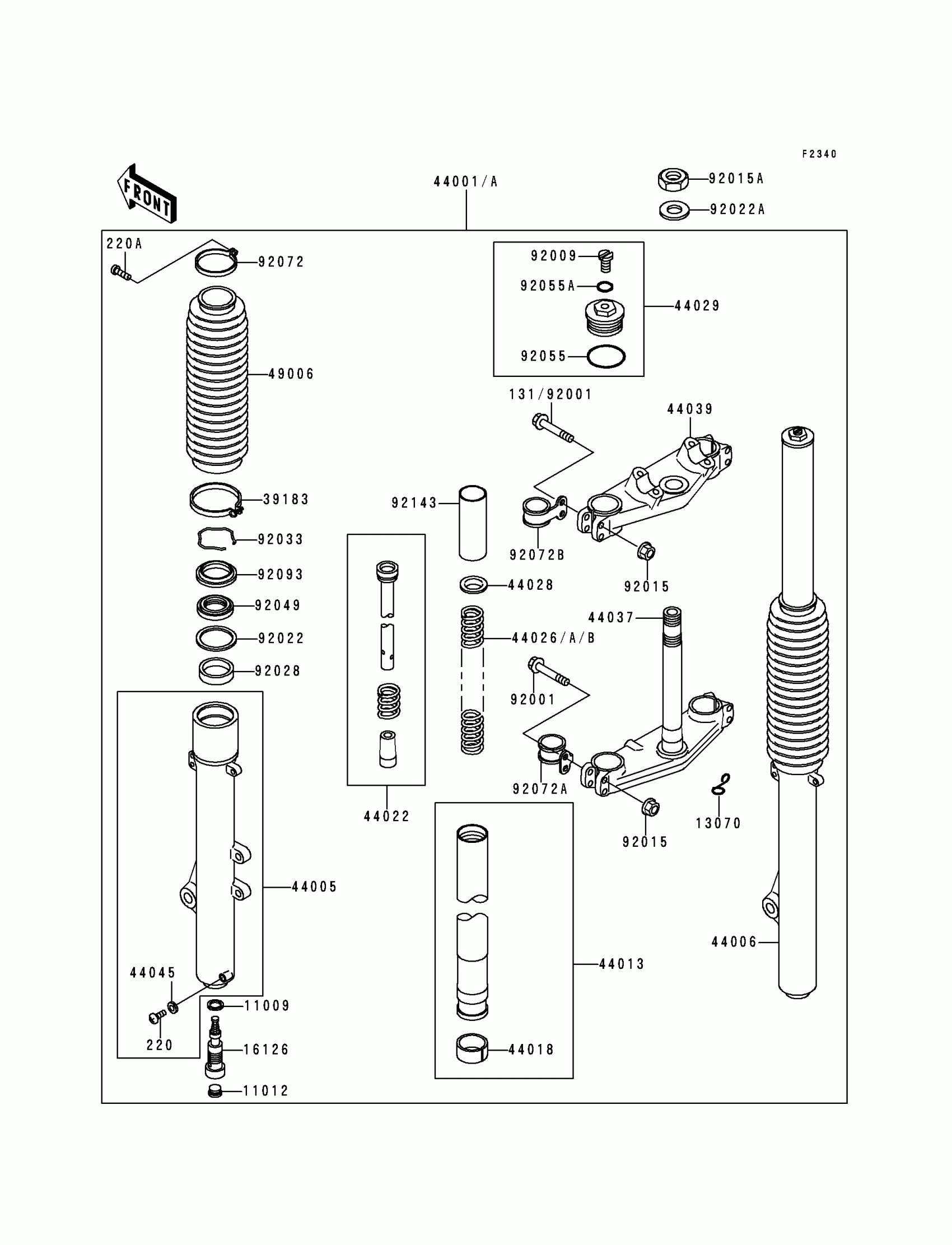

Kawasaki KDX200 Front Fork(KDX200-E4) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1324

$4.85

11012

CAP,FORK CYLINDER

11012-1381

$5.32

13070

GUIDE,CABLE

13070-1208

Unavailable

16126

VALVE,FORK CYLINDER

16126-1134

Unavailable

39183

BAND-ASSY,BOOT

39183-1051

Unavailable

44005

PIPE-LEFT FORK OUTER

44005-1286

$430.10

44006

PIPE-RIGHT FORK OUTER

44006-1300

$475.38

44013

PIPE-FORK INNER

44013-1300

Unavailable

44018

PISTON-FORK,INNER PIPE

44018-1056

$26.23

44022

CYLINDER-FORK

44022-1240

$150.36

44026

SPRING-FRONT FORK,K=0.30

44026-1401

$48.00

44026A

SPRING-FRONT FORK,K=0.29

44026-1430

$70.59

44026B

SPRING-FRONT FORK,K=0.31

44026-1431

$75.24

44028

GUIDE-FORK SPRING

44028-1010

$10.85

44029

SEAT-FORK SPRING

44029-1137

Unavailable

44037

HOLDER-FORK UNDER

44037-1248

$639.33

44039

HOLDER-FORK UPPER

44039-1154

Unavailable

44045

GASKET,FORK DRAIN PLUG

44045-002

$4.12

49006

BOOT,FORK,BLUE NO.32

49006-1184-GF

Unavailable

92009

SCREW

92009-1568

$5.74

92015

NUT,FLANGED,8MM

92015-1485

$4.46

92015A

NUT,STEERING STEM,22MM

92015-1653

$13.20

92022

WASHER

92022-1299

$6.82

92022A

WASHER,STEERING STEM

92022-1873

$5.93

92028

BUSHING

92028-1581

$20.21

92033

RING-SNAP

92033-1077

$3.94

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

$20.52

92055

RING-O

92055-1123

$4.93

92055A

RING-O,2.8X6.6X1.9

92055-1441

$3.45

92072

BAND,BOOT

92072-1078

$10.73

92072A

BAND,CABLE

92072-1205

Unavailable

92072B

BAND

92072-1246

$17.51

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW PAN HEAD 4X16

220B0416

Unavailable

92093

SEAL,FORK DUST

92093-1086

Unavailable

92143

COLLAR,FORK,L=110

92143-1328

Unavailable

44001

FORK-FRONT,BLUE NO.32

44001-1711-GF

$1,775.86

44001A

FORK-FRONT,BLUE NO.32

44001-1733-GF

Unavailable

92001

BOLT,FLANGED,8X55

92001-1639

$8.20

92001

BOLT,FLANGED,8X55

92001-1639

$8.20

131

BOLT-FLANGED

131G0850

Unavailable
