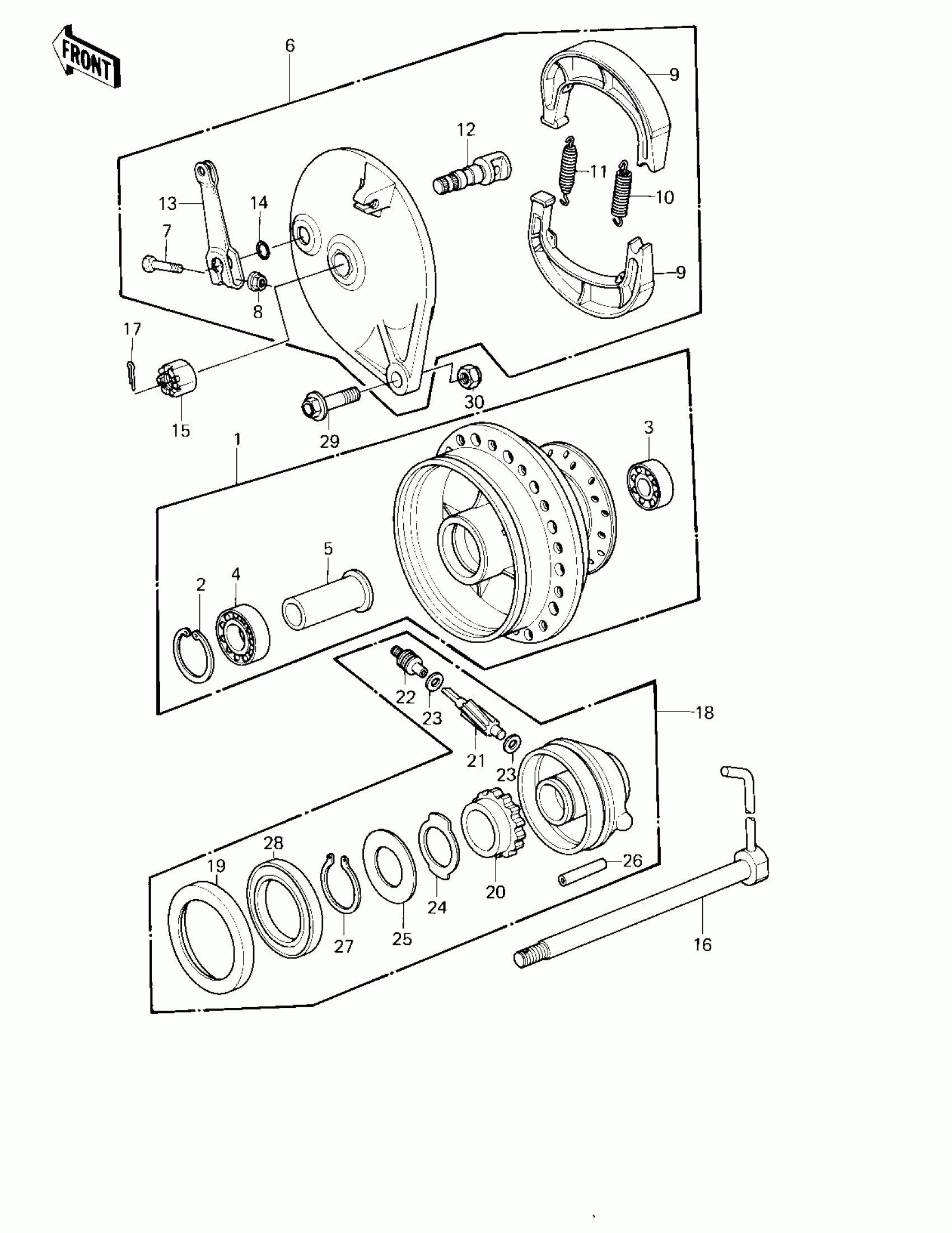

Kawasaki KDX175 FRONT HUB/BRAKE ('80 A1) Diagram

#

Description
Price

1

DRUM-ASSY,FR BRK

41034-1016

$411.43

2

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

3

BEARING-BALL,#6201LUC3/2A

601B6201U

$18.14

4

BEARING-BALL,#6301U

601B6301U

$30.00

5

COLLAR,FRONT BEARING

92027-1073

Unavailable

6

PANEL-ASY,FR BRK

41035-1030

$311.03

7

BOLT-UPSET

112G0630

Unavailable

8

NUT,FLANGED,6MM

92015-1078

Unavailable

9

SHOE,BRAKE

41048-015

Unavailable

10

SPRING,BRAKE SHOE

92081-1766

$6.13

11

SPRING,BRAKE SHOE

92081-1550

$9.20

12

CAM SHAFT,FR BRAKE

41050-1016

$21.51

13

LEVER,FR BRAKE CAM

41053-1018

$63.41

14

O RING,12MM

670B2012

$2.22

15

NUT-CASTLE

320G1200

Unavailable

16

AXLE,FRONT

41068-1042

$57.92

17

PIN,COTTER,3.2X28

550D3228

$2.27

18

CASE ASSY,SPEED GEAR

41078-009

$112.26

19

DUST COVER

41042-013

Unavailable

20

GEAR,SPEEDOMETER

41059-024

$37.43

21

GEAR-METER SCREW,8T

41060-015

Unavailable

22

BUSHING,SPEEDOMETER CABLE

41062-005

$18.66

23

WASHER,5.1X9X0.4

41063-001

$4.17

24

RECEIVER,SPEED GEAR

41064-011

$5.25

25

WASHER,19.5X26X0.8

41065-004

Unavailable

26

PIN,SPRING

41082-001

$3.53

27

CIRCLIP-TYPE-C,19MM

480J1900

$0.98

28

OIL SEAL

654A405208

Unavailable

29

BOLT,10X45

92001-1182

Unavailable

30

NUT,LOCK,10MM

92019-021

$4.59
