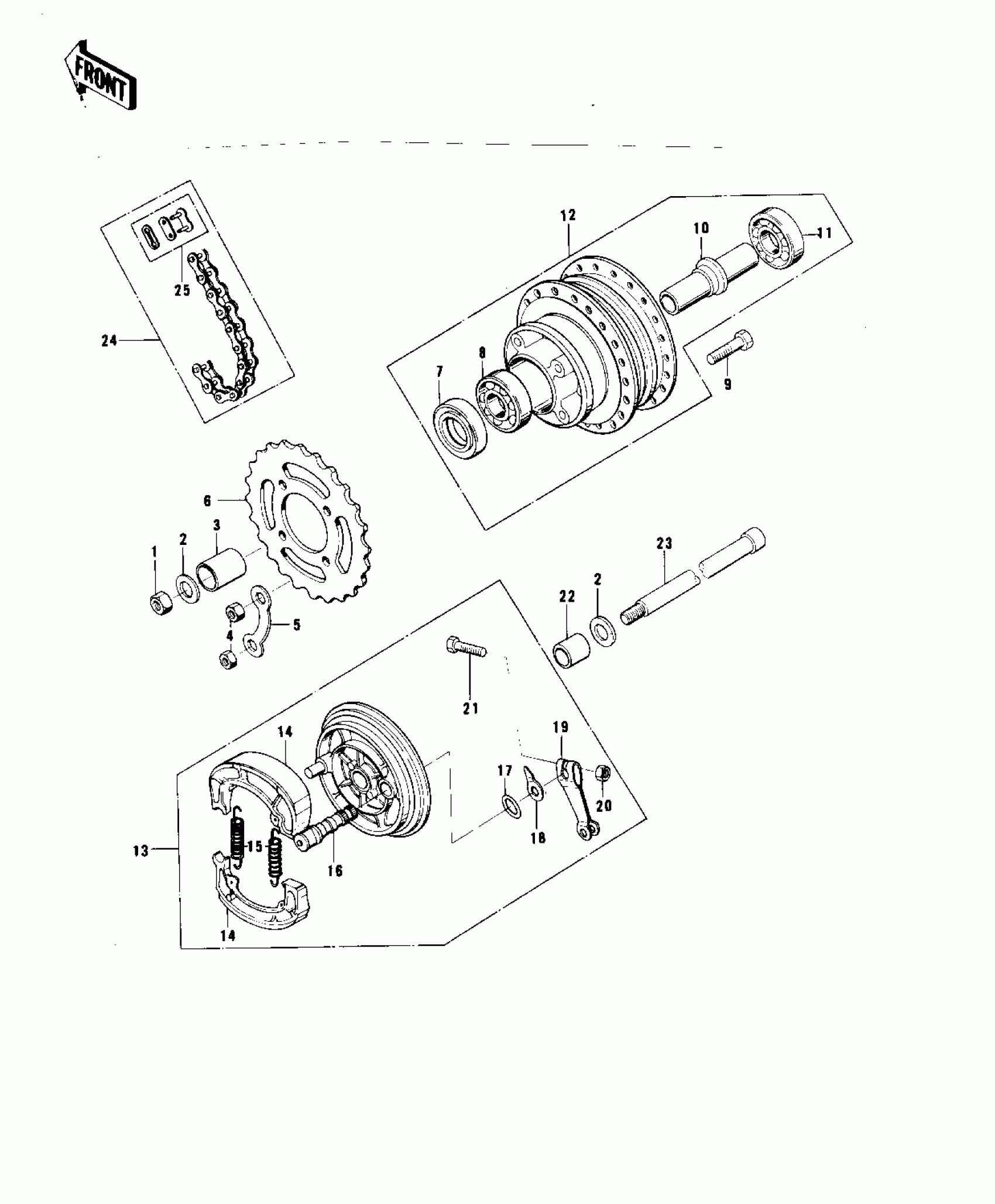

Kawasaki KD80 REAR HUB/BRAKE Diagram

#

Description
Price

1

NUT-HEX-FINE

314B1200

Unavailable

2

WASHER PLAIN 12MM

411B1200

Unavailable

3

COLLAR,REAR AXLE

42032-044

Unavailable

4

NUT,8MM

311B0800

Unavailable

5

WASHER RR SPRCKT LOCK

92088-003

Unavailable

6

REAR SPROCKET 36T

42041-022

$92.11

6

REAR SPROCKET 39T

42041-045

$55.57

6

REAR SPROCKET 34T

42041-019

$95.66

6

REAR SPROCKET 36T

42041-022

$92.11

7

OIL SEAL RR BRK DRUM

92052-001

Unavailable

8

BEARING BALL #6301

601B6301

Unavailable

9

BOLT REAR SPROCKET

92001-021

Unavailable

10

SPACER RR HUB BEARING

42010-003

Unavailable

11

BEARING BALL #6301Z

601B6301Z

Unavailable

12

DRUM-ASSY,RR BRK,BUFF

41034-1002-80

$295.74

13

PANEL-ASY,RR BRK,BUFF

42006-063-80

Unavailable

13

PANEL-ASY,RR BRK,BUFF

42006-063-80

Unavailable

14

SHOE-BRAKE

41048-1085

$20.89

14

SHOE-BRAKE

41048-1085

$20.89

15

SPRING,BRAKE SHOE

92081-1766

$6.39

16

CAM-BRAKE

42026-018

$34.51

17

RING-O,BRAKE CAM

92055-004

$4.25

18

INDICATOR,BRAKE SHOE

41085-003

$13.78

19

LEVER,REAR BRAKE PANL

42029-027

Unavailable

20

NUT,6MM

41072-007

$3.12

21

BOLT-UPSET

112G0630

Unavailable

22

COLLAR,REAR AXLE

42032-043

$1.80

23

AXLE,12X206

41068-1091

Unavailable

24

CHAIN,DRIVE,EK428 96L

92057-1089

$46.49

24

CHAIN,DRIVE,EK428 98L

92057-1092

$61.05

25

JOINT-CHAIN,EK428-G

92058-1014

$5.75
