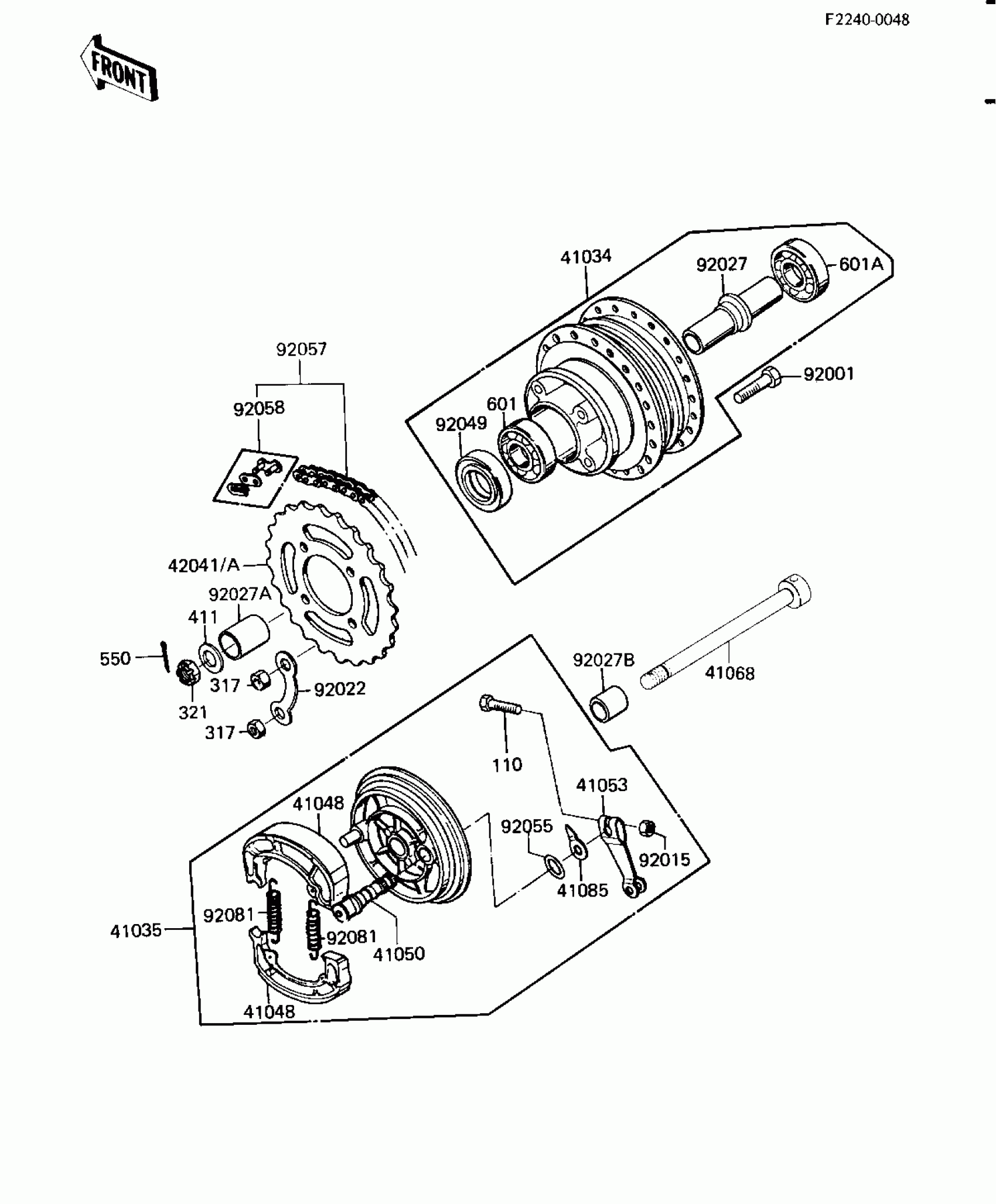

Kawasaki KD80 REAR HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

DRUM-ASSY,RR BRK,BUFF

41034-1002-80

$295.74

2

NUT,8MM

311B0800

Unavailable

2

NUT-HEX-SMALL,8MM

317B0800

Unavailable

3

SPACER RR HUB BEARING

42010-003

Unavailable

4

BEARING BALL #6301

601B6301

Unavailable

5

BEARING BALL #6301Z

601B6301Z

Unavailable

6

BOLT REAR SPROCKET

92001-021

Unavailable

7

OIL SEAL RR BRK DRUM

92052-001

Unavailable

8

WASHER RR SPRCKT LOCK

92088-003

Unavailable

9

NUT CASTLE 12MM

321B1200

$3.07

10

AXLE,12X206

41068-1091

Unavailable

11

WASHER PLAIN 12MM

411B1200

Unavailable

12

COLLAR-REAR HUB R.H

42032-002

Unavailable

13

COLLAR,REAR AXLE

42032-044

Unavailable

14

PIN-COTTER,3.0X25

550D3025

Unavailable

15

PANEL-ASY,RR BRK,BUFF

42006-063-80

Unavailable

16

BOLT-UPSET

112G0630

Unavailable

17

SHOE-BRAKE

41048-1085

$20.89

18

SPRING,BRAKE SHOE

92081-1766

$6.39

19

NUT,6MM

41072-007

$3.12

20

INDICATOR,BRAKE SHOE

41085-003

$13.78

21

CAM-BRAKE

42026-018

$34.51

22

LEVER,REAR BRAKE PANL

42029-027

Unavailable

23

RING-O,BRAKE CAM

92055-004

$4.25

24

REAR SPROCKET 39T

42041-045

$55.57

24

REAR SPROCKET 37T

42041-020

Unavailable

25

CHAIN,DRIVE,EK428 98L

92057-1092

$61.05

26

JOINT-CHAIN,EK428-G

92058-1014

$5.75
