1990 Kawasaki KD80 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

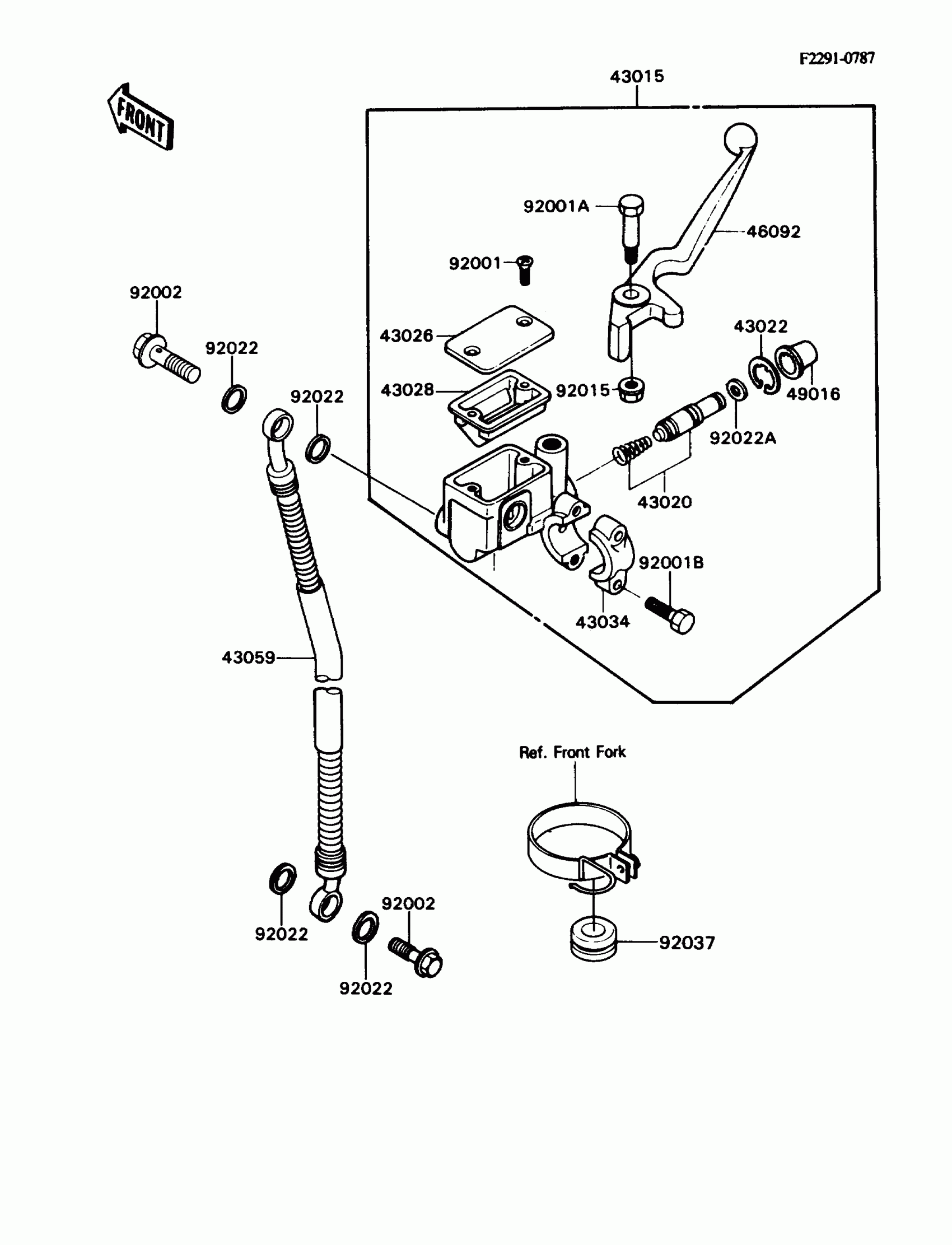

1990 Kawasaki KD80 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43015

1

$242.19

In stock

43020

PISTON-COMP-BRAKE

43020-1070

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE,MASTER CYLINDER

43026-1021

1
Out of stock

43028

1

$25.88

In stock

43034

1

$15.29

In stock

43059

HOSE-BRAKE,FR

43059-1459

1

$52.95

In stock

46092

1

$20.20

In stock

49016

1

$6.90

In stock

92001

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92001A

1

$11.26

In stock

92001B

BOLT,6X25,BLACK

92001-1729

1

$4.37

In stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92022A

WASHER

92022-1814

1
Out of stock

92037

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock
