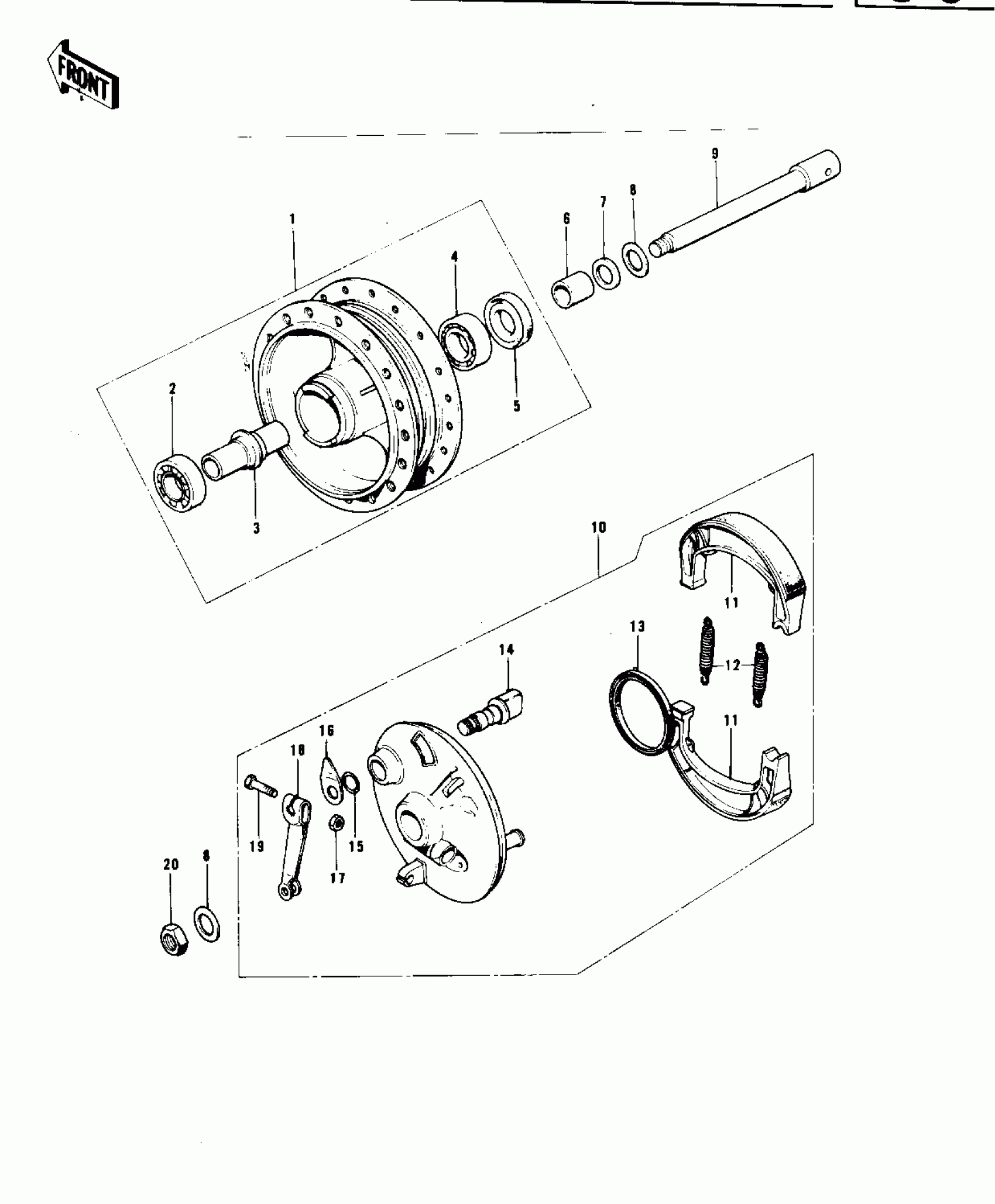

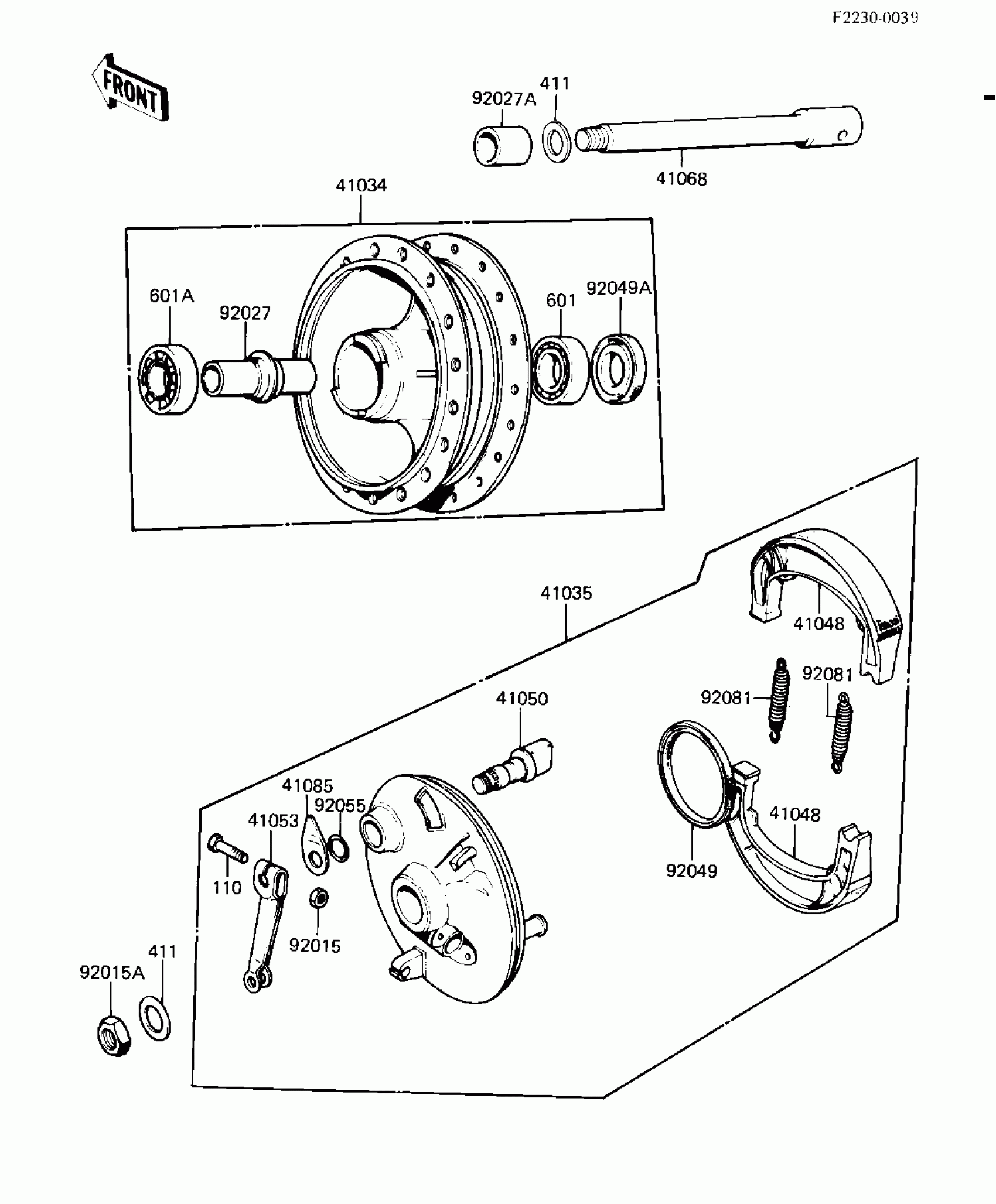

Kawasaki KD80 FRONT HUB/BRAKE Diagram

#

Description
Price

1

DRUM-ASSY,FR BRK

41034-1040

Unavailable

2

BEARING BALL #6300Z

601B6300Z

Unavailable

3

COLLAR,L=51

41039-002

$10.54

4

BEARING BALL #6200

601B6200

$14.07

5

SEAL-OIL,TC17317

92050-063

$14.53

6

COLLAR,L=13

41069-026

$12.47

7

DUST SHIELD FRNT DRUM

41042-002

Unavailable

8

WASHER-PLAIN,10MM

411B1000

Unavailable

9

AXLE,FR

41068-039

Unavailable

10

PANEL ASY,FR BK,BUFF

41035-060-80

$74.41

10

PANEL-ASY,FR BRK BUFF

41035-069-80

Unavailable

11

SHOE-BRAKE

41048-1085

$20.89

11

SHOE-BRAKE

41048-1085

$20.89

12

SPRING,BRAKE SHOE

92081-1766

$6.39

13

SEAL-OIL,BRAKE PANEL

92050-002

$13.88

14

CAM-BRAKE

41050-018

$21.98

15

RING-O,BRAKE CAM

92055-004

$4.25

16

INDICATOR,BRAKE SHOE

41085-008

$13.20

16

INDICATOR,BRAKE SHOE

41085-013

$13.78

17

NUT,6MM

41072-007

$3.12

18

LEVER-BRAKE CAM

41053-005

$12.24

19

BOLT-UPSET

112G0630

Unavailable

20

NUT,10MM

42045-005

$6.34
