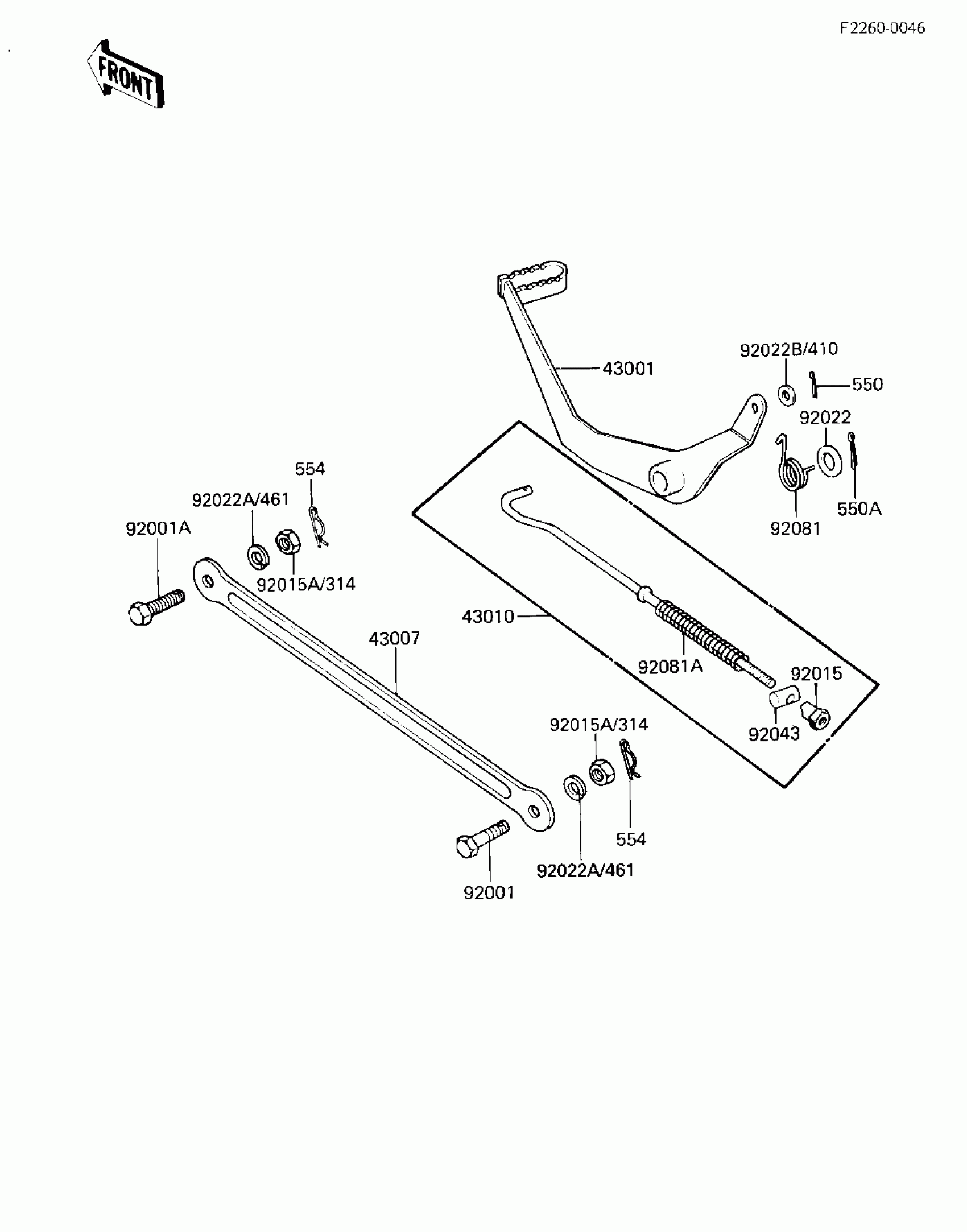

Kawasaki KD80 BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

43001

PEDAL,BRAKE

43001-062

Unavailable

43007

TORQUE LINK,RR BRAKE

43007-037

Unavailable

43010

ROD ASSY,REAR BRAKE

43010-5004

Unavailable

92001

BOLT,10X32

92003-003

$5.42

92001A

BOLT,10X25

92003-017

Unavailable

92015

NUT,BRAKE ROD

92015-042

$4.93

92015A

NUT,10MM

92015-1416

$4.25

92022

WASHER BRAKE PEDAL

92022-085

$3.53

92022A

WASHER,SPRING,10MM

92022-1540

$3.27

92022B

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

92043

PIN,BRAKE ROD

92043-039

$5.06

92081

SPRING-BRAKE PEDAL

43005-020

Unavailable

92081A

SPRING,BRAKE ROD

43012-001

$3.69

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,3.0X30

550D3030

$2.08

554

PIN-SNAP,8MM

554A0800

Unavailable
