1979 Kawasaki KD175-A4 Ignition/generator Diagram

← All diagrams

Find the part on the Ignition/generator diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

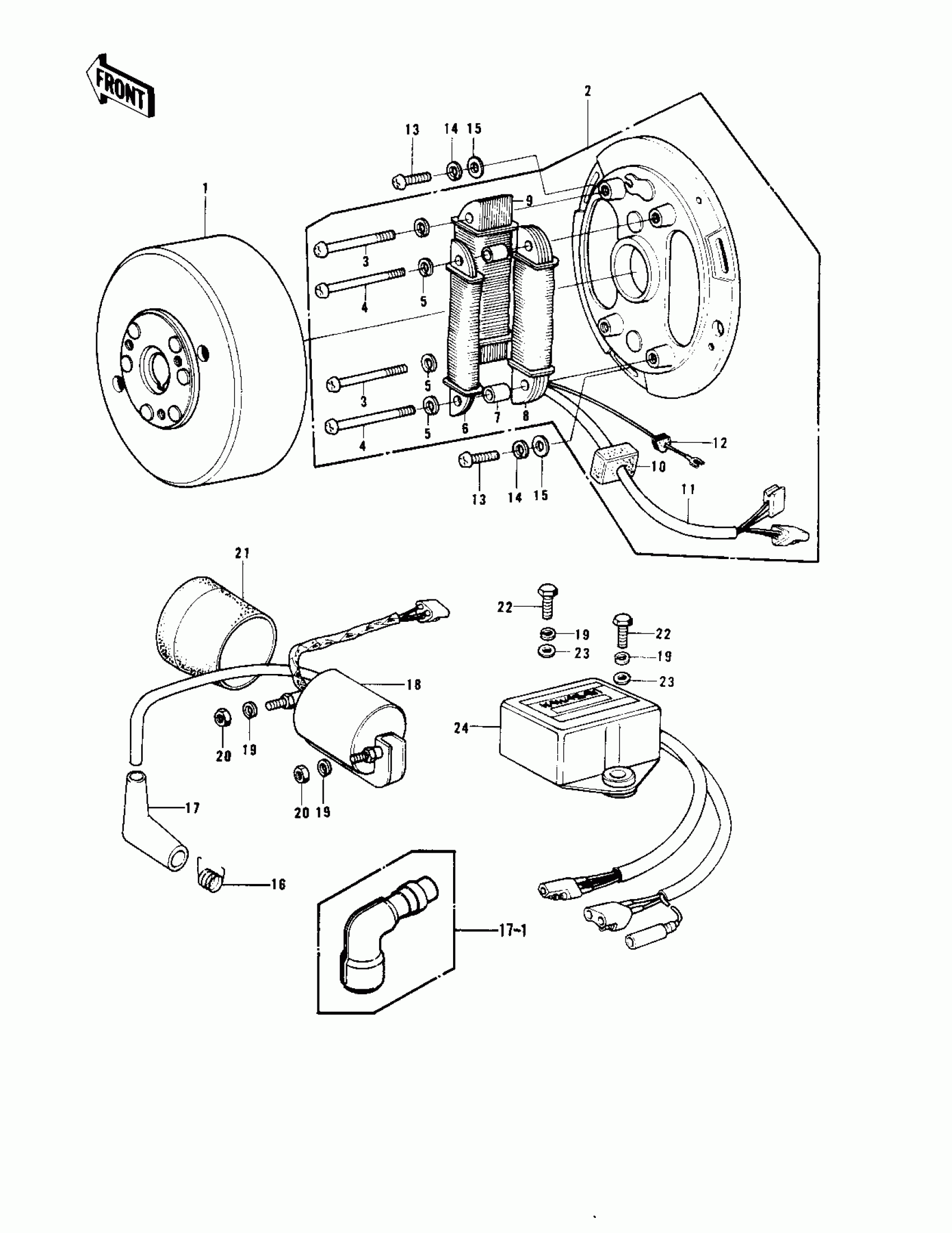

1979 Kawasaki KD175-A4 Ignition/generator Diagram

#

Description
Price
Status
Order Qty

1

FLYWHEEL

21050-023

$457.30

In stock

2

STATOR ASSY

21003-034

Out of stock

3

SCREW-PAN-CROS

220E0430

Out of stock

4

SCREW-PAN HEAD,4X35

220E0435A

Out of stock

5

WASHER SPRING 4MM

461F0400

Out of stock

6

COIL,PULSER

21157-002

Out of stock

7

COLLAR

21033-002

$2.41

In stock

8

COIL

21049-019

Out of stock

9

COIL

21047-031

$91.59

In stock

10

$7.03

In stock

11

WIRING HARNESS,MAG

21029-036

$43.29

In stock

12

GROMMET WIRING HARN C

21017-005

Out of stock

13

SCREW-PAN-CROS

220B0520

$0.71

In stock

14

WASHER SPRING 5MM

461F0500

Out of stock

15

WASHER-PLAIN,5MM

411B0500

Out of stock

16

$1.44

In stock

17

CAP-SPARK PLUG

21130-009

$20.48

In stock

17-1

CAP-ASSY-PLUG

21160-005

$52.69

In stock

18

COIL-IGNITION

21121-039

Out of stock

19

WASHER SPRING 6MM

461F0600

Out of stock

20

NUT 6MM

311B0600

Out of stock

21

RUBBER CAP-COIL

92073-016

$6.88

In stock

22

$4.61

In stock

23

WASHER PLAIN

92022-024

$2.92

In stock

24

IGNITION UNIT

21119-028

$566.28

In stock

24

IGNITION UNIT

21119-028

$566.28

In stock
