1979 Kawasaki KD175-A4 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1979 Kawasaki KD175-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

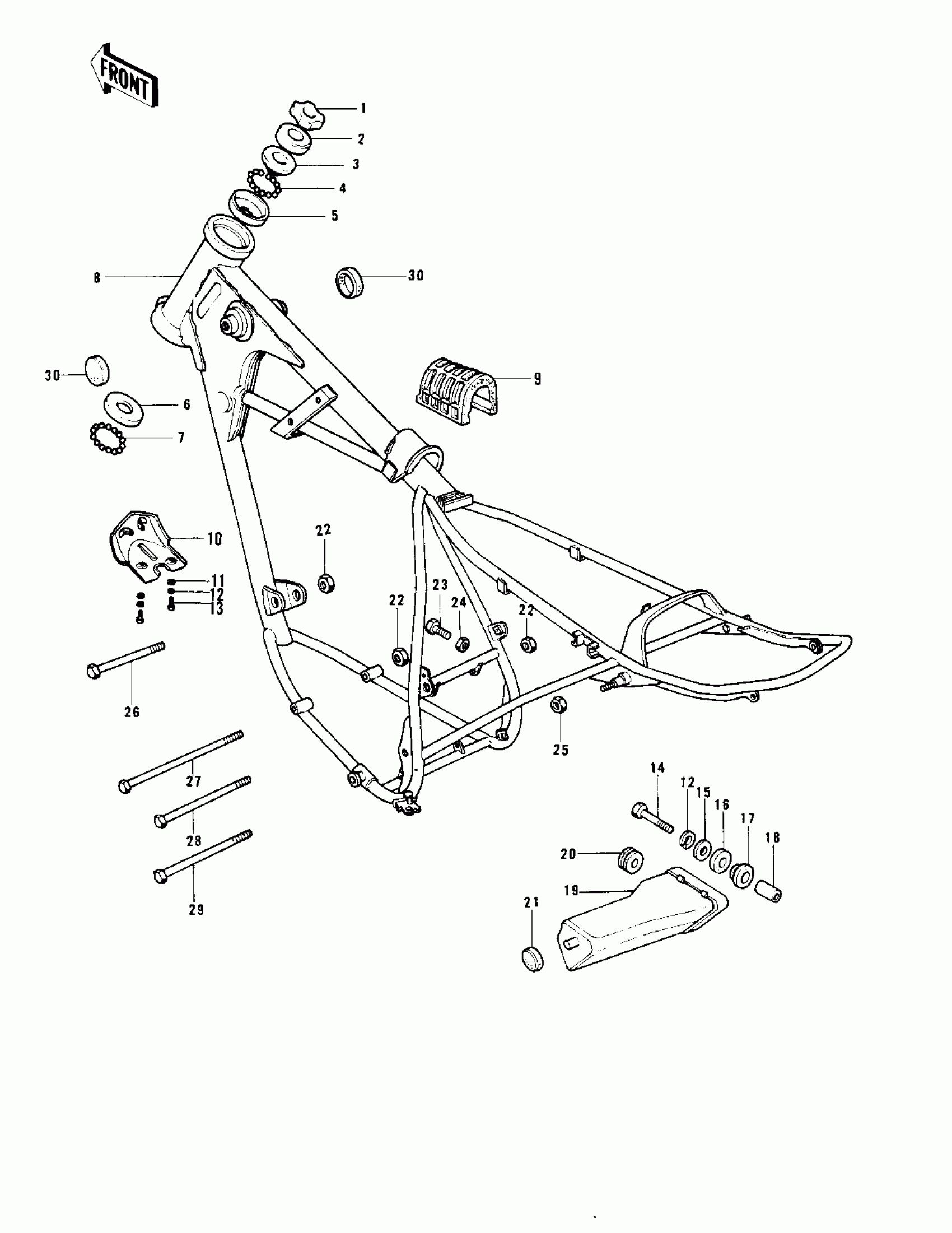

1979 Kawasaki KD175-A4 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

NUT,STEERING LOCK,25MM

92090-022

Out of stock

2

CAP,STEERING STEM

46098-012

Out of stock

3

RACE,STEERING STEM BEARING

92047-014

Out of stock

4

BALL-STEEL,3/16

600A0600

Out of stock

5

RACE,STEERING STEM BEARING

92048-009

Out of stock

6

RACE,STEERING STEM BEARING,LWR

92048-005

Out of stock

7

BALL-STEEL,1/4

600A0800

Out of stock

8

FRAME

32002-145

Out of stock

8

FRAME

32002-1081

Out of stock

9

DAMPER,FUEL TANK

92075-284

Out of stock

10

GUARD,ENGINE

55011-023

Out of stock

11

WASHER,6.5X20X1.6

92022-125

Out of stock

12

WASHER SPRING 6MM

461F0600

Out of stock

13

BOLT-UPSET,6X16

112G0616

Out of stock

14

BOLT-UPSET

112G0625

Out of stock

15

WASHER,7X24X1.6

92022-228

Out of stock

15

WASHER,6.5X20X1.6

92022-125

Out of stock

16

DAMPER,FEMALE

92075-175

Out of stock

17

RUBBER,FENDER COVER

92075-174

Out of stock

18

COLLAR

92027-241

Out of stock

19

CASE,TOOL

32098-022

Out of stock

20

DAMPER RUBBER-OIL TNK

92075-150

Out of stock

21

DAMPER RUBBER

92075-107

Out of stock

22

NUT,LOCK,10MM

92019-021

Out of stock

23

BOLT 6X22

112B0622

Out of stock

23

BOLT-HEX HEAD,6X32

110N0632

Out of stock

24

NUT 6MM

311B0600

Out of stock

25

NUT-LOCK,12MM

92019-009

Out of stock

26

BOLT,FLANGED,10X70

92001-1618

Out of stock

26

BOLT,FLANGED,10X70

92001-1618

Out of stock

27

BOLT,FLANGED,10X220

92002-1197

Out of stock

28

BOLT,HEX HEAD,10X120

92001-1247

Out of stock

28

BOLT,HEX HEAD,10X120

92001-1247

Out of stock

29

BOLT,HEX HEAD,12X115

113B12115

Out of stock

30

DAMPER,FUEL TANK

92075-101

Out of stock
