Find the part on the Handlebar diagram for your 1979 Kawasaki KD125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

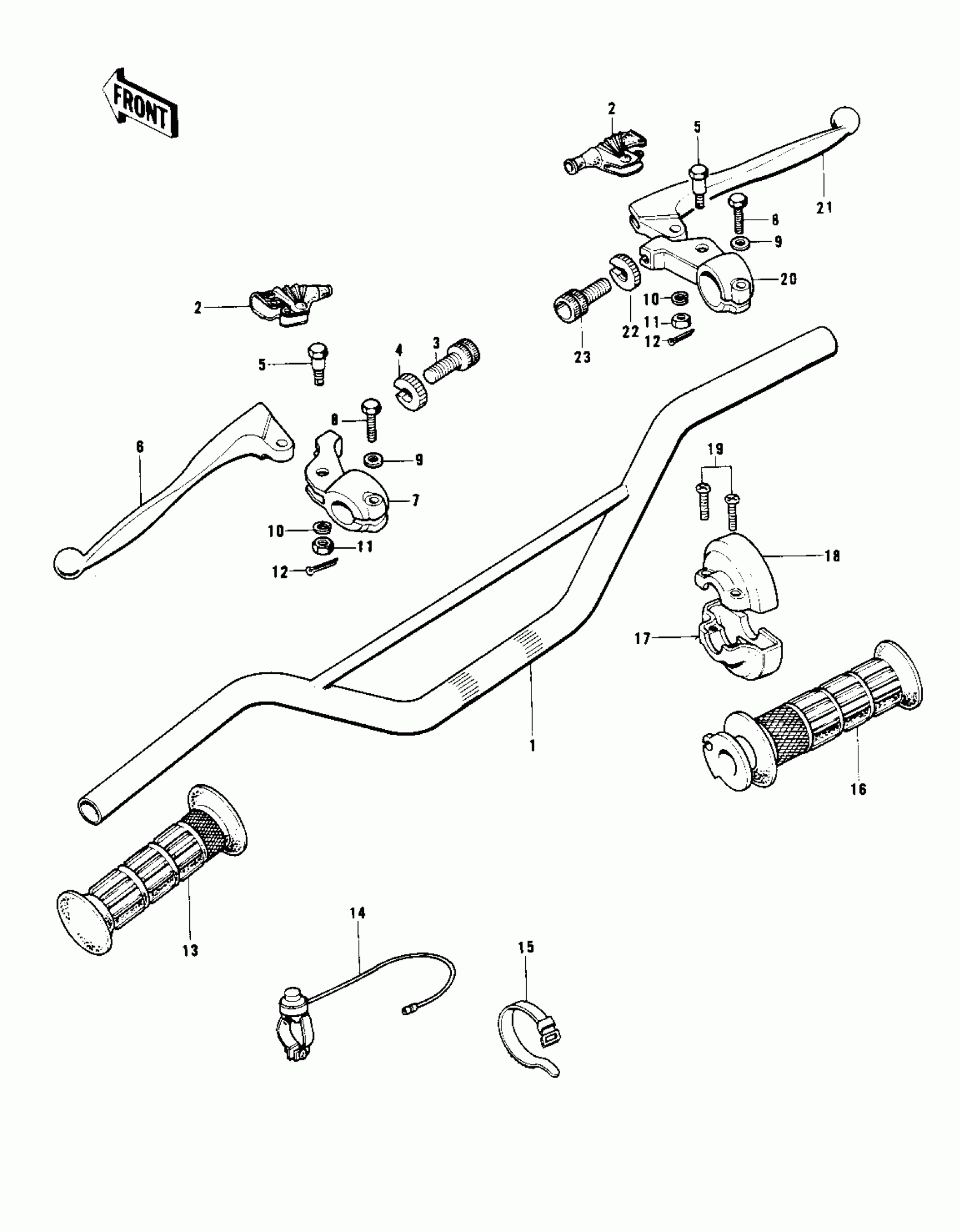

1979 Kawasaki KD125-A5 Handlebar Diagram

#

Description
Price
Status
Order Qty

1

HANDLEBAR

46004-028

Out of stock

2

BOOT,LEVER HOLDER

49006-1017

$14.71

In stock

3

$14.99

In stock

4

$7.04

In stock

5

BOLT,HEX HEAD,6MM

92001-140

Out of stock

6

LEVER, CLUTCH

46092-021

Out of stock

7

HOLDER,CLUTCH LEVER

46094-014

Out of stock

8

BOLT,6X22

110N0622

Out of stock

9

WASHER PLAIN 6MM

411B0600

Out of stock

10

WASHER SPRING 6MM

461F0600

Out of stock

11

NUT CASTLE

320B0600

Out of stock

12

$2.08

In stock

13

RUBBER,L.H GRIP

46075-025

Out of stock

14

SWITCH,ASSY,ENG STOP

27010-1018

Out of stock

15

BAND,L=123

92072-030

$3.97

In stock

16

GRIP ASSY,THROTTLE

46019-033

$83.12

In stock

17

CASE,R.H LOWER

46023-018

$30.15

In stock

18

CASE,R.H UPPER

46041-022

$29.08

In stock

19

SCREW PAN HEAD 5X20

220E0520

Out of stock

20

HOLDER,FR BRAKE LEVER

46060-010

Out of stock

21

FRONT BRAKE LEVER

46058-018

$58.85

In stock

22

NUT,CABLE ADJUST

46056-006

$8.71

In stock

23

SCREW,CABLE ADJUST

46055-010

$29.42

In stock
