1979 Kawasaki KD125-A5 Frame/frame Fittings Diagram

← All diagrams

Find the part on the Frame/frame Fittings diagram for your 1979 Kawasaki KD125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

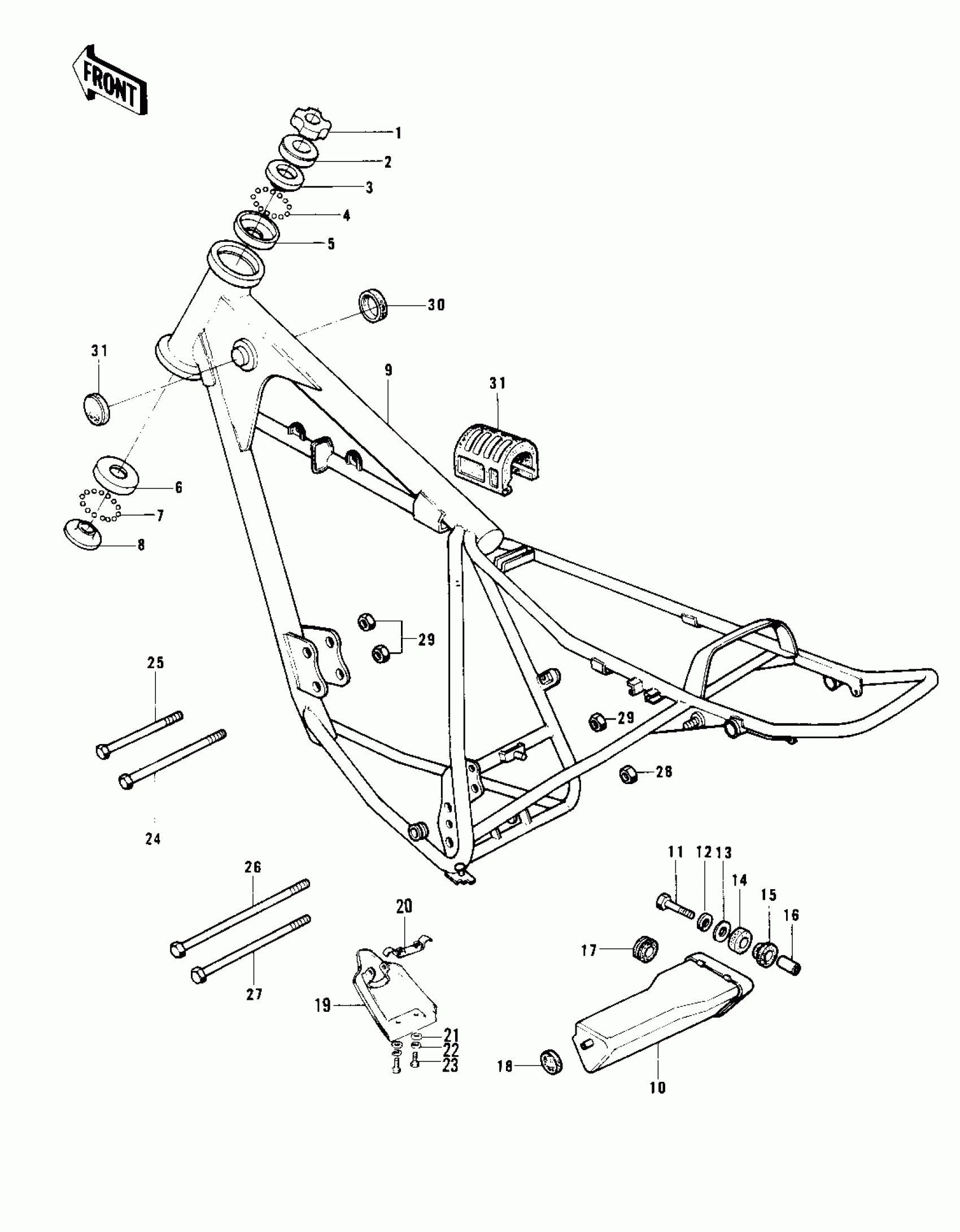

1979 Kawasaki KD125-A5 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

NUT,STEERING LOCK,25MM

92090-022

Out of stock

2

CAP,STEERING STEM

46098-012

Out of stock

3

RACE,STEERING STEM BEARING

92047-014

Out of stock

4

BALL-STEEL,3/16

600A0600

Out of stock

5

RACE,STEERING STEM BEARING

92048-009

Out of stock

6

RACE,STEERING STEM BEARING

92047-010

Out of stock

7

BALL-STEEL,1/4

600A0800

Out of stock

8

RACE,STEERING STEM BEARING,LWR

92048-005

Out of stock

9

FRAME

32002-099

Out of stock

10

CASE,TOOL

32098-022

Out of stock

11

BOLT-UPSET

112G0625

Out of stock

12

WASHER SPRING 6MM

461F0600

Out of stock

13

WASHER,7X24X1.6

92022-228

Out of stock

14

DAMPER,FEMALE

92075-175

Out of stock

15

RUBBER,FENDER COVER

92075-174

Out of stock

16

COLLAR,6.8X10X12

92027-162

Out of stock

17

DAMPER RUBBER-OIL TNK

92075-150

Out of stock

18

DAMPER RUBBER

92075-107

Out of stock

19

GUARD,ENGINE

55011-020

Out of stock

20

BRACKET,ENGINE GUARD

55016-008

Out of stock

21

WASHER,6.5X20X1.6

92022-125

Out of stock

22

WASHER SPRING 6MM

461F0600

Out of stock

23

BOLT-UPSET,6X16

112G0616

Out of stock

24

BOLT,HEX HEAD,8X65

110B0865

Out of stock

24

BOLT,FLANGED,8X70

92001-1583

Out of stock

25

BOLT,HEX HEAD,8X65

110B0865

Out of stock

26

BOLT,HEX HEAD,10X130

92001-1249

Out of stock

26

BOLT,HEX HEAD,10X130

92001-1249

Out of stock

27

BOLT,HEX HEAD,10X117

92001-1246

Out of stock

27

BOLT,HEX HEAD,10X117

92001-1246

Out of stock

27

BOLT,FLANGED,10X115

92001-1603

Out of stock

27

BOLT,FLANGED,10X115

92001-1603

Out of stock

28

NUT,10MM

92015-1429

Out of stock

29

NUT,LOCK,8MM

92017-013

Out of stock

30

DAMPER,FUEL TANK

92075-101

Out of stock

31

DAMPER RUBBER,FL TNK

92075-215

Out of stock

31

DAMPER,FUEL TANK

92075-284

Out of stock
