1979 Kawasaki KD125-A5 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1979 Kawasaki KD125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

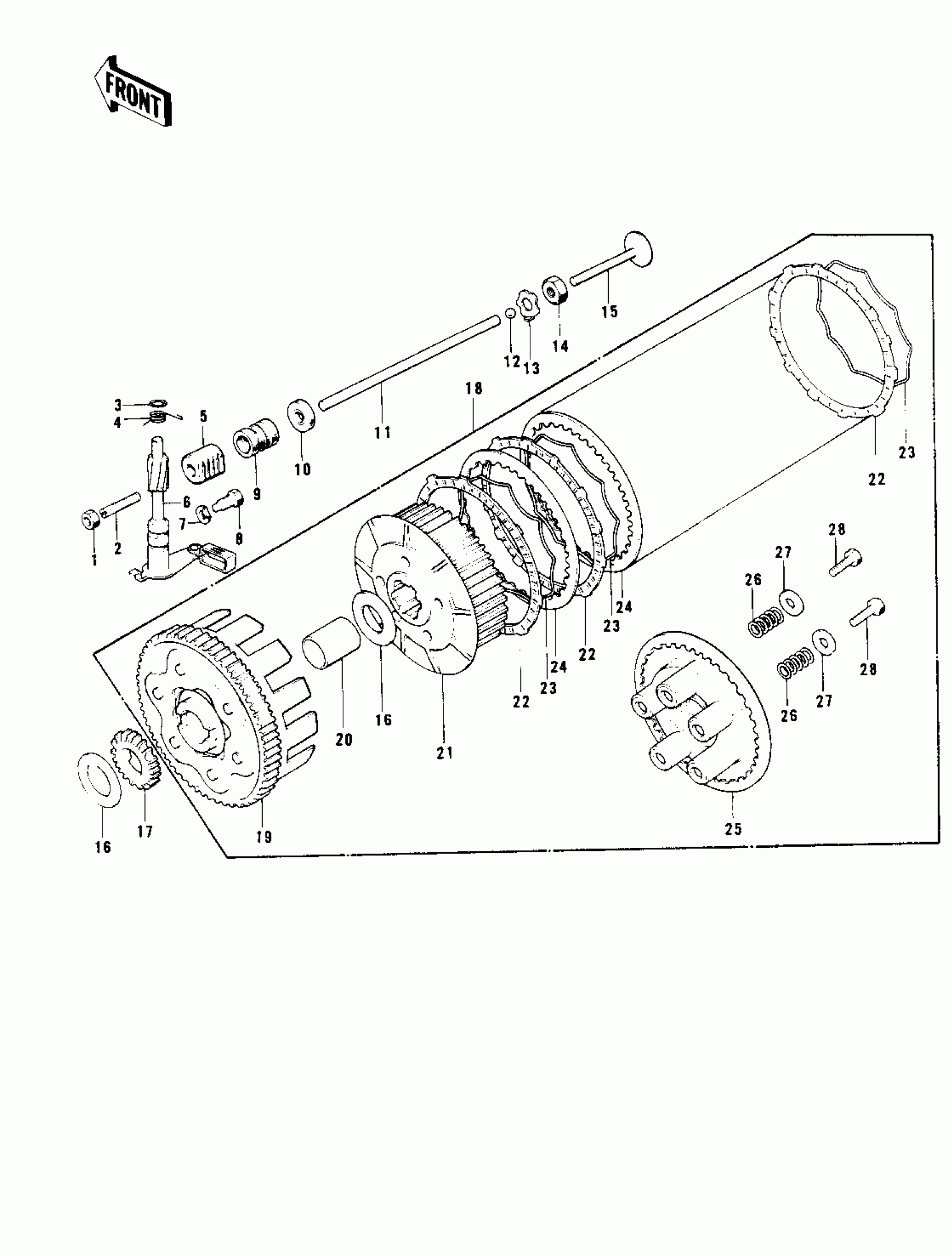

1979 Kawasaki KD125-A5 Clutch Diagram

#

Description
Price
Status
Order Qty

1

NUT 6MM

311B0600

Out of stock

2

SCREW,SLOTTED,6X26

92014-015

Out of stock

3

O RING,10MM

670B2010

$1.31

In stock

4

SPRING,CLUTCH RELESE

92083-024

Out of stock

5

ROD,CLTCH RELESE PUSH

13116-026

Out of stock

6

SHAFT ASY,CLTCH RELES

13234-003

Out of stock

7

WASHER,LOCK

92031-009

$4.08

In stock

8

BOLT,CLUTCH RELEASE

92003-130

Out of stock

9

COLLAR

92027-207

Out of stock

10

OIL SEAL,PUSH ROD

92050-058

Out of stock

11

ROD,CLUTCH PUSH,LONG

13116-027

Out of stock

12

BALL-STEEL,7/32"

600A0700

$1.44

In stock

13

WASHER-LOCK,14MM

92024-046

Out of stock

14

NUT-HEX-FINE,14MM

315B1400

Out of stock

15

PUSHER-CLTCH SPRG PLT

13116-016

Out of stock

16

WASHER,17.3X30X1.4

92022-270

Out of stock

17

PINION,KICKSTARTER

13075-010

Out of stock

18

CLUTCH-ASSY

13081-1053

Out of stock

19

HOUSING CLUTCH

13095-1034

Out of stock

20

BUSHING,CLUTCH

92028-138

$28.77

In stock

21

HUB,CLUTCH

13087-038

Out of stock

22

PLATE-FRICTION

13088-1015

$19.58

In stock

23

RING-CLUTCH STEEL

13229-002

Out of stock

24

PLATE CLUTCH STEEL

13089-003

$11.25

In stock

25

PLATE-CLUTCH SPRING

13187-004

Out of stock

26

SPRING,CLUTCH

92081-123

Out of stock

27

WASHER-PLAIN,5MM

92022-167

Out of stock

28

BOLT,5X18

92003-078

Out of stock
