1979 Kawasaki KD100-M4 Front Hub/brake Diagram

← All diagrams

Find the part on the Front Hub/brake diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

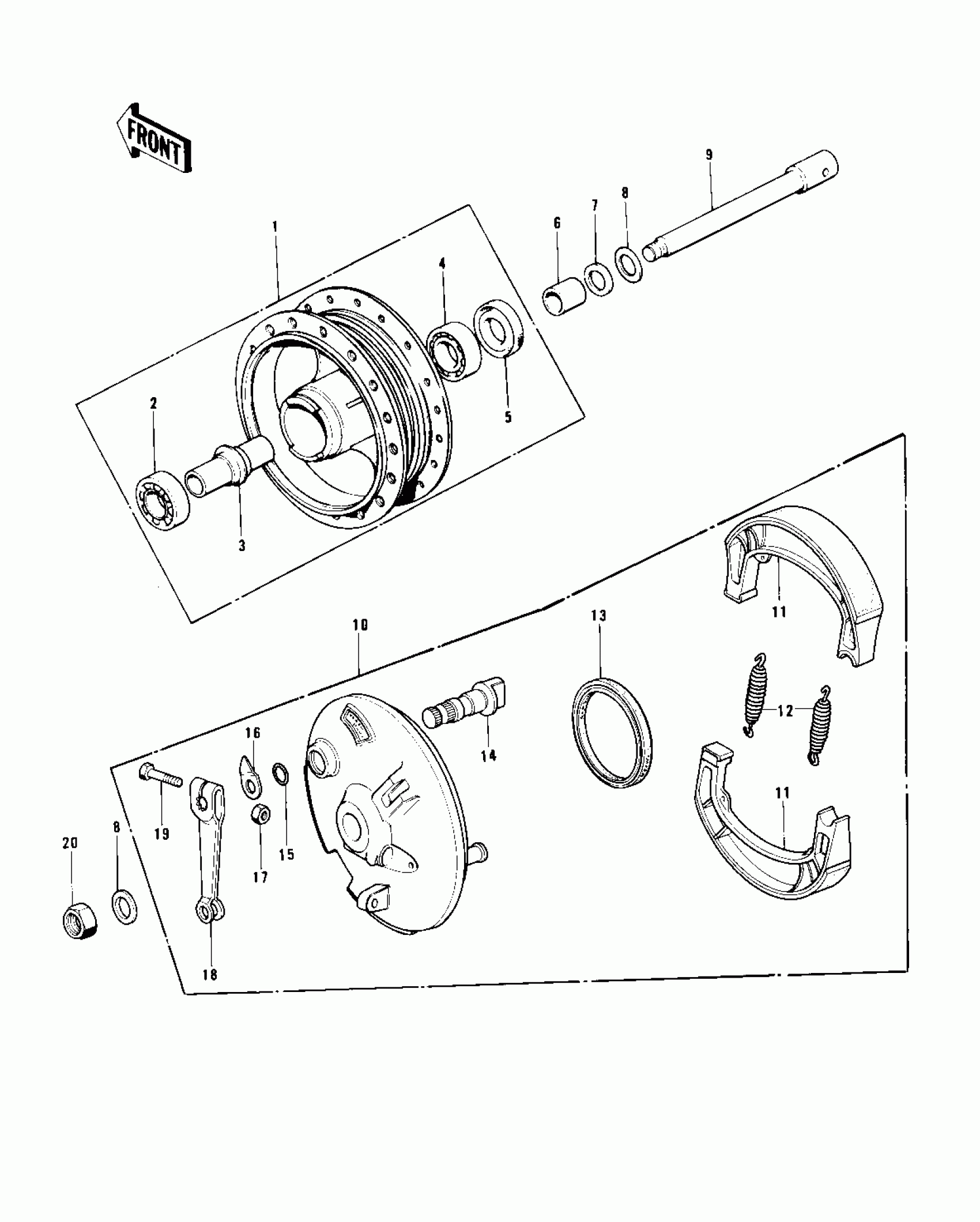

1979 Kawasaki KD100-M4 Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1

DRUM-ASSY,FR BRK

41034-1040

Out of stock

2

BEARING BALL #6300Z

601B6300Z

Out of stock

3

COLLAR,L=51

41039-002

$10.54

In stock

4

$14.07

In stock

5

SEAL-OIL,TC17317

92050-063

Out of stock

6

COLLAR,L=13

41069-026

$12.47

In stock

7

DUST SHIELD FRNT DRUM

41042-002

Out of stock

8

WASHER-PLAIN,10MM

411B1000

Out of stock

9

AXLE,FR

41068-039

Out of stock

10

PANEL-ASY,FR BRK BUFF

41035-069-80

Out of stock

11

SHOE-BRAKE

41048-1085

$20.89

In stock

12

SPRING,BRAKE SHOE

92081-1766

$6.39

In stock

13

SEAL-OIL,BRAKE PANEL

92050-002

Out of stock

14

CAM-BRAKE

41050-018

$21.98

In stock

15

RING-O,BRAKE CAM

92055-004

Out of stock

16

$13.78

In stock

17

NUT,6MM

41072-007

$3.12

In stock

18

LEVER-BRAKE CAM

41053-005

$12.24

In stock

19

BOLT-UPSET

112G0630

Out of stock

20

NUT,10MM

42045-005

$6.34

In stock
