1979 Kawasaki KD100-M4 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

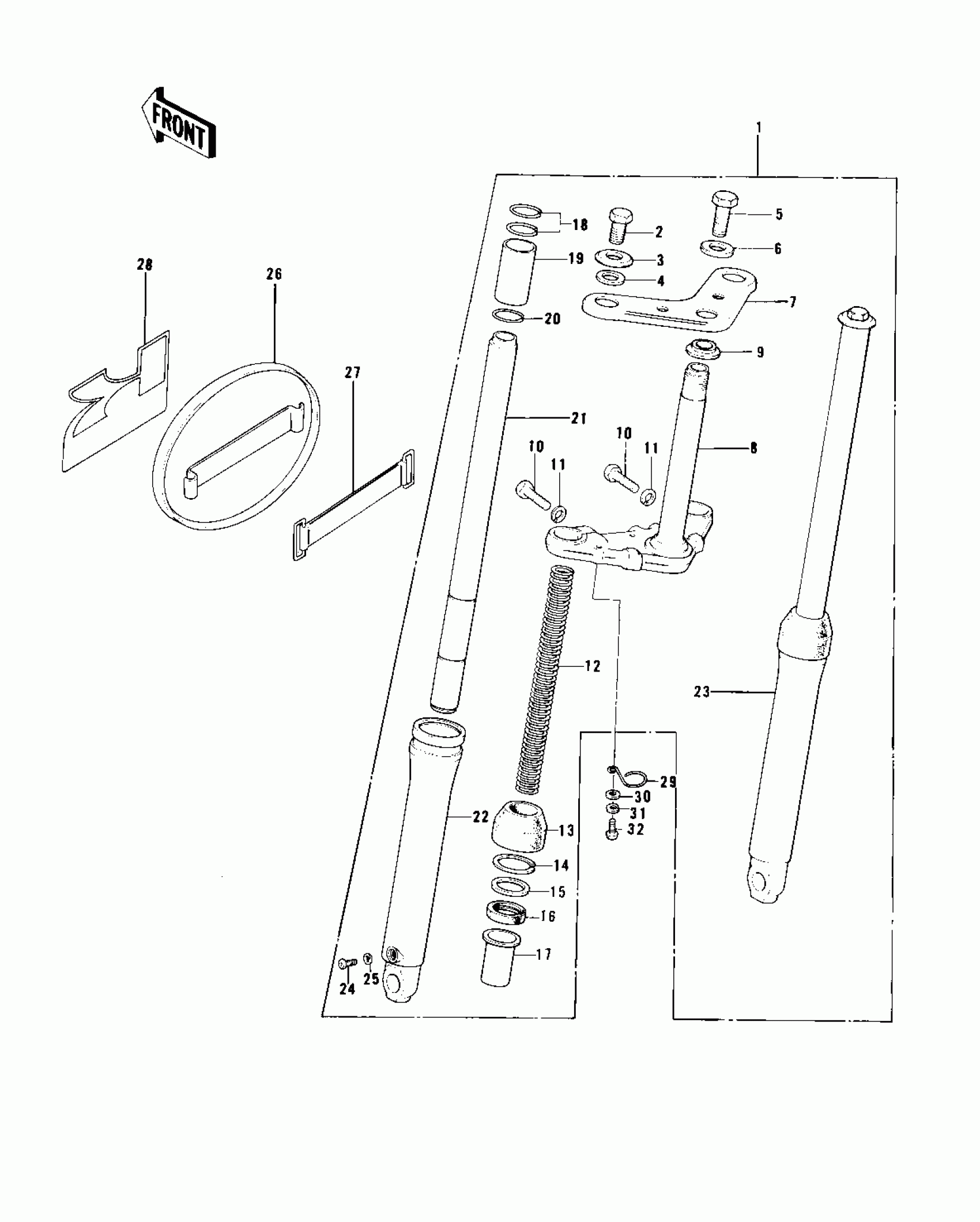

1979 Kawasaki KD100-M4 Front Fork Diagram

#

Description
Price
Status
Order Qty

1

FORK-FRONT

44001-161

Out of stock

2

BOLT

92001-1742

$18.37

In stock

3

WASHER

92022-1381

$9.15

In stock

4

GASKET,FORK TOP BOLT

44045-053

Out of stock

5

BOLT,HEX HEAD 10X35

92001-1252

Out of stock

6

WASHER

92022-1381

$9.15

In stock

7

HEAD,STEERING

44039-056

Out of stock

8

STEM,STEERING

44037-069

$224.02

In stock

9

RACE,LOWER BEARING

92047-004

Out of stock

10

BOLT,HEX HEAD 10X35

92001-1252

Out of stock

11

WASHER SPRING 10MM

461F1000

Out of stock

12

SPRING,FORK INNER

44026-051

Out of stock

13

DUST SHIELD,FORK

44010-024

Out of stock

14

CIRCLIP,40MM

44044-016

$9.02

In stock

15

WASHER,FORK OUTER TUB

44043-054

Out of stock

16

SEAL-OIL,OUTER TUBE

92049-1075

Out of stock

17

GUIDE,FORK INNER TUBE

44015-016

Out of stock

18

RING,INNER TUBE GUIDE

44020-003

Out of stock

19

PISTON,FORK

44018-007

$14.07

In stock

20

CIRCLIP,FORK PISTON

44044-017

Out of stock

21

TUBE,FORK INNER

44013-051

Out of stock

22

TUBE,LH,FORK OUTER

44005-052

Out of stock

23

TUBE,RH,FORK OUTER

44006-050

Out of stock

24

$1.46

In stock

25

GASKET,FORK DRAIN PLUG

44045-046

Out of stock

26

PLATE,FRONT NUMBER

58029-025

Out of stock

27

BAND,L=142.1

92072-006

$10.11

In stock

28

EMBLEM,NUMBER PLATE

56018-243

Out of stock

29

CLAMP,CABLE

92037-046

$4.41

In stock

30

WASHER PLAIN 6MM

411B0600

Out of stock

31

WASHER SPRING 6MM

461F0600

Out of stock

32

BOLT-UPSET,6X12

112G0612

Out of stock
