1979 Kawasaki KD100-M4 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

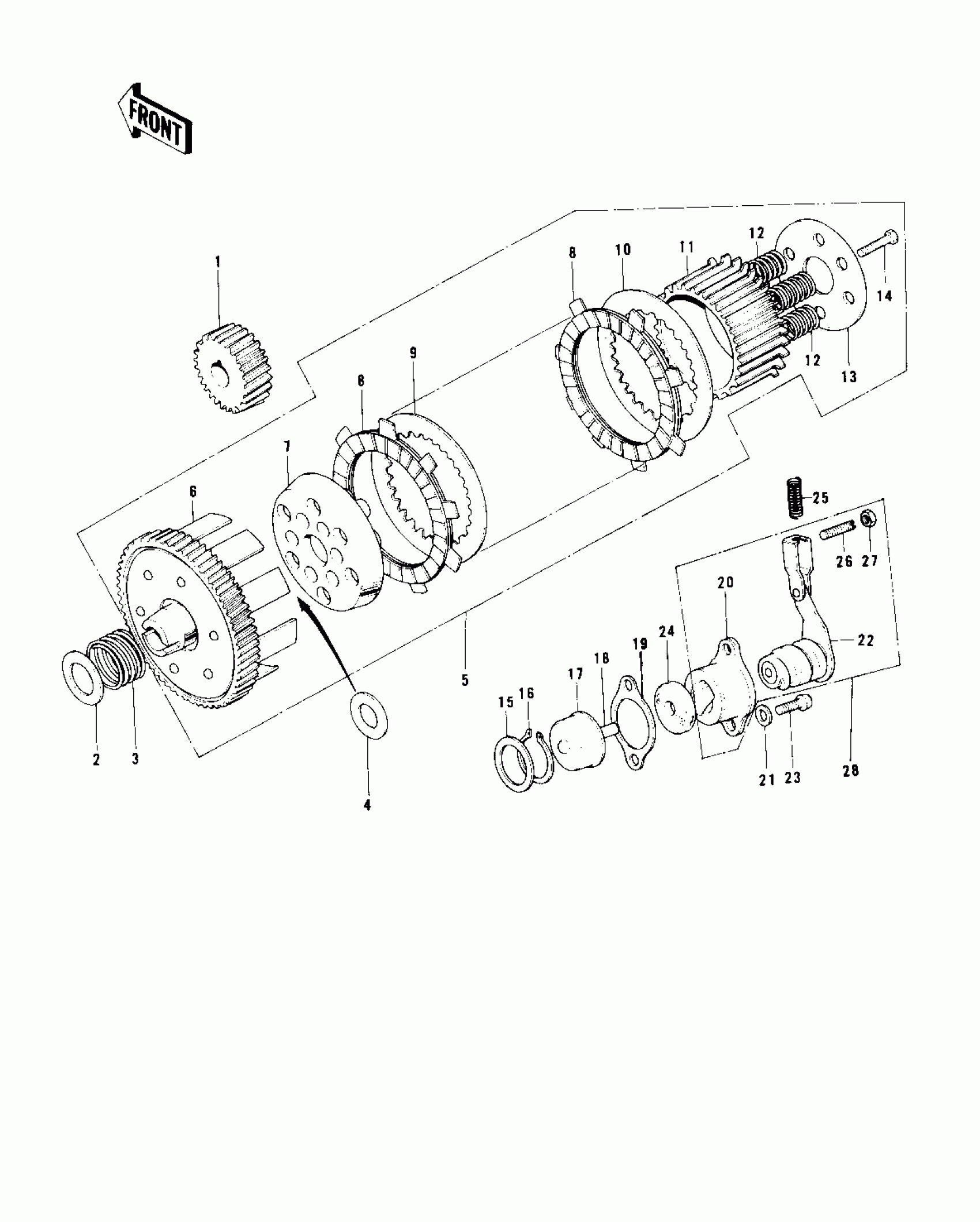

1979 Kawasaki KD100-M4 Clutch Diagram

#

Description
Price
Status
Order Qty

1

PINION,PRIMARY

13121-032

$95.91

In stock

2

WASHER,25.5X36X1

92022-057

$3.92

In stock

3

SPRING,CLUTCH DAMPER

92081-015

Out of stock

4

WASHER,16.5X27X1.4

92022-054

$8.03

In stock

5

CLUTCH-ASSY

13081-028

Out of stock

6

HOUSING-COMP-CLUTCH

13095-022

Out of stock

7

SHAFT,KICKSTARTER

13066-1007

Out of stock

8

PLATE-FRICTION

13088-1103

Out of stock

9

PLATE-CLUTCH,STEEL

13089-1009

$11.12

In stock

10

PLATE CLUTCH OUTER

13090-004

Out of stock

11

HUB-CLUTCH

13087-1011

$92.86

In stock

12

SPRING,CLUTCH

92081-012

$5.44

In stock

13

$17.20

In stock

14

BOLT-UPSET

112G0516

Out of stock

15

WASHER,THRUST,16.5X21X0.8

92022-053

Out of stock

16

$3.43

In stock

17

PUSHER-COMP-CLUTCH

13113-003

Out of stock

18

PIN,DOWEL,7X20

92042-043

$4.34

In stock

19

GASKET,CLUTCH RELEASE

11060-1197

Out of stock

20

RELEASE-ASSY-CLUTCH

13231-1008

$77.01

In stock

21

$1.19

In stock

22

RELEASE-ASSY-CLUTCH

13231-1008

$77.01

In stock

23

SCREW-PAN-CROS,6X16

220B0616

Out of stock

24

SEAL-OIL

92050-071

Out of stock

25

$4.51

In stock

26

SCREW-SET,6X16

291H0616

$7.42

In stock

27

NUT 6MM

312B0600

Out of stock

28

RELEASE-ASSY-CLUTCH

13231-1008

$77.01

In stock
