1979 Kawasaki KD100-M4 Cables/chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Cables/chassis Electrical Equipment diagram for your 1979 Kawasaki KD100-M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

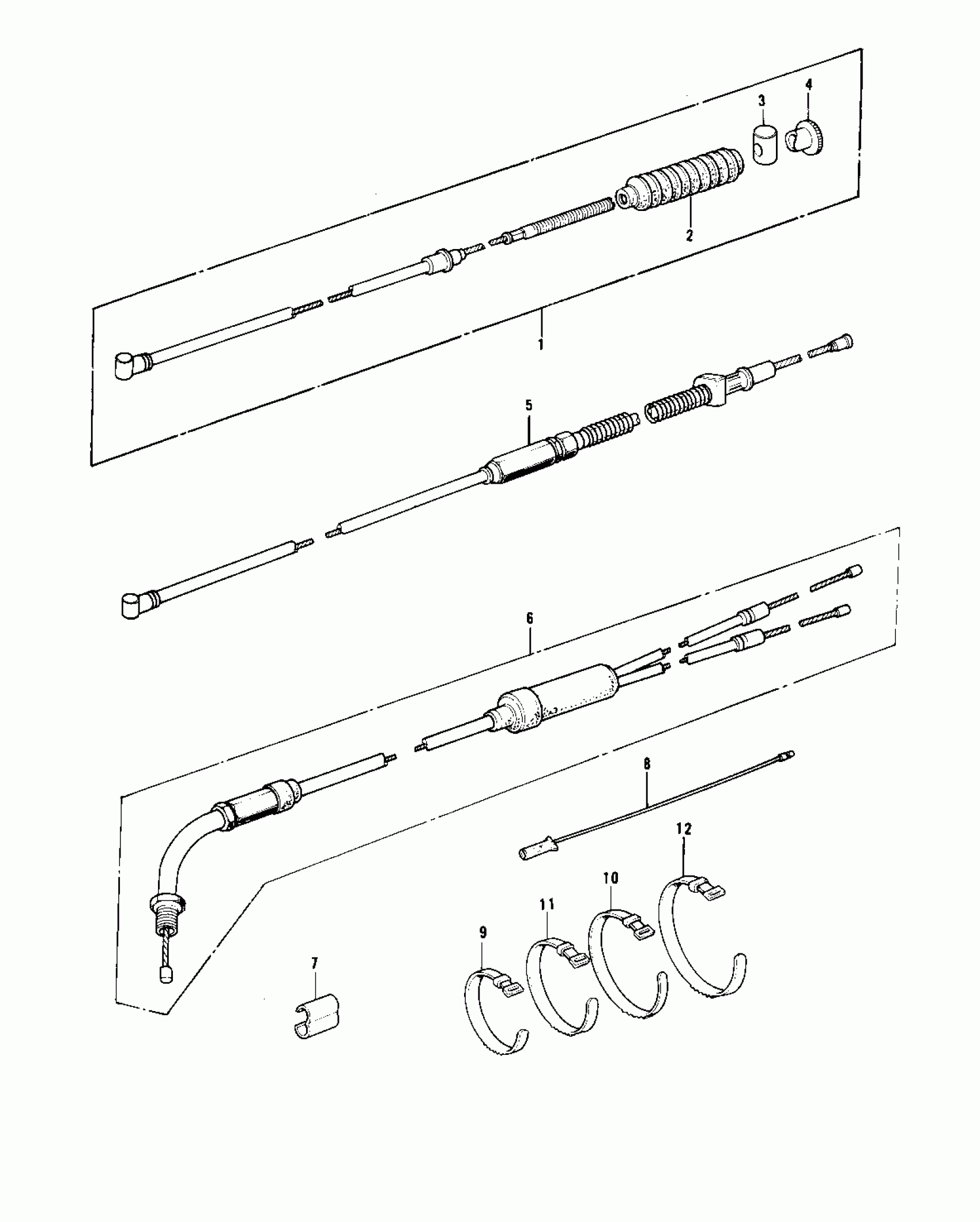

1979 Kawasaki KD100-M4 Cables/chassis Electrical Equipment Diagram

#

Description
Price
Status
Order Qty

1

CABLE,FRONT BRAKE

54005-074

Out of stock

2

COVER-SEAL

54009-008

Out of stock

3

PIN,BRAKE CABLE

92043-082

Out of stock

4

NUT,CABLE ADJUSTER LOCK

92015-052

Out of stock

5

CABLE, CLUTCH

54011-073

Out of stock

6

CABLE,CONTROL

54012-109

Out of stock

7

CLAMP-CABLE

92037-069

Out of stock

8

WIRING HARNESS,EXTNSN

26011-006

Out of stock

9

BAND,L=123

92072-030

Out of stock

10

BAND,L=186

92072-056

Out of stock

11

BAND,L=149

92072-031

Out of stock

12

BAND,L=218

92072-032

Out of stock
