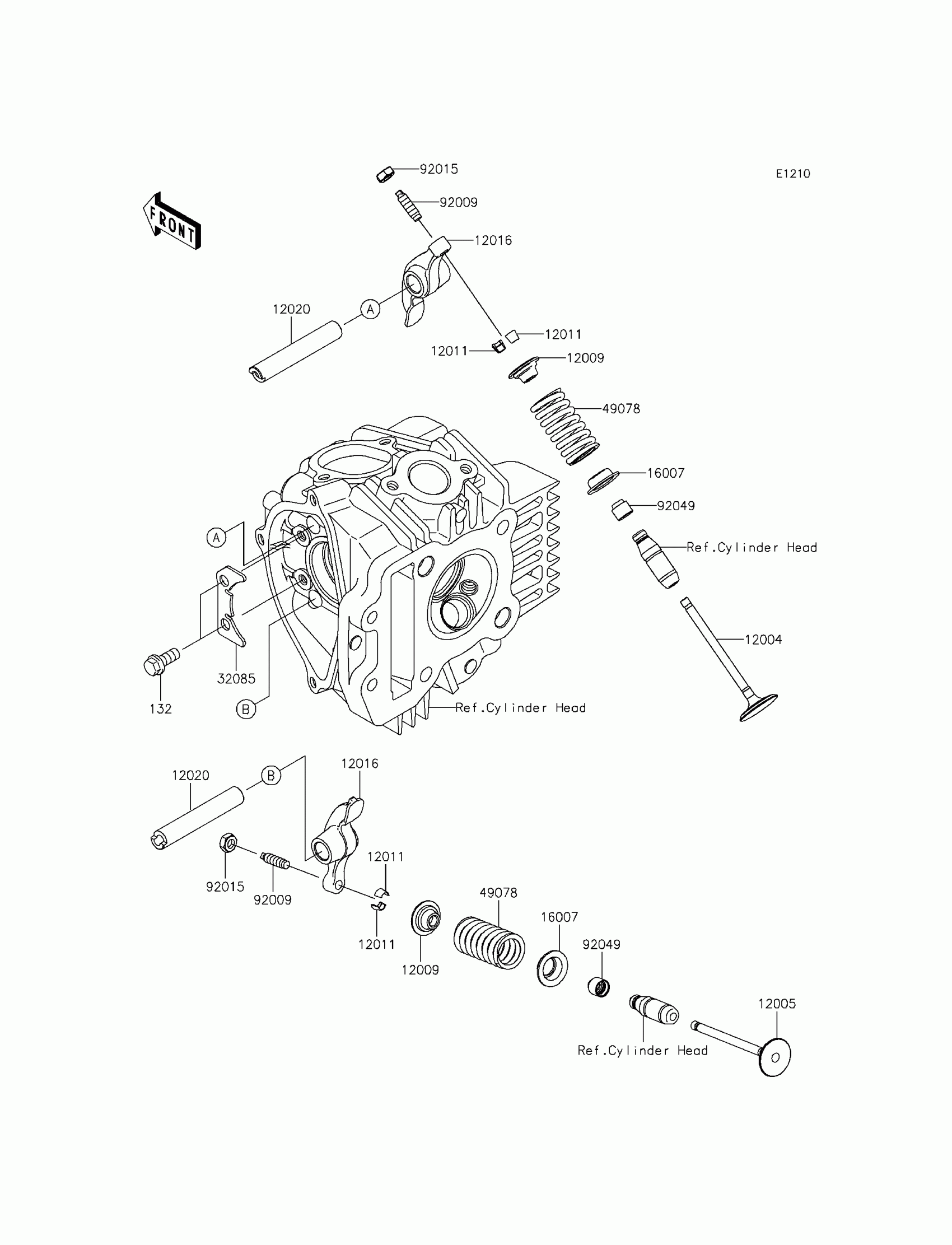

Kawasaki KAZE HIT Valve(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

12004

VALVE-INTAKE

12004-0710

$19.48

12005

VALVE-EXHAUST

12005-0713

$16.51

12009

RETAINER-VALVE SPRING

12009-1073

$8.10

12011

COLLET

12011-1053

$4.14

12016

ARM-ROCKER

12016-0001

$35.47

12020

SHAFT-ROCKER

12020-0014

$20.64

16007

SEAT-SPRING,VALVE

16007-1187

$2.79

32085

STOPPER

32085-0197

$3.69

49078

SPRING-ENGINE VALVE

49078-1151

$5.73

92009

SCREW,VALVE ADJUST

92009-1109

$1.43

92015

NUT,VALVE ADJUST LOCK

92015-1137

$0.81

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

$8.77
