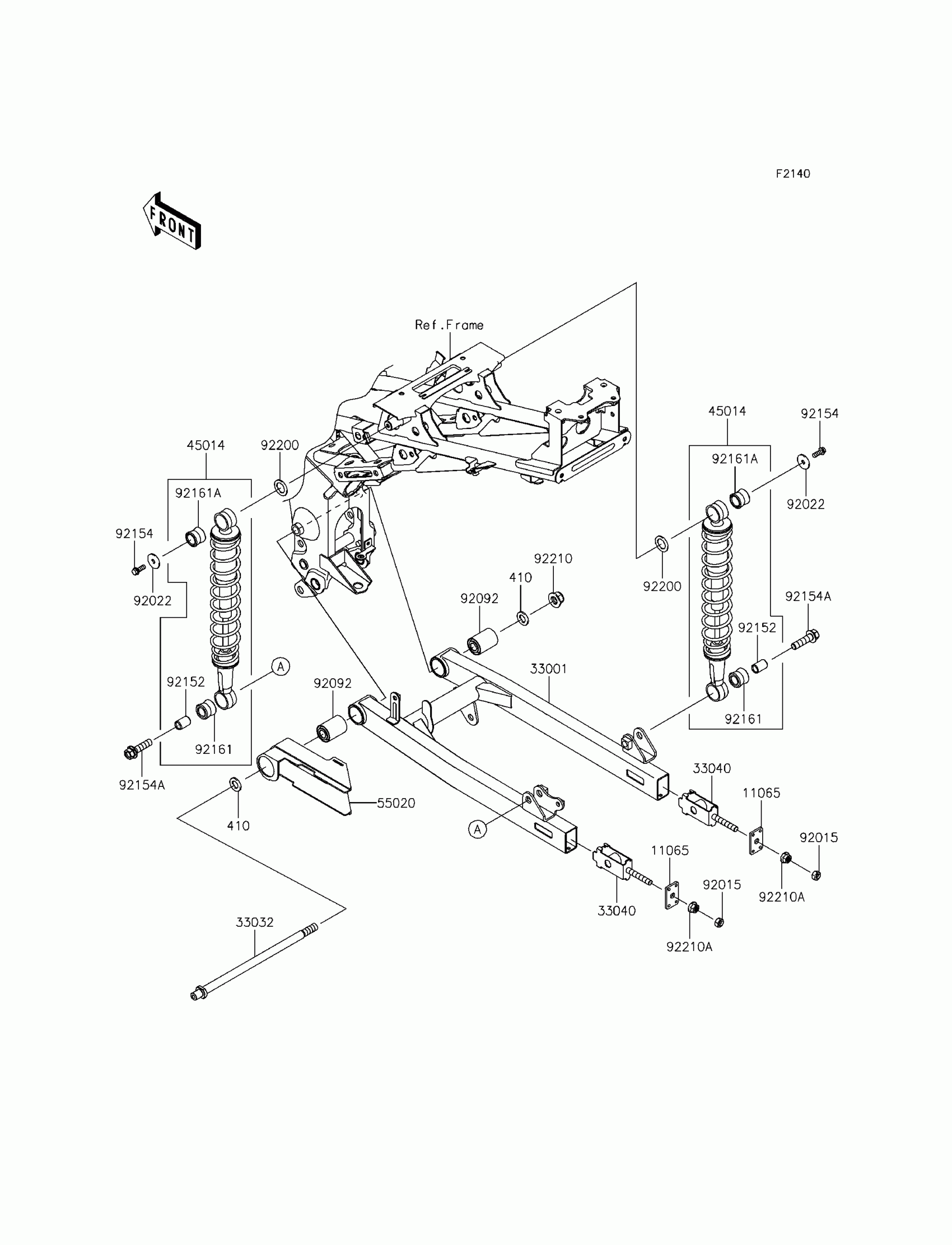

Kawasaki KAZE HIT Swingarm/Shock Absorber Diagram

Description

Price

410

WASHER-PLAIN-SMALL,12MM

410AA1200

$0.66

11065

CAP

11065-0314

$1.73

33001

ARM-COMP-SWING,P.SILVER

33001-0556-458

$83.58

33032

SHAFT-SWING ARM

33032-0034

$60.03

33040

ADJUSTER-CHAIN

33040-0074

$9.39

45014

SHOCKABSORBER,BLACK

45014-0357-10

$142.68

55020

GUARD,CHAIN

55020-1770

$3.58

92015

NUT,8MM

92015-1364

$2.99

92022

WASHER,6.5X24X2

92022-1690

$2.99

92092

BUSHING-RUBBER

92092-1089

$8.76

92152

COLLAR

92152-0830

$3.27

92154

BOLT,FLANGED,6X16

92154-0768

$1.44

92154A

BOLT,FLANGED,10X38

92154-0769

$3.68

92161

DAMPER,SHOCKABSORBER

92161-1262

$0.76

92161A

DAMPER,SHOCKABSORBER

92161-1263

$1.03

92200

WASHER,17X26X1.6

92200-1607

$0.35

92210

NUT,LOCK,FLANGED,12MM

92210-0348

$10.85

92210A

NUT,8MM

92210-0773

Unavailable
