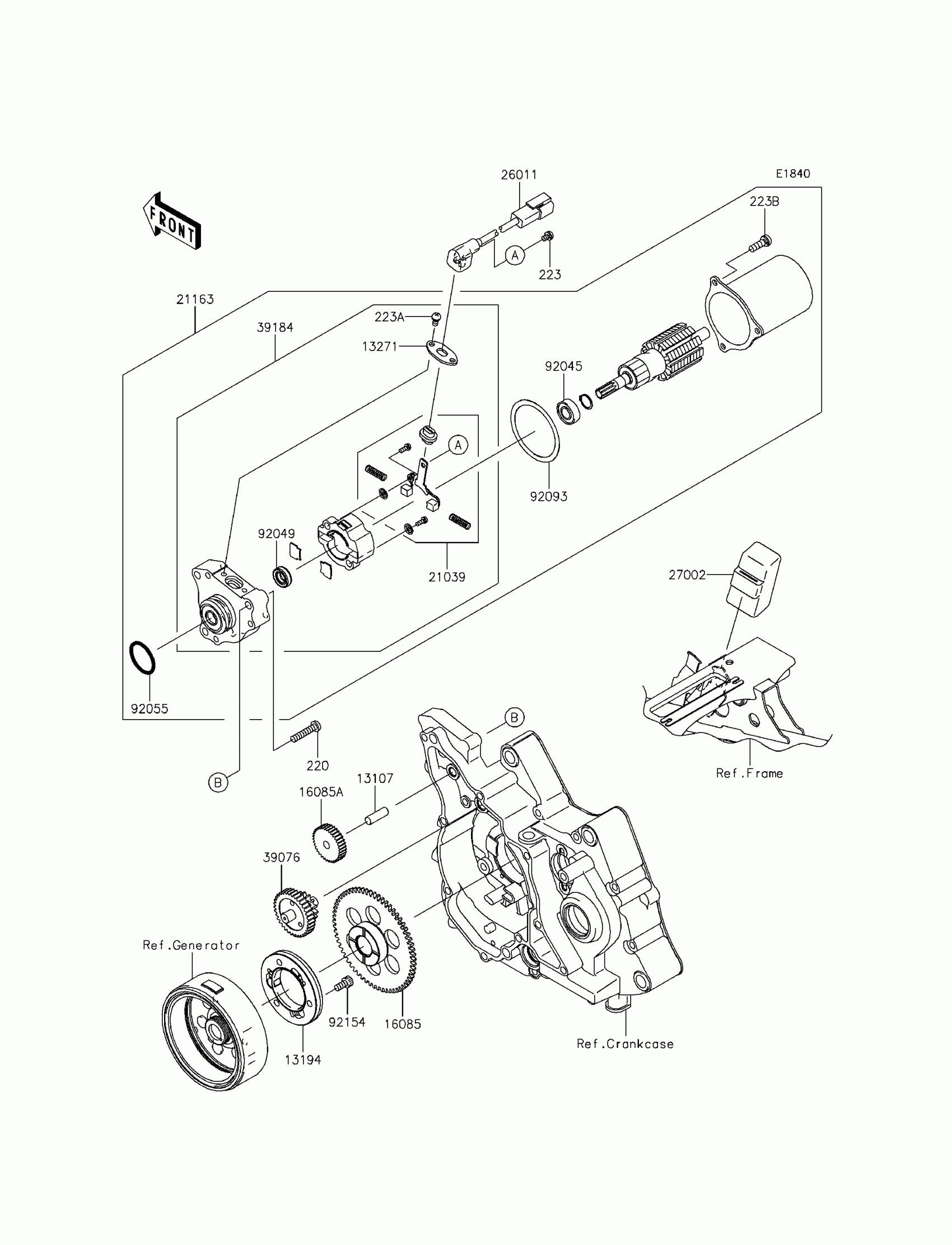

Kawasaki KAZE HIT Starter Motor Diagram

Description

Price

220

SCREW-PAN-CROS,6X30

220AD0630

$3.69

223

SCREW-PAN-WS-CROS,4X6

223AA0406

$2.93

223A

SCREW-PAN-WS-CROS,4X8

223AA0408

$1.00

223B

SCREW-PAN-WS-CROS,5X16

223AA0516

$4.90

13107

SHAFT,8X25

13107-1142

$5.86

13194

CLUTCH-ONEWAY

13194-0013

$97.06

13271

PLATE

13271-0674

$17.39

16085

GEAR

16085-0136

$112.09

16085A

GEAR,IDLE,45T

16085-0593

$54.83

21039

BRUSH,STARTER MOTOR(SET)

21039-1067

$20.85

21163

STARTER-ELECTRIC

21163-0049

$273.84

26011

WIRE-LEAD

26011-1819

$7.25

27002

RELAY-ASSY

27002-0018

$90.44

39076

LIMITER

39076-0022

$96.42

39184

BRACKET-ASSY

39184-0014

$78.60

92045

BEARING-BALL,STARTER MOTOR

92045-1349

$12.05

92049

SEAL-OIL,STARTER MOTOR

92049-1465

$4.95

92055

RING-O

92055-1276

$7.54

92093

SEAL,STARTER MOTOR

92093-1079

$4.39

92154

BOLT

92154-0325

$2.58
