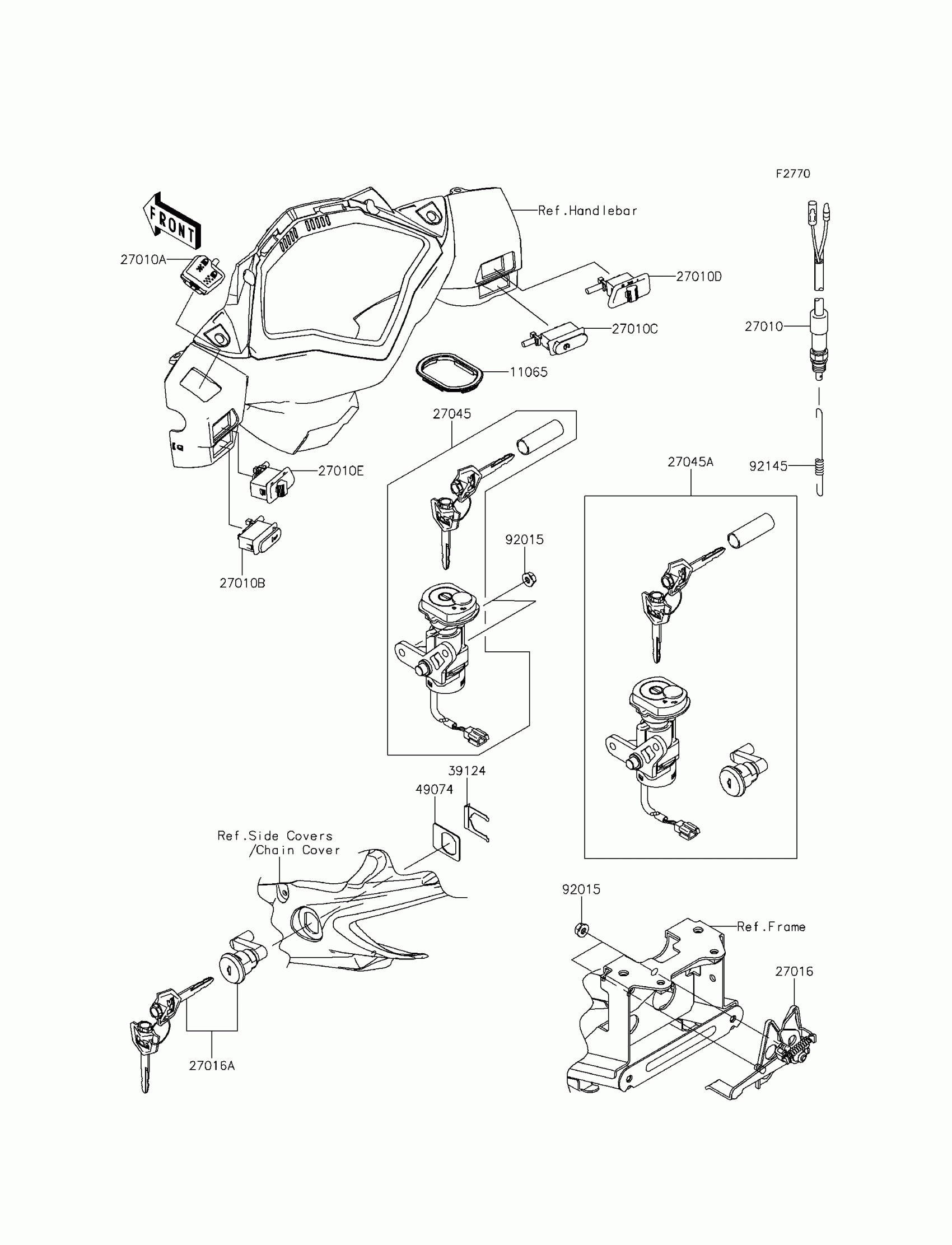

Kawasaki KAZE HIT Ignition Switch Diagram

Description

Price

11065

CAP,IGNITION SWITCH

11065-0361

$9.75

27010

SWITCH,REAR BRAKE

27010-0048

$35.44

27010A

SWITCH,DIMMER

27010-0052

$10.88

27010B

SWITCH,HORN

27010-0053

$16.83

27010C

SWITCH,STARTER

27010-0055

$13.75

27010D

SWITCH,LIGHTING

27010-0056

$13.20

27010E

SWITCH,TURN SIGNAL

27010-0096

$15.81

27016

LOCK-ASSY,SEAT

27016-0072

$52.76

27016A

LOCK-ASSY,SEAT

27016-5366

$53.22

27045

SWITCH-ASSY,IGNITION

27045-0552

$136.96

27045A

SWITCH-ASSY

27045-9504

$163.64

39124

SNAP,SEAT LOCK

39124-0002

$1.54

49074

PLATE-THRUST

49074-0001

$2.17

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92145

SPRING,REAR BRAKE SWITCH

92145-0250

$4.51
