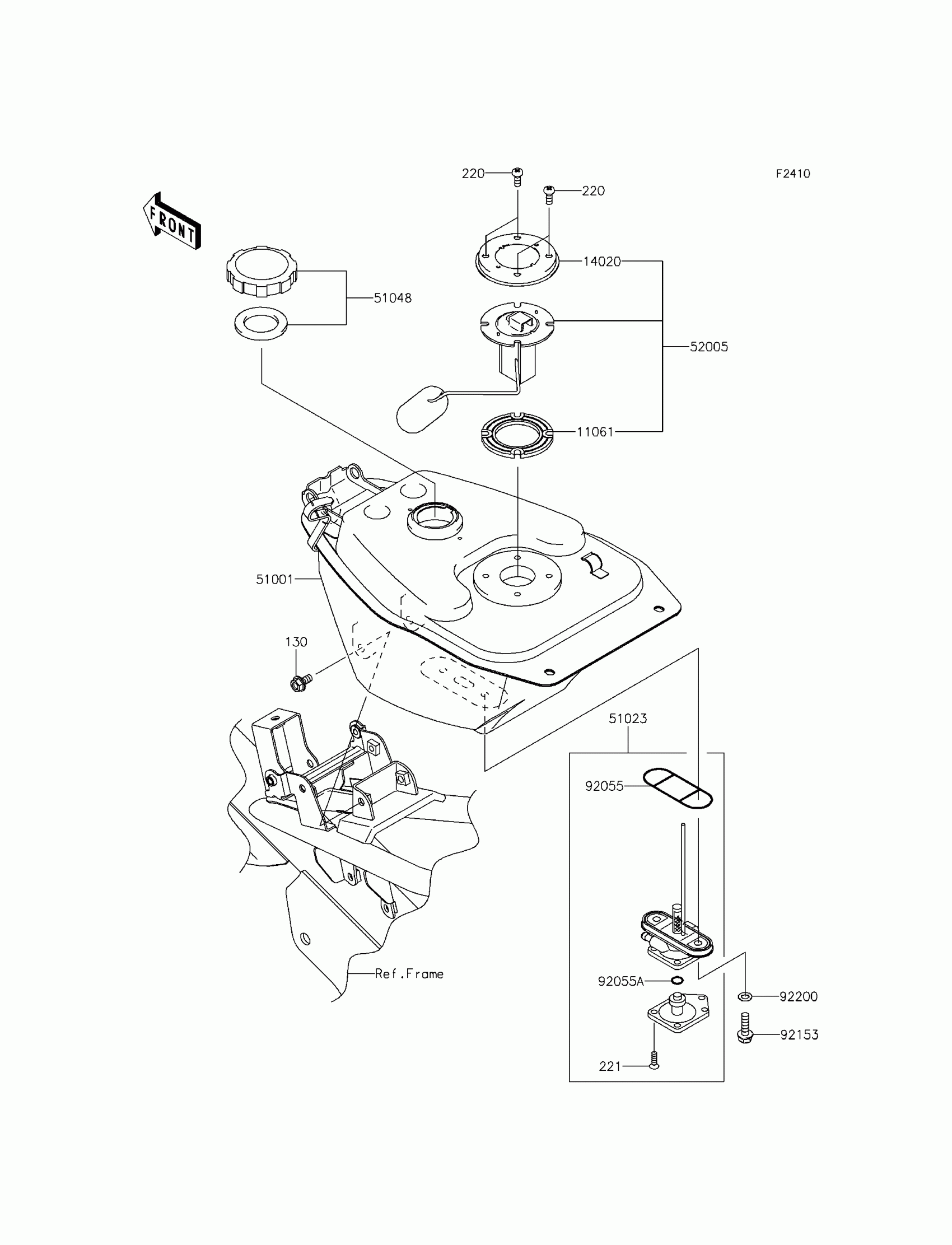

Kawasaki KAZE HIT Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BB0612

$1.68

220

SCREW-PAN-CROS,5X12

220AA0512

$0.47

221

SCREW-CSK-CROS,4X14

221AA0414

$3.24

11061

GASKET,FUEL GAUGE

11061-1125

$2.19

14020

RETAINER,FUEL GAUGE

14020-0001

$2.63

51001

TANK-COMP-FUEL

51001-0115

$67.19

51023

TAP-ASSY,FUEL

51023-0038

$47.47

51048

CAP-ASSY-TANK

51048-1119

$24.81

52005

GAUGE,FUEL

52005-0035

$35.79

92055

RING-O,FUEL TAP PACKING

92055-1586

$3.53

92055A

RING-O

92055-1664

$3.96

92153

BOLT,FLANGED,6X20

92153-1195

$0.44

92200

WASHER,6.5X11.5X0.8

92200-0177

Unavailable
