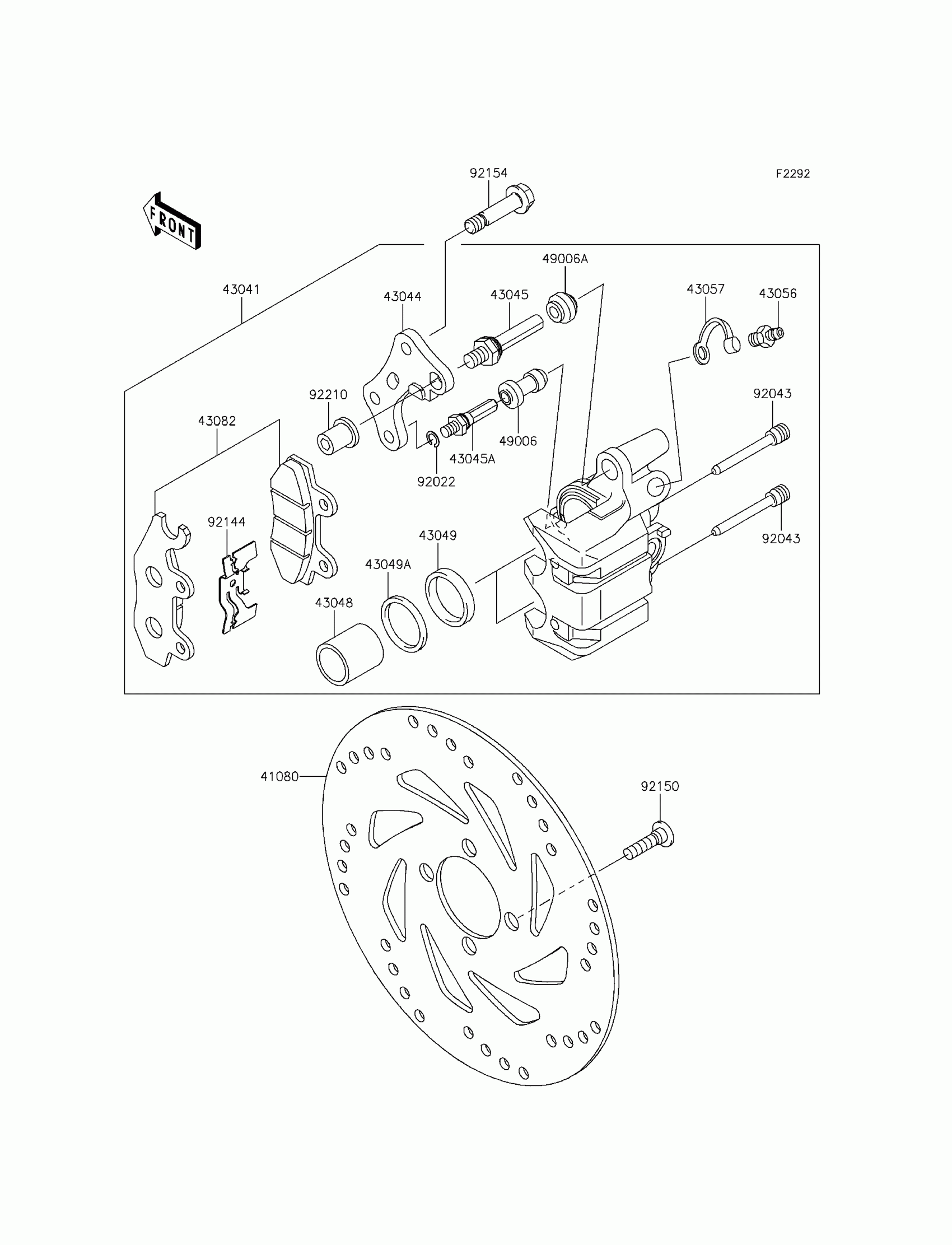

Kawasaki KAZE HIT Front Brake Diagram

Description

Price

41080

DISC,FR

41080-0566

$99.99

43041

CALIPER-ASSY,BLACK

43041-0322-25S

$159.73

43044

HOLDER-COMP-CALIPER

43044-0069

$45.30

43045

SHAFT-CALIPER

43045-0007

$12.08

43045A

SHAFT-CALIPER

43045-1010

$19.49

43048

PISTON-CALIPER

43048-1066

$74.44

43049

PACKING

43049-1063

$6.13

43049A

PACKING

43049-1064

$4.64

43056

BREATHER-BRAKE

43056-1056

$10.86

43057

CAP-BREATHER

43057-1001

$3.73

43082

PAD-ASSY-BRAKE

43082-0085

$55.93

49006

BOOT,CALIPER

49006-1088

$8.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92022

WASHER,WAVE

92022-1373

$3.53

92043

PIN,HANGER

92043-1416

$14.01

92144

SPRING,PAD

92144-1847

$30.92

92150

BOLT,8X30

92150-1728

$3.57

92154

BOLT,FLANGED,8X36

92154-0334

$4.19

92210

NUT

92210-0765

$11.25
