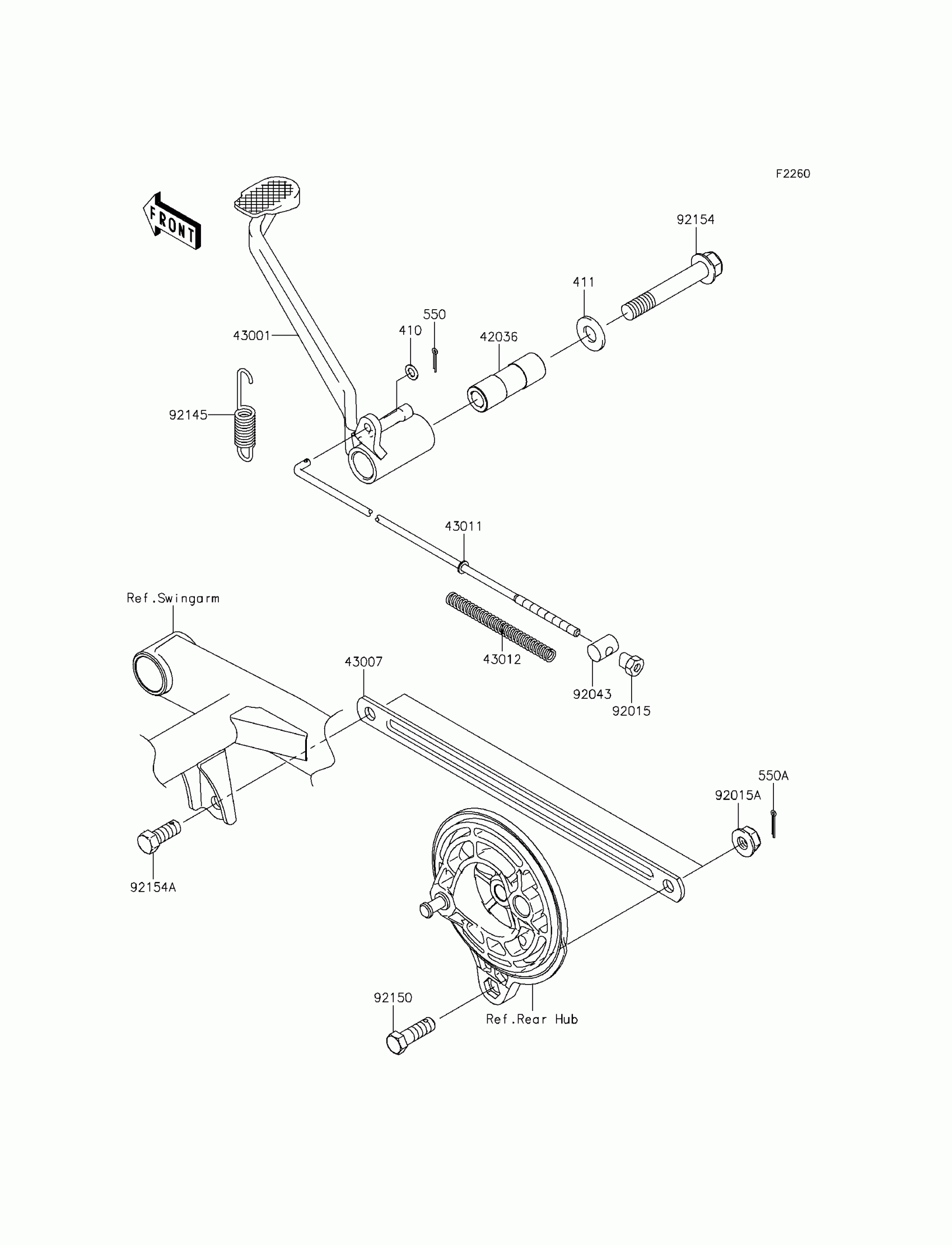

Kawasaki KAZE HIT Brake Pedal Diagram

Description

Price

410

WASHER-PLAIN-SMALL

410AA0600

$1.03

411

WASHER-PLAIN,12MM

411AA1200

$0.81

550

PIN-COTTER,2.0X15

550AA2015

$0.90

550A

PIN-COTTER,2.0X18

550AA2018

$1.80

42036

SLEEVE

42036-1332

$9.12

43001

LEVER-BRAKE,PEDAL

43001-0706

$25.76

43007

ROD-TORQUE

43007-0019

$4.19

43011

ROD-BRAKE

43011-0553

$14.64

43012

SPRING,BRAKE ROD

43012-001

$3.54

92015

NUT,BRAKE ROD

92015-042

$4.67

92015A

NUT,FLANGED,10MM

92015-1428

$3.81

92043

PIN,BRAKE ROD

92043-0065

$5.17

92145

SPRING,RETURN

92145-0770

$2.00

92150

BOLT,10X32

92150-1872

$5.42

92154

BOLT,FLANGED,12X75

92154-0328

$8.05

92154A

BOLT,10X25

92154-0767

$4.68
