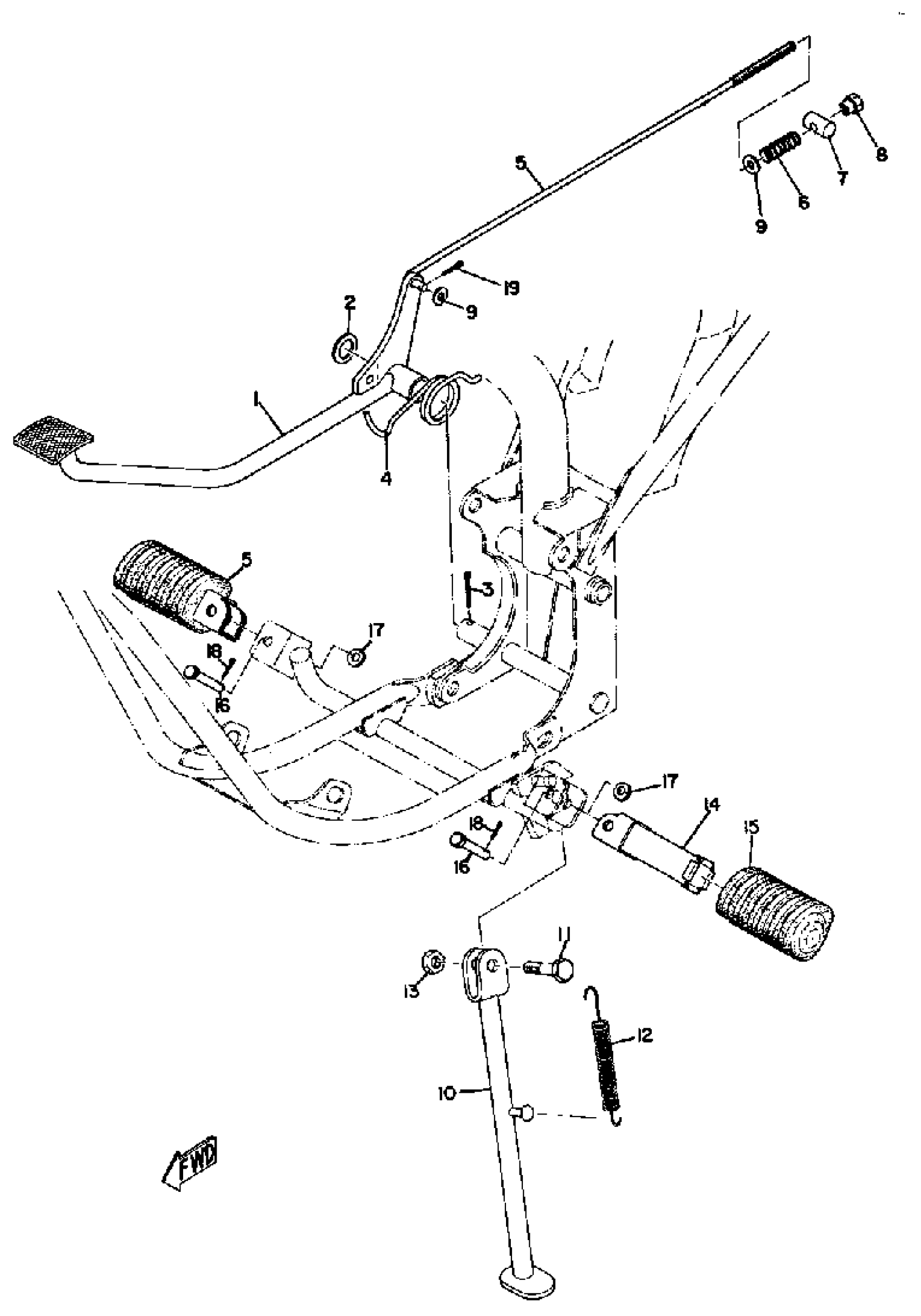

Yamaha JT1L (JT1_JT1L) 1971 STAND & BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, BRAKE

(288-27211-01-91)

Unavailable

2

WASHER, PLATE (3X3)

90201-15797-00

$9.49

3

PIN COTTER

91490-30025-00

$3.99

4

SPRING 1832721600

90508-32056-00

$7.49

5

ROD, BRAKE

288-27231-00-00

Unavailable

6

SPRING, (180-27236-00)

90501-10245-00

$8.49

7

PIN 1562723700

90249-12008-00

$8.49

8

NUT (25K)

90179-06411-00

$8.49

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

STAND, SIDE

(288-27311-00-00)

Unavailable

11

BOLT 137273170000

90109-08031-00

$8.49

12

SPRING TENSION 146273160000

90506-29052-00

$11.49

13

. NUT

95380-08700-00

Unavailable

14

FOOT REST

214-27421-00-00

$37.99

15

COVER, FOOT REST

214-27413-00-00

$23.99

16

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

17

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

18

PIN, COTTER

91490-20025-00

Unavailable

19

PIN, COTTER

91490-20025-00

Unavailable
