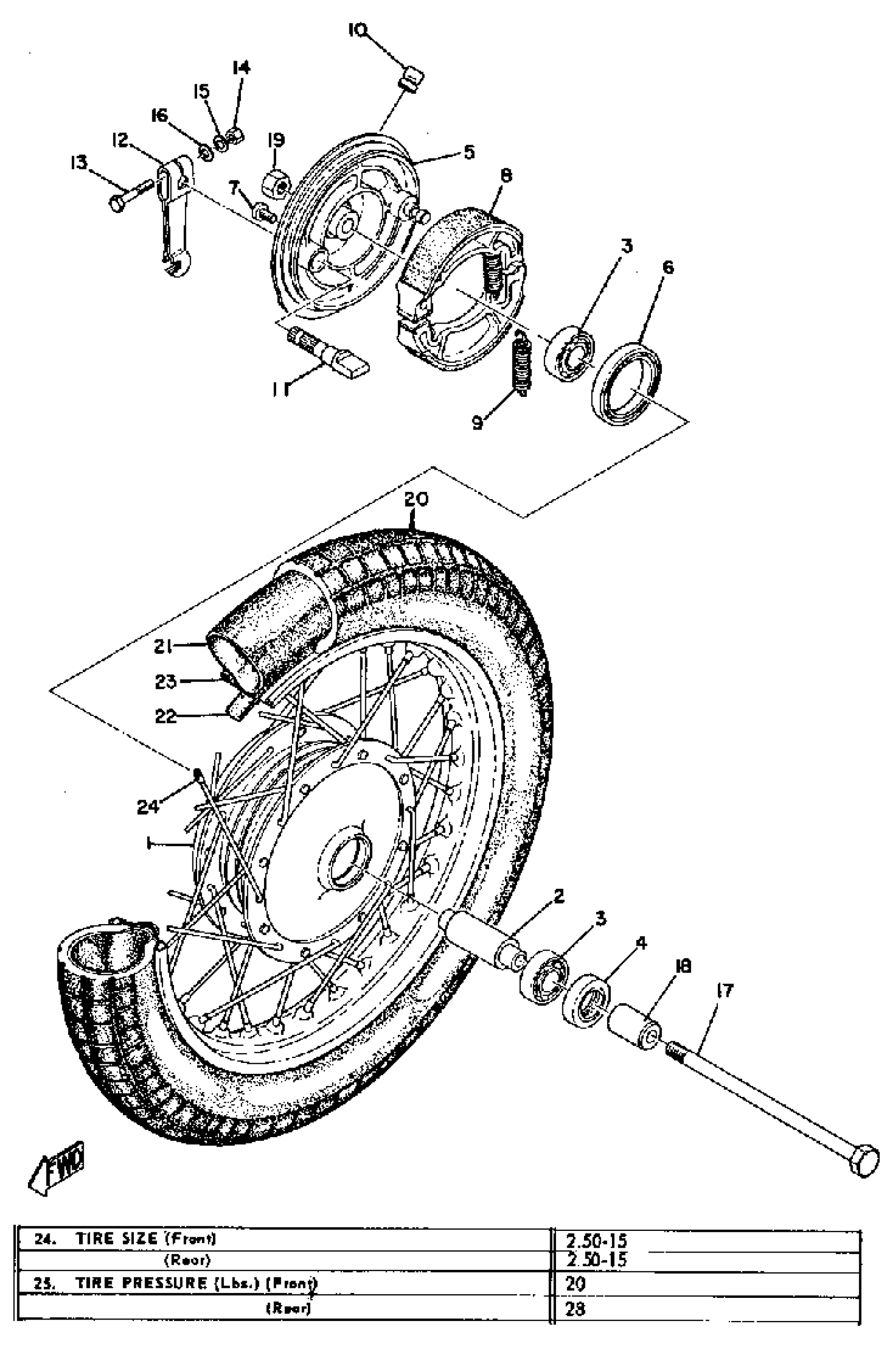

Yamaha JT1L (JT1_JT1L) 1971 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(288-25111-00-00)

Unavailable

2

SPACER, BEARING

(102-25117-00-00)

Unavailable

3

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

4

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

5

BRAKE SHOE PLT ASSEMBLY

(394-25120-00-38)

Unavailable

6

OIL SEAL, OS-TYPE

93107-42001-00

Unavailable

7

SCREW PAN HEAD

98580-06010-00

$8.49

8

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

9

SPRING, TENSION (566).

90506-16150-00

$9.49

10

PLUG 288251390000

90338-18014-00

Unavailable

11

CAM SHAFT

122-25351-02-00

Unavailable

12

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

13

BOLT, HEXAGON

97017-06030-00

$3.61

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

BOLT

(90109-10086-00)

Unavailable

18

COLLAR (128-25183-00)

90387-10081-00

Unavailable

19

NUT(3BM)

95314-10600-00

Unavailable

20

250-15 IRC TRIALS

94125-15478-00

Unavailable

21

TUBE (1K8)

94225-15103-00

Unavailable

22

BAND, RIM(3DM)

94313-15154-00

Unavailable

23

RIM 1.40X15

94414-15058-00

Unavailable

24

SPOKE SET, FRONT

288-25104-01-00

Unavailable
