Partiron

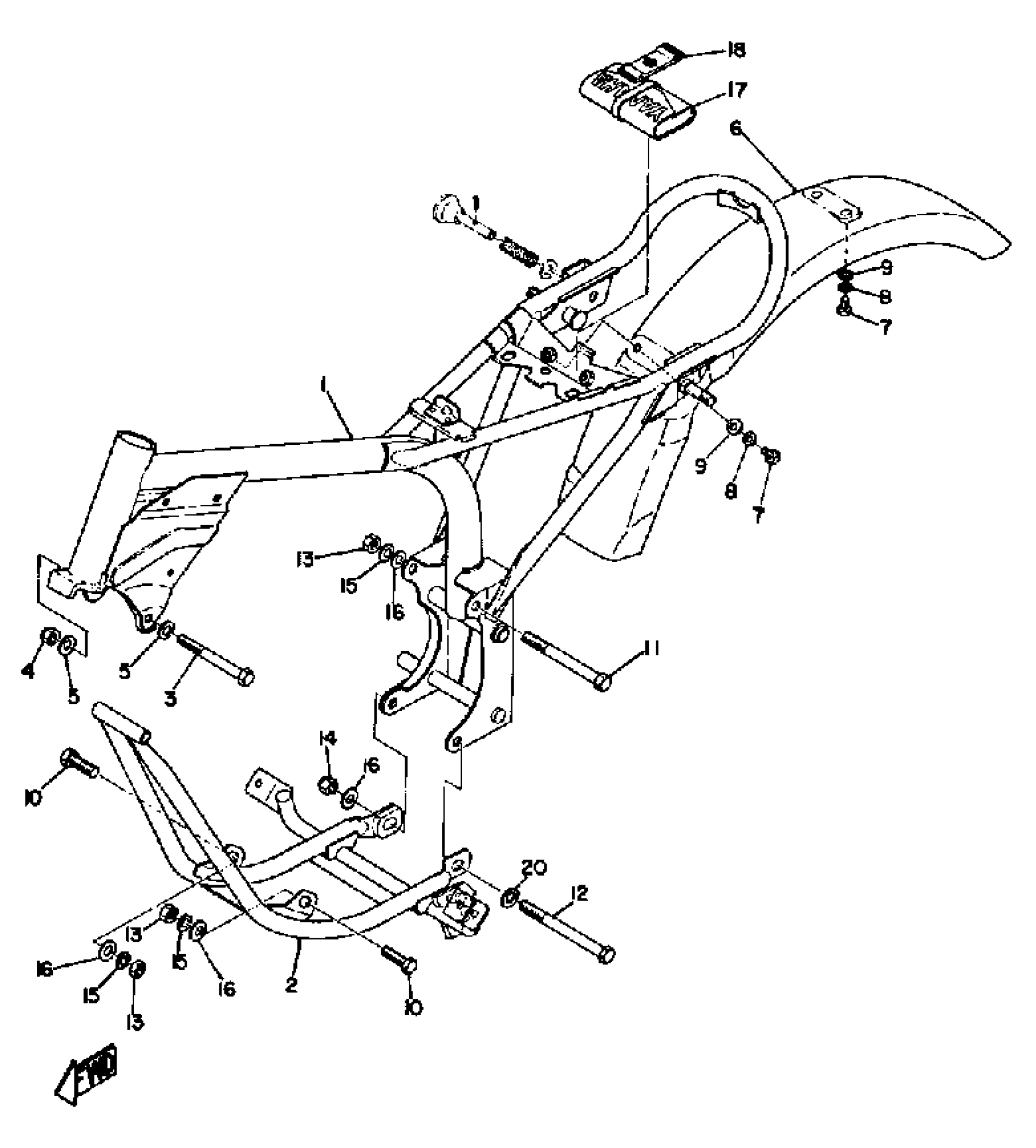

Yamaha JT1L (JT1_JT1L) 1971 FRAME Diagram

#

Description
Price

1

FRAME

(288-21110-00-33)

Unavailable

1

FRAME

(288-21110-01-33)

Unavailable

1

BOLT (661)

97013-06012-00

$4.40

2

FRAME

(288-21110-02-33)

Unavailable

3

BOLT (97321-08090)

97023-08090-00

Unavailable

4

NUT, U

95617-08100-00

$6.34

5

WASHER, PLAIN

92990-08200-00

$2.36

6

FENDER, REAR

(288-21610-01-01)

Unavailable

7

BOLT(3JP)

97017-06010-00

$2.44

8

WASHER, SPRING

92995-06100-00

$2.95

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

10

BOLT, HEXAGON

97013-08030-00

$2.98

11

BOLT, HEXAGON

97027-08140-00

Unavailable

12

BOLT, FLANGE

95817-08115-00

$6.12

13

NUT(6L2)

95333-08600-00

$2.98

14

NUT, U

95617-08100-00

$6.34

15

WASHER, PLAIN

92990-08200-00

$2.36

16

WASHER, PLAIN

92990-08200-00

$2.36

17

TOOL KIT

(207-28100-10-00)

Unavailable

17

TOOL KIT

(353-28100-10-00)

Unavailable

18

BAND, TOOL

21V-21376-00-00

Unavailable
