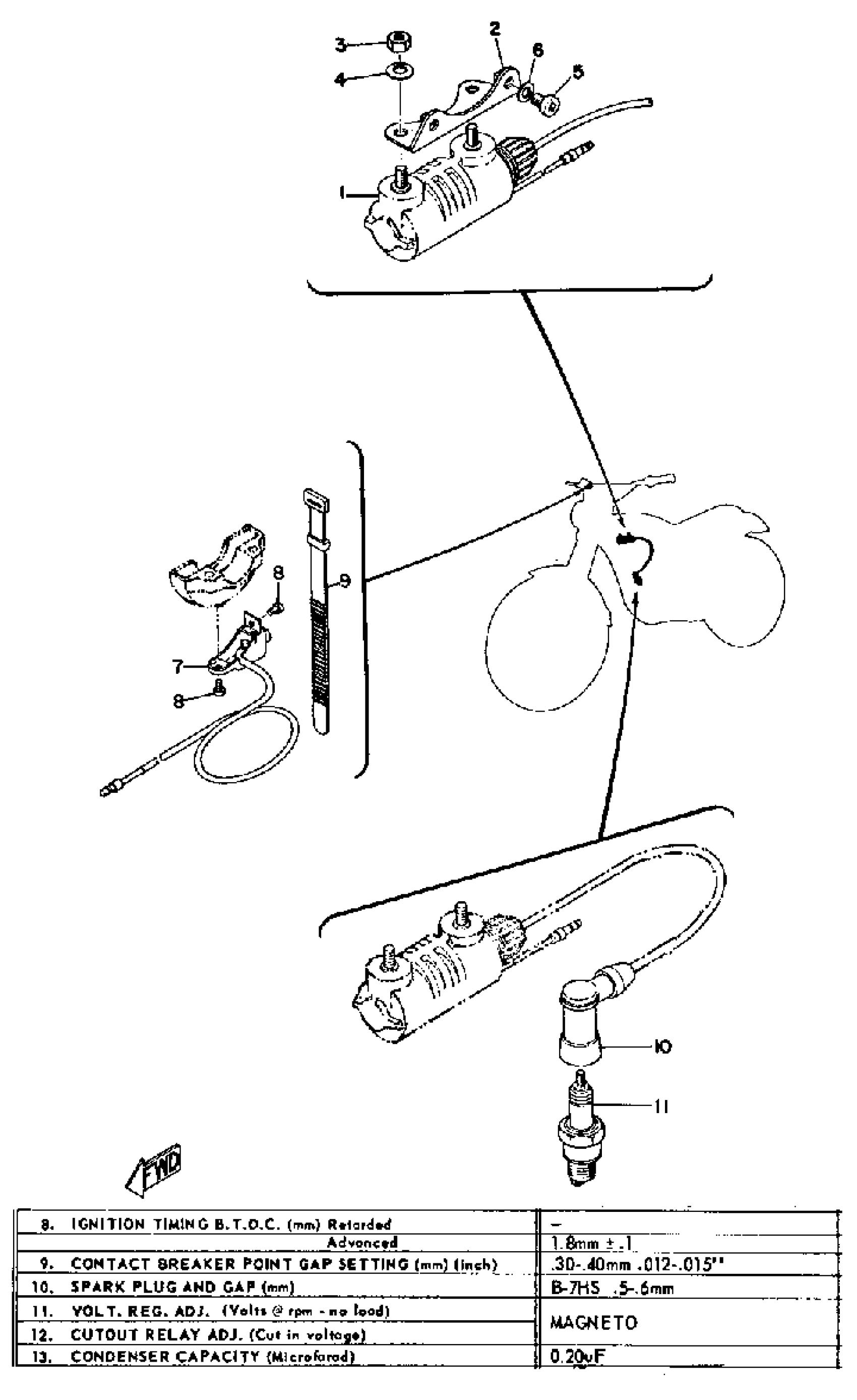

Yamaha JT1L (JT1_JT1L) 1971 ELECTRICAL Diagram

#

Description
Price

1

IGNITION COIL ASSEMBLY

248-82310-11-00

Unavailable

2

BRACKET, IGN COIL

(248-82316-00-00)

Unavailable

3

NUT, HEXAGON

95380-06600-00

$4.11

4

WASHER, SPRING

92995-06100-00

$2.95

5

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

6

WASHER, SPRING

92995-06100-00

$2.95

7

SWITCH, HANDLE 1

261-83976-00-00

Unavailable

8

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

9

BAND, SWITCH CORD

437-83936-01-00

$4.56

10

PLUG CAP ASSY

56J-82370-00-00

$40.46

11

B7HS NGK 4PK

B7H-S0000-00-00

$4.09
