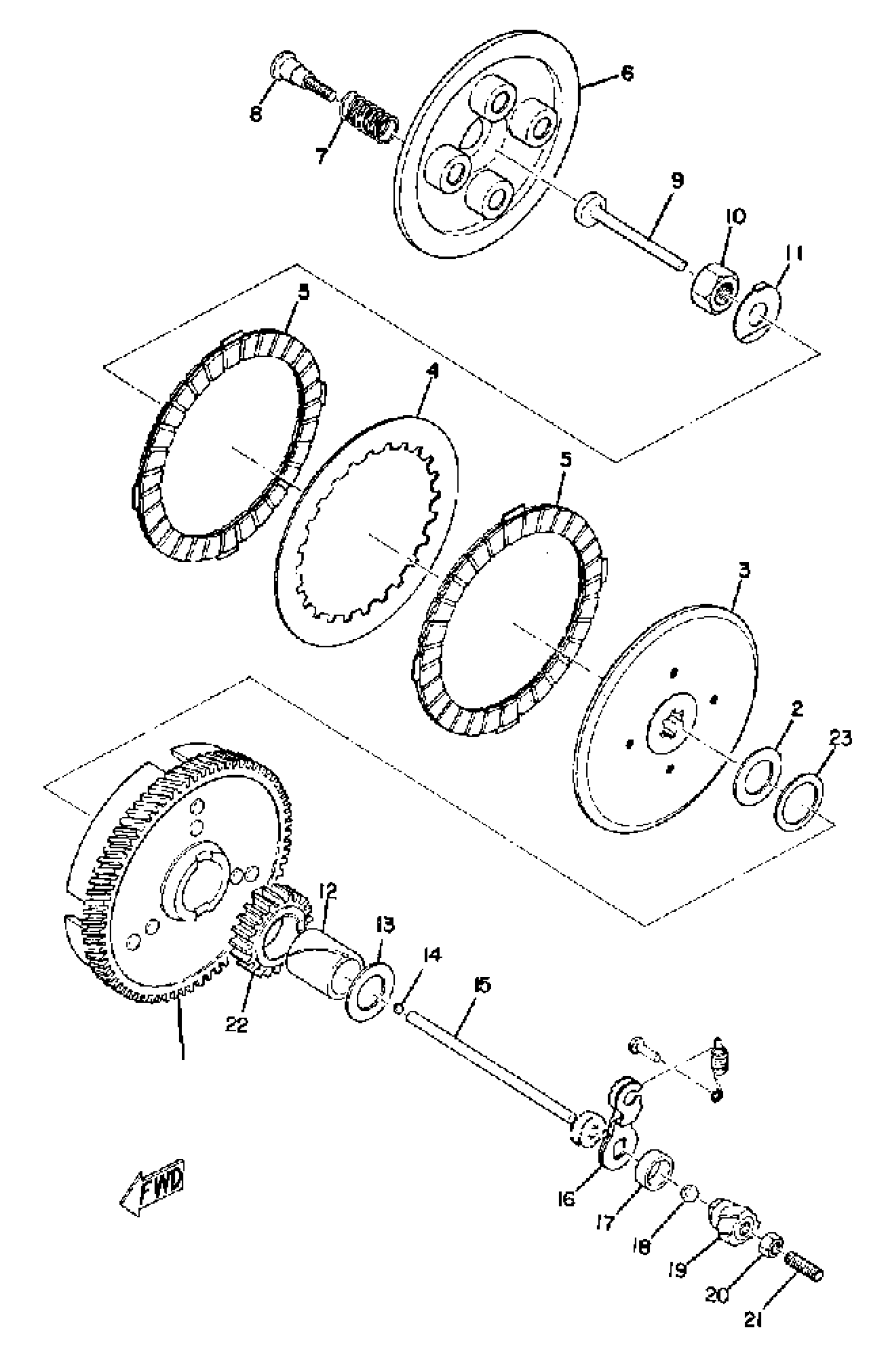

Yamaha JT1L (JT1_JT1L) 1971 CLUTCH Diagram
#
Description
Price
1
. PRI DRVN GEAR (257-16150-02)
257-16150-03-00
Unavailable
1
CLUTCH ASSEMBLY
(257-16301-03-00)
Unavailable
3
. BOSS, CLUTCH
257-16371-00-00
Unavailable
4
PLATE, CLUTCH 1
257-16324-10-00
Unavailable
6
. PLATE, PRESSURE 1
257-16351-00-00
Unavailable
8
SCREW, SPECL SHAPE
(90149-05147-00)
Unavailable
11
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
12
SPACER
(90560-17150-00)
Unavailable
15
ROD, PUSH (2)
257-16357-00-00
Unavailable
16
LEVER, PUSH
257-16342-00-00
Unavailable
17
OIL SEAL (15.3X22X7-136)
93108-15001-00
Unavailable
18
BALL
93501-04011-00
Unavailable
19
SCREW, PUSH
257-16341-00-00
Unavailable
20
NUT(650)
95380-06700-00
Unavailable
21
BOLT SET 257163430000
90113-06009-00
Unavailable
22
GEAR, KICK PINION
(164-15631-01-00)
Unavailable
23
WASHER, PLATE
90201-23315-00
Unavailable
