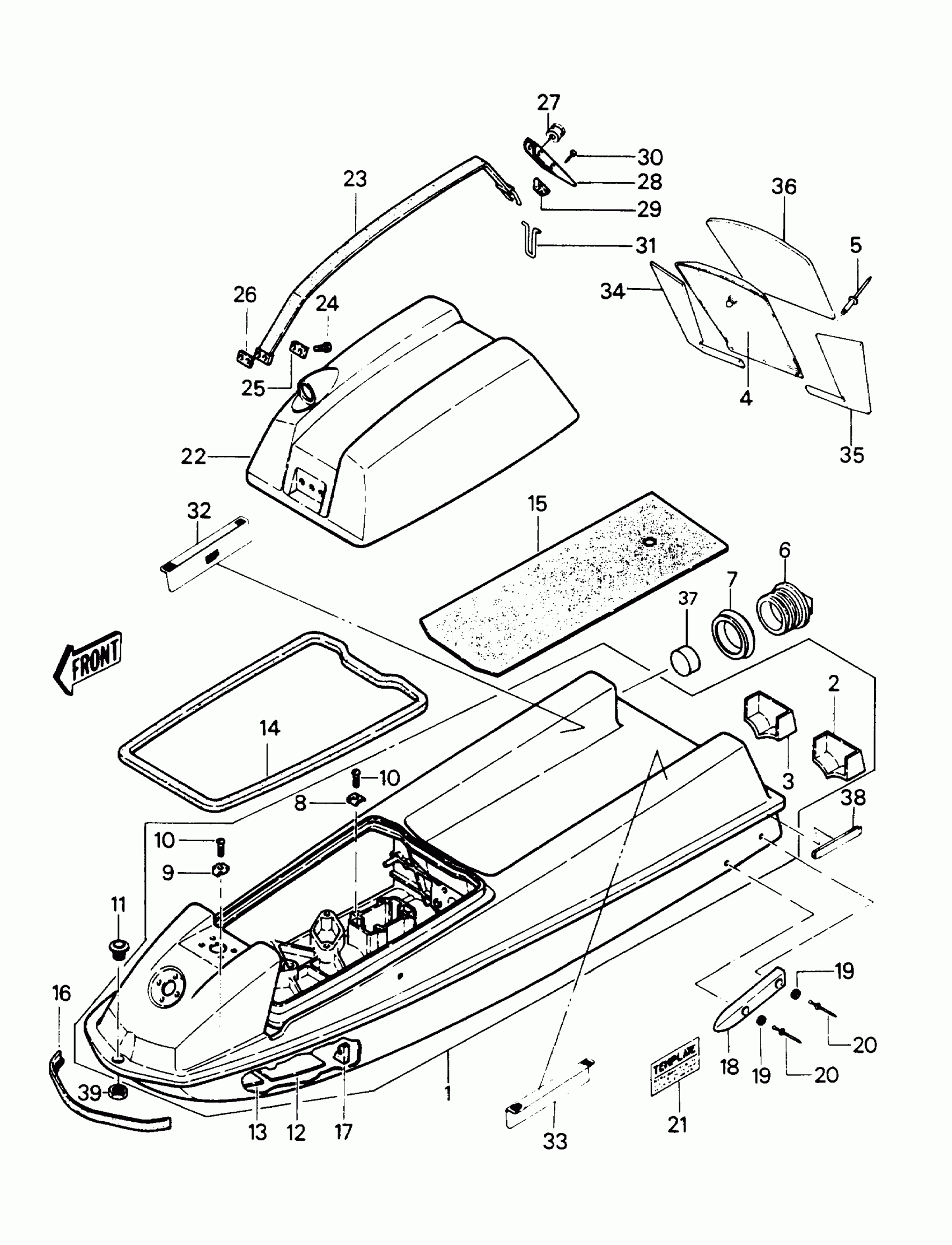

Kawasaki JS550 HULL/ENGINE HOOD (JS550-A8) Diagram

#

Description
Price

10

SCREW,TAPPING

92011-561

Unavailable

11

BUSHING

92028-3734

$7.59

12

DAMPER,FUEL TANK

92075-521

Unavailable

13

DAMPER,MUFFLER

92075-522

Unavailable

14

GASKET,ENGINE HOOD

92065-539

$66.41

15

MAT

59131-502

Unavailable

16

BUMPER

59201-3691

$11.67

17

DETENT

59346-504

$8.73

18

STABILIZER

59437-3002

Unavailable

19

WASHER,5X16X1.5

92022-3041

$3.19

20

RIVET

92039-3002

$5.10

21

TEMPLATE,STABILIZER

99969-0560

Unavailable

22

HOOD-COMP-ENGINE,JET WHITE

59456-3001-8C

$486.56

23

BAND,HOOD

92072-501

Unavailable

24

BOLT,6X30

92001-3022

Unavailable

25

WASHER,BAND

92022-509

$4.19

26

BRACKET,PLATE

59086-501

$17.39

27

GROMMET

92071-056

$3.25

28

LEVER

13168-3701

Unavailable

29

DETENT

59346-503

Unavailable

30

SCREW

92011-562

$1.23

31

HINGE

53009-503

$14.08

32

MAT,DECK FIN,RH

53004-3723

$108.17

33

MAT,DECK FIN,LH

53004-3724

$108.17

34

MAT,DASHBOARD,RH

53004-3726

$42.36

35

MAT,DASHBOARD,LH

53004-3727

Unavailable

36

MAT,DASHBOARD COVER

53004-3725

Unavailable

37

DAMPER,69X16T

92075-3710

$7.83

38

GRIP,HULL

46075-3701

Unavailable

39

NUT

92015-3779

$7.59

1

HULL-COMP,JET WHITE

59426-3759-8C

$1,192.80

2

HULL,LH,EXTENSION,JET WHITE

59251-3006-8C

Unavailable

3

HULL,RH,EXTENSION,JET WHITE

59251-3005-8C

$19.14

4

COVER,DASHBOARD

14025-3706

Unavailable

5

RIVET,4MM

92039-3703

$4.17

6

CAP

11012-3721

$8.35

7

SEAL-OIL

92049-3709

Unavailable

8

HOOK

27012-501

Unavailable

9

HOOK

27012-502

Unavailable
