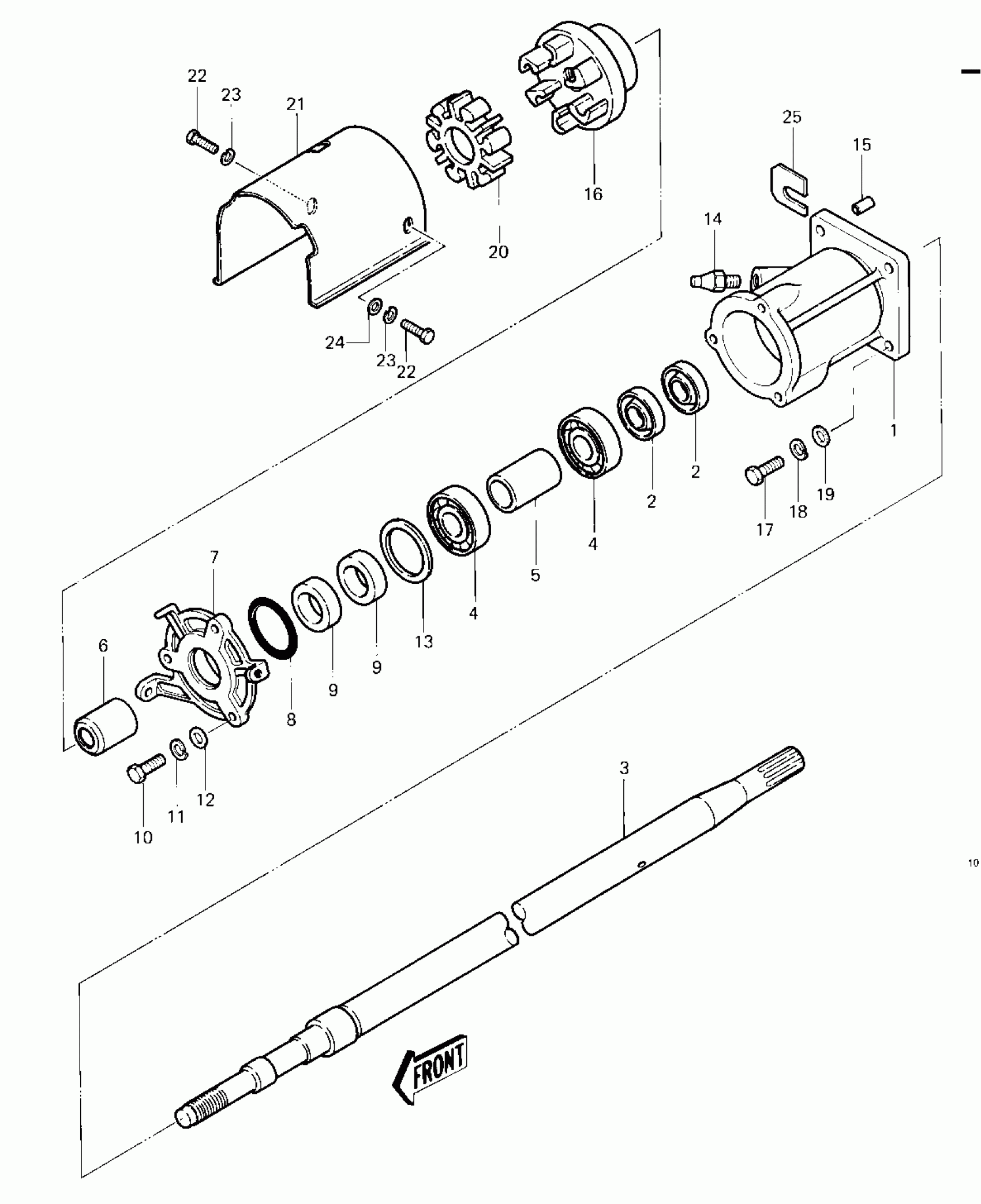

Kawasaki JS550 DRIVE SHAFT Diagram

#

Description
Price

1

HOUSING-BEARING

41046-502

$177.30

2

SEAL-OIL,AC1799EX

92050-501

Unavailable

3

SHAFT,DRIVE

13107-3008

Unavailable

4

BEARING-BALL,#6305C3

601B6305

$20.88

5

COLLAR

92027-502

$15.47

6

SLEEVE,BEARING

42036-501

Unavailable

7

SLEEVE,BEARING

42036-501

Unavailable

8

RING-O

92055-501

Unavailable

9

SEAL-OIL,AC1799EX

92050-501

Unavailable

10

BOLT,8X25

110R0825

Unavailable

11

WASHER SPRING 8MM

461S0800

$0.57

12

WASHER-PLAIN,8MM

411S0800

$2.15

13

SHIM,T=0.15

92025-502

Unavailable

13

SHIM,T=0.3

92025-503

Unavailable

14

FITTING,GREASE

92005-501

Unavailable

15

PIN-DOWEL

551R0612

$3.57

16

COUPLING

42034-3706

Unavailable

17

BOLT,8X25

110R0825

Unavailable

18

WASHER SPRING 8MM

461S0800

$0.57

19

WASHER-PLAIN,8MM

411S0800

$2.15

20

DAMPER,COUPLING

92075-520

$96.96

21

COVER,COUPLING

59036-567

Unavailable

22

BOLT,6X16

110R0616

Unavailable

23

WASHER-SPRING,6MM

461S0600

$0.84

24

WASHER-PLAIN,6MM

411S0600

$1.49

25

SHIM,T=0.3MM

92025-3701

Unavailable

25

SHIM,T=0.5MM

92025-3702

Unavailable

25

SHIM,T=1.0MM

92025-3703

Unavailable

25

SHIM,T=1.5MM

92025-3704

Unavailable
