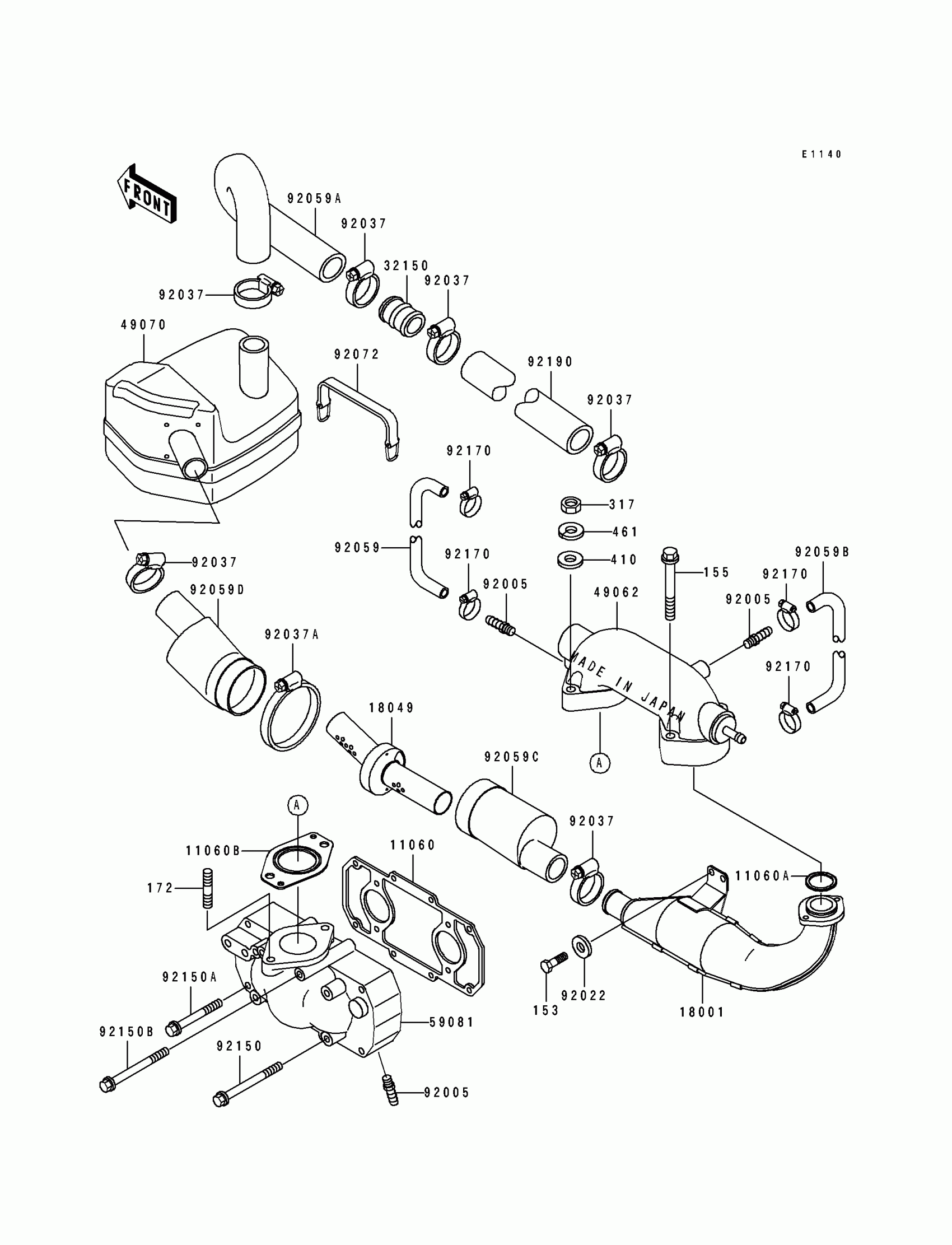

Kawasaki JS440 Muffler Diagram

#

Description
Price

11060

GASKET,EXHAUST MANIFOLD

11009-3779

$26.07

11060A

GASKET,EXHAUST

11009-3784

Unavailable

11060B

GASKET,EXHAUST

11060-3710

Unavailable

18001

MUFFLER

18001-520

$548.00

18049

PIPE-EXHAUST

59151-528

$127.70

32150

PIPE

32150-3784

Unavailable

49062

PIPE-COMP-EXHAUST

49062-3705

$283.77

49070

MUFFLER-COMP,WATER BOX

49070-3702

Unavailable

59081

MANIFOLD-EXHAUST

59081-3708

$389.81

92005

FITTING,HOSE

92005-3001

$10.71

92022

WASHER,8.4X23X2.5

92022-3744

$3.19

92037

CLAMP

92037-509

$4.88

92037A

CLAMP

92037-541

$7.79

92059

TUBE,9X190

92059-3021

Unavailable

92059A

TUBE,EXHAUST

92059-3722

Unavailable

92059B

TUBE,9X16X250

92059-502

$10.00

92059C

TUBE

92059-542

$139.53

92059D

TUBE

92059-543

Unavailable

92072

BAND

92072-511

Unavailable

92150

BOLT,6X70

92150-3753

$5.61

92150A

BOLT,6X50

92150-3762

Unavailable

92150B

BOLT,6X85

92150-3763

$8.07

92170

CLAMP

92170-3718

$10.33

92190

TUBE,L=860

92190-3718

Unavailable

153

BOLT-WS-SMALL

153R0820

$4.63

155

BOLT-WSP-SMALL

155R0845

$7.83

172

BOLT-STUD,8X35

172R0835

Unavailable

317

NUT

317R0800

$1.42

410

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

461

WASHER SPRING 8MM

461S0800

$0.57
