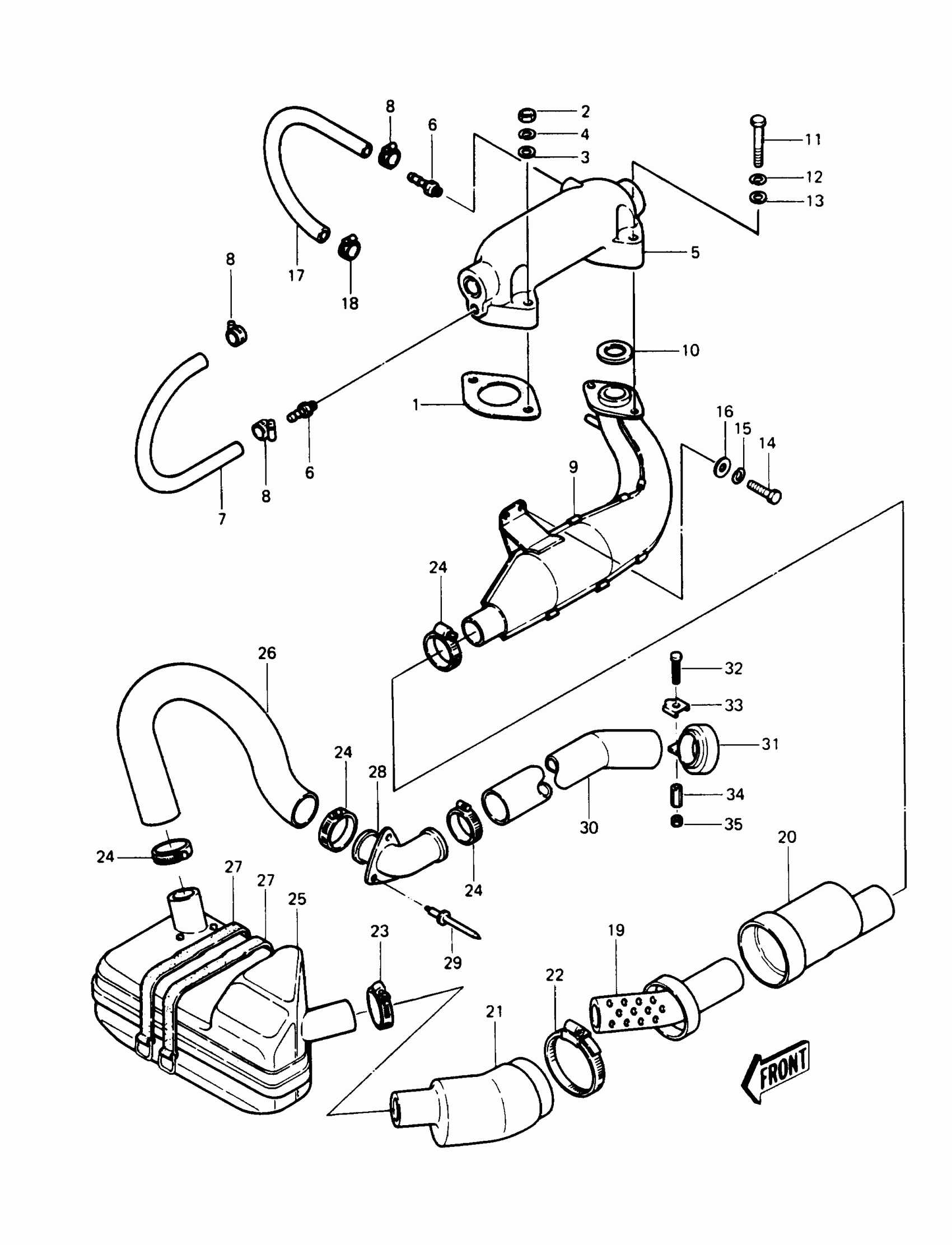

Kawasaki JS440 Muffler(JS440-A11/A12/A13) Diagram

#

Description
Price

10

GASKET,EXHAUST

18067-509

Unavailable

11

BOLT,8X45

110R0845

Unavailable

12

WASHER SPRING 8MM

461S0800

$0.57

13

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

14

BOLT,8X20

110R0820

Unavailable

15

WASHER SPRING 8MM

461S0800

$0.57

16

WASHER,8.4X23X2.5

92022-3744

$3.19

17

TUBE,9X16X250

92059-502

$10.00

18

CLAMP

92037-504

$10.33

19

PIPE-EXHAUST

59151-528

$127.70

20

TUBE

92059-542

$139.53

21

TUBE

92059-543

Unavailable

22

CLAMP

92037-541

$7.79

23

CLAMP

92037-509

$4.88

24

CLAMP

92037-509

$4.88

25

MUFFLER,WATER BOX

18001-3006

Unavailable

26

TUBE,EXHAUST

92059-528

Unavailable

27

BAND

92072-511

Unavailable

28

PIPE-TAIL,TAIL,EXHAUST

59156-506

$148.51

29

RIVET

92039-3701

$1.44

30

TUBE,EXHAUST,TAIL

92059-549

Unavailable

31

CLAMP

92037-545

Unavailable

32A

SCREW,6X45

92009-3747

Unavailable

33

WASHER

92095-513

Unavailable

34

NUT,6MM

92015-532

Unavailable

35

NUT-HEX,6MM

311R0600

$0.65

1

GASKET,EXHAUST

18067-502

Unavailable

2

NUT-HEX,8MM

311M0800

Unavailable

3

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

4

WASHER SPRING 8MM

461S0800

$0.57

5

PIPE-EXHAUST

18049-3006-YR

$226.17

6

FITTING,HOSE

92005-3001

$10.71

7

TUBE,9X190

92059-3021

Unavailable

8

CLAMP

92037-504

$10.33

9

MUFFLER

18001-520

$548.00
