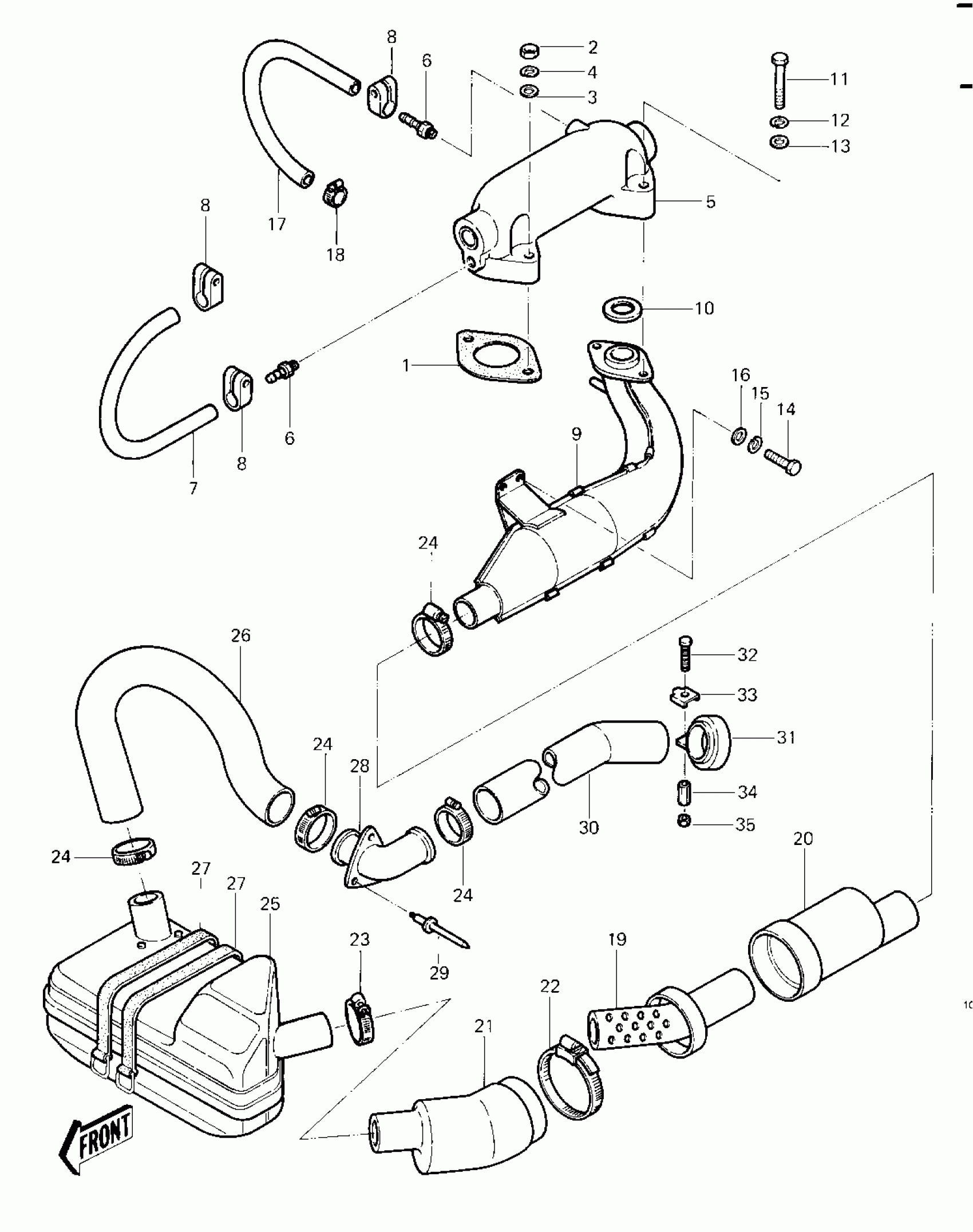

Kawasaki JS440 MUFFLER ('82-'83 JS440-A6/A7) Diagram

#

Description
Price

1

GASKET,EXHAUST

11060-3710

Unavailable

2

NUT-HEX,8MM

311M0800

$0.62

3

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

4

WASHER SPRING 8MM

461S0800

$0.65

5

PIPE-EXHAUST

18049-3006-YR

$222.30

6

FITTING,HOSE

92005-3001

$10.88

7

TUBE,9X190

92059-3021

Unavailable

8

CLAMP

92037-504

$13.67

9

MUFFLER

18001-520

$499.69

10

GASKET,EXHAUST

11009-3784

Unavailable

11

BOLT,8X45

110R0845

$6.40

12

WASHER SPRING 8MM

461S0800

$0.65

13

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

14

BOLT,8X20

110R0820

$4.67

15

WASHER SPRING 8MM

461S0800

$0.65

16

WASHER-PLAIN-SMALL,8MM

410S0800

$2.58

17

HOSE

92059-523

$10.51

18

CLAMP

92037-504

$13.67

19

PIPE-EXHAUST

59151-528

$116.78

20

TUBE

92059-542

$130.82

21

TUBE

92059-543

Unavailable

22

CLAMP

92037-541

$10.24

23

CLAMP

92037-506

$5.22

24

CLAMP

92037-509

$5.58

25

MUFFLER-COMP,WATER BOX

49070-3714

Unavailable

26

TUBE,EXHAUST

92059-528

Unavailable

27

BAND

92072-511

Unavailable

28

PIPE-TAIL,TAIL,EXHAUST

59156-506

$145.44

29

RIVET

59281-506

Unavailable

30

TUBE,EXHAUST,TAIL

92059-549

Unavailable

31

CLAMP

92037-545

Unavailable

32

SCREW,6X45

92009-3747

Unavailable

33

WASHER

92095-513

Unavailable

34

NUT,6MM

92015-532

Unavailable

35

NUT-HEX,6MM

311R0600

$0.70
