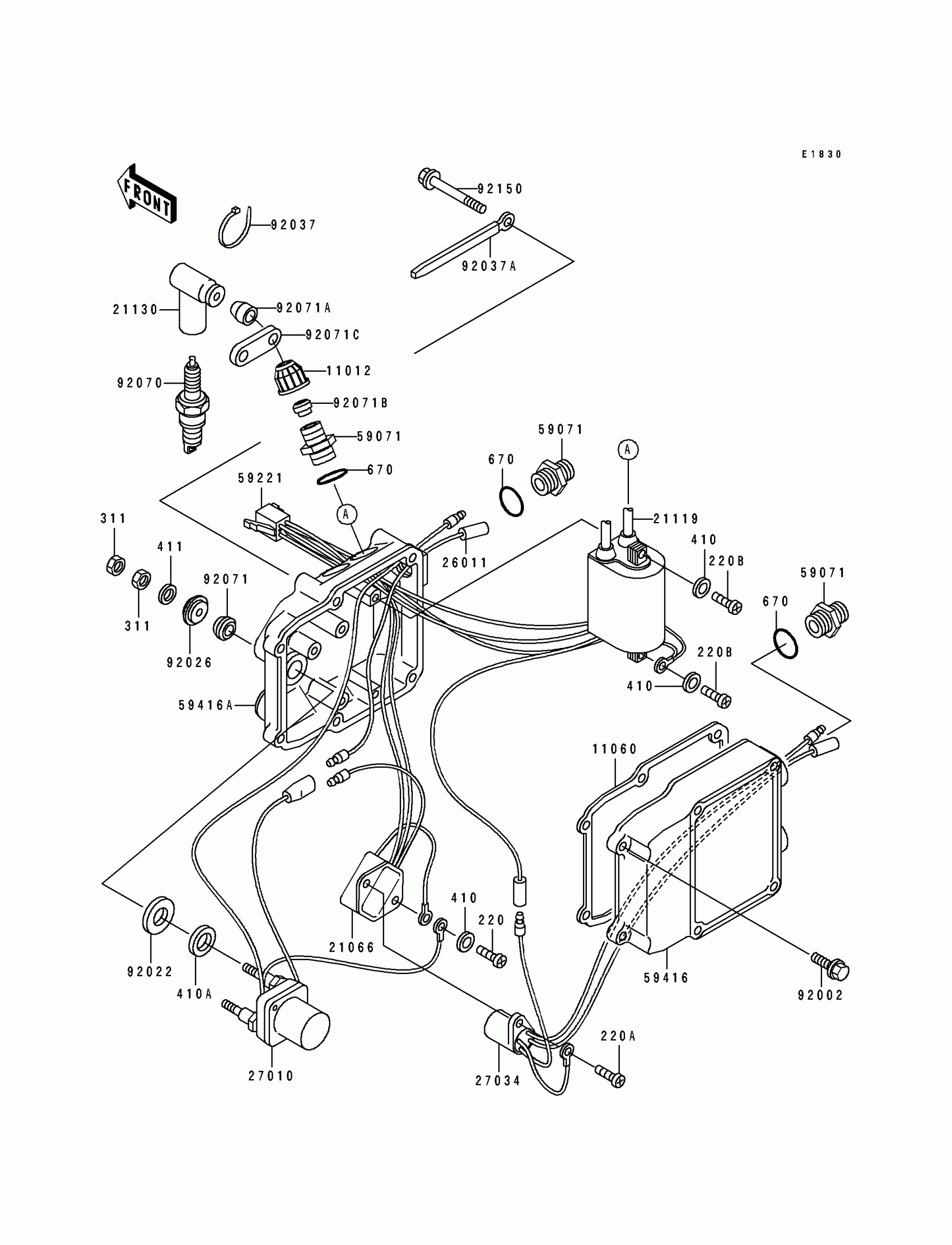

Kawasaki JS440 Ignition Coil(JS440-A15) Diagram

#

Description
Price

11012

CAP

11012-3005

$4.18

11060

GASKET,ELECTRIC CASE

11009-3781

$22.85

21066

REGULATOR-VOLTAGE

21066-3004

Unavailable

21119

IGNITER,CDI

21119-3016

Unavailable

21130

CAP-SPARK PLUG

21130-3704

$46.17

26011

WIRE-LEAD,ORANGE

26011-3003

Unavailable

27010

SWITCH,MAGNETIC

27010-3006

Unavailable

27034

RELAY,STOP SWITCH

27034-3002

Unavailable

59071

JOINT

59071-3001

$4.72

59221

CONNECTOR-CORD

59221-505

Unavailable

59416

CASE-ELECTRIC,RR

59416-3003-YR

$76.96

59416A

CASE-ELECTRIC,FR

59416-3004-YR

Unavailable

92002

BOLT,6X25

92002-3714

$3.81

92022

WASHER

92022-3035

$2.69

92026

SPACER

92026-3703

$3.57

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,L=100

92037-3736

$4.85

92070

PLUG-SPARK,BR7ES(NGK)

92070-3701

$3.66

92071

GROMMET

92071-3004

$3.05

92071A

GROMMET

92071-517

$0.73

92071B

GROMMET

92071-527

$5.13

92071C

GROMMET

92071-529

Unavailable

92150

BOLT,6X80

92150-3761

$8.92

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW-PAN-CROS,6X16

220B0616

Unavailable

220B

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

410A

WASHER PLAIN 10MM

410B1000

Unavailable

411

WASHER-PLAIN,6MM

411S0600

$1.49

670

O RING,16MM

670B2016

$1.04
