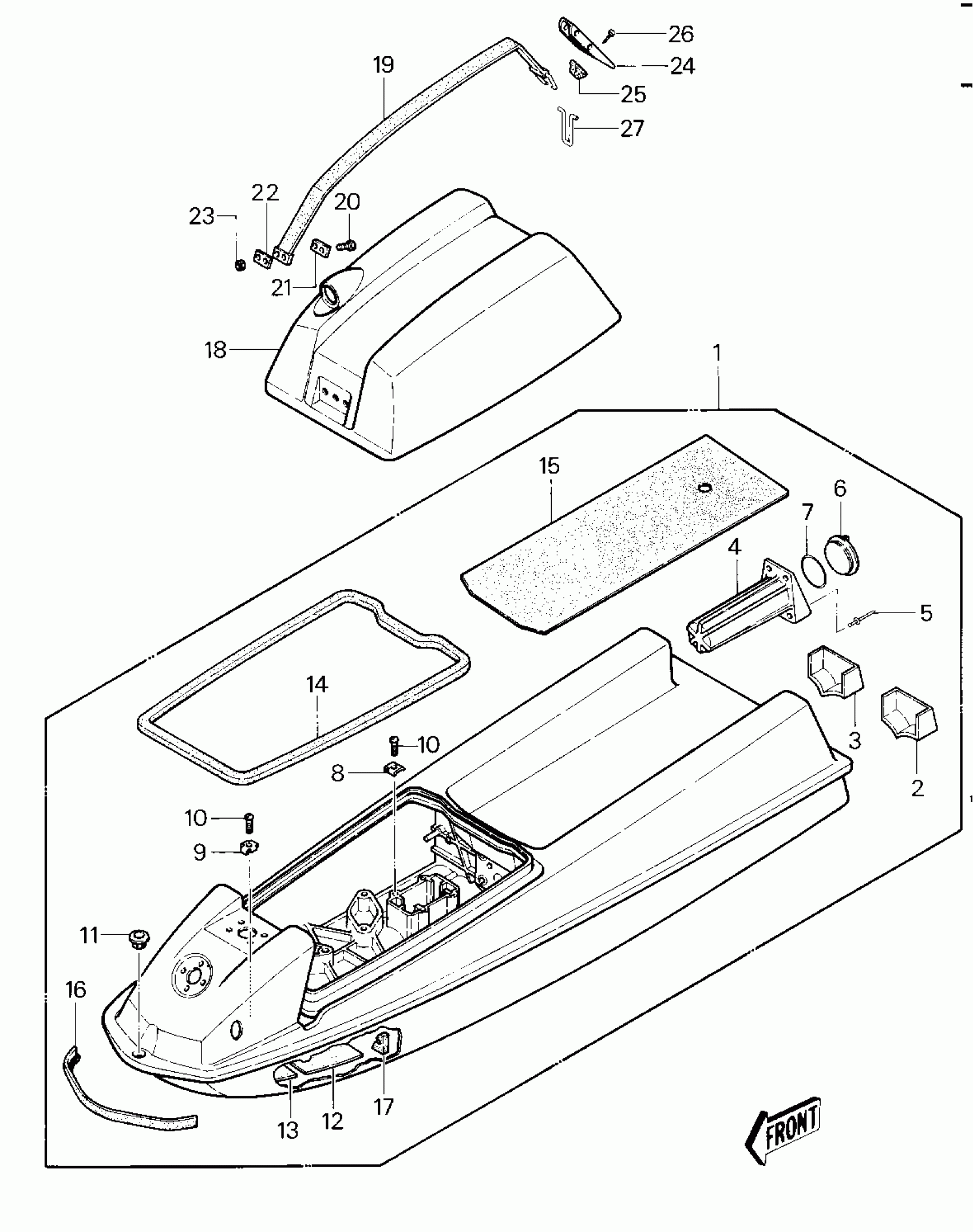

Kawasaki JS440 HULL/ENGINE HOOD ('82-'83 JS440-A6/A7) Diagram

#

Description
Price

1

HULL-ASSY,JET-WHITE

59431-3704-8C

$1,586.33

2

HULL,LH,EXTENSION,JET WHITE

59251-3006-8C

Unavailable

3

HULL,RH,EXTENSION,JET WHITE

59251-3005-8C

Unavailable

4

CASE-ASSY-FIRE

32099-5501

Unavailable

5

RIVET

59281-506

Unavailable

6

CAP,FIRE EXT.BLACK

11012-3724

Unavailable

7

O RING,85MM

671B2585

$7.47

8

HOOK

27012-501

Unavailable

9

HOOK

27012-502

Unavailable

10

SCREW,TAPPING

92011-561

Unavailable

11

BUSHING

92028-3013

$10.02

12

DAMPER,FUEL TANK

92075-521

Unavailable

13

DAMPER,MUFFLER

92075-522

Unavailable

14

GASKET,ENGINE HOOD

92065-539

$67.99

15

MAT

59131-502

Unavailable

16

BUMPER

59201-502

Unavailable

17

DETENT

59346-504

$8.73

18

HOOD-COMP-ENGINE,JET WHITE

59456-3719-8C

$486.56

19

BAND,HOOD

92072-3746

Unavailable

20

BOLT,6X30

92001-3022

Unavailable

21

BRACKET,PLATE

59086-501

$17.39

22

BRACKET,PLATE

59086-501

$17.39

23

NUT-HEX,6MM

311R0600

$0.75

24

LEVER

13168-3701

Unavailable

25

DETENT

59346-503

Unavailable

26

SCREW

92011-562

$1.42

27

HINGE

53009-503

$14.08
