1978 Kawasaki JS440 Handle Pole/cables Diagram

← All diagrams

Find the part on the Handle Pole/cables diagram for your 1978 Kawasaki JS440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

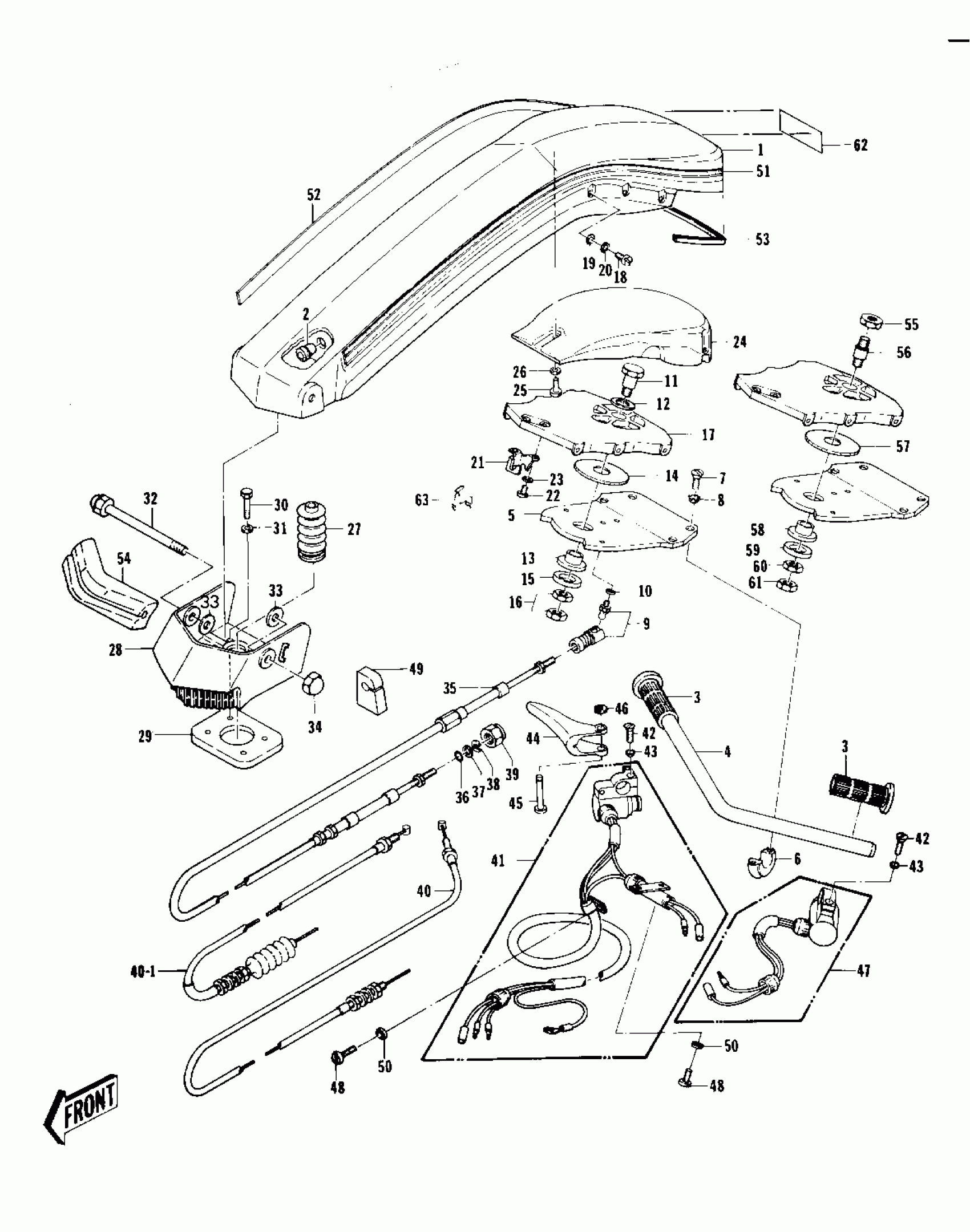

1978 Kawasaki JS440 Handle Pole/cables Diagram

#

Description
Price
Status
Order Qty

1

POLE-HANDLE,JET WHITE

59166-3002-8C

Out of stock

2

GROMMET

92071-530

Out of stock

3

GRIP,HANDLE,RH

46075-3704

Out of stock

4

HANDLEBAR

32032-3017

Out of stock

5

PLATE,HANDLEBAR

59086-542

Out of stock

5

PLATE,HANDLEBAR

59086-542

Out of stock

6

CLAMP,HANDLEBAR

92037-503

Out of stock

7

SCREW,8X25

221R0825

Out of stock

8

WASHER

92095-511

Out of stock

9

JOINT-BALL

59266-3707

Out of stock

10

WASHER-SPRING,6MM

461S0600

Out of stock

11

BOLT 18X46

92003-527

Out of stock

12

WASHER

92022-511

Out of stock

13

BUSH

92028-508

Out of stock

14

BUSH

92028-501

Out of stock

15

WASHER

92022-571

Out of stock

16

NUT 18M/M

92015-506

Out of stock

17

BRACKET,HANDLE SUPORT

59016-552

Out of stock

17

BRACKET,SUPPORT

11046-3847

Out of stock

17

BRACKET,SUPPORT

11046-3847

Out of stock

18

SCREW,6X18

220R0618

Out of stock

18

SCREW,6X18

220R0618

Out of stock

19

WASHER-PLAIN,6MM

411S0600

Out of stock

20

WASHER-SPRING,6MM

461S0600

Out of stock

21

HOLDER,CABLE

16065-509

Out of stock

22

SCREW-PAN-CROS,6X12

220R0612

Out of stock

22

SCREW-PAN-CROS,6X12

220R0612

Out of stock

23

WASHER-SPRING,6MM

461S0600

Out of stock

24

FLOAT

16031-506

Out of stock

25

SCREW

92011-562

Out of stock

26

WASHER

92022-563

Out of stock

27

CAP.

59176-514

Out of stock

28

BRACKET-HANDLE-POLE,S

39021-3701-F2

Out of stock

29

BRACKET,PLATE,HANDLE

59086-538

Out of stock

30

BOLT,8X30

92150-3721

Out of stock

31

WASHER-PLAIN,8MM

411S0800

Out of stock

32

BOLT,14X183

92001-3018

Out of stock

33

WASHER

92022-507

Out of stock

34

NUT,14MM

92015-507

Out of stock

35

CABLE,STEERING

59406-3001

Out of stock

35

CABLE,STEERING

59406-3001

Out of stock

36

O RING,11MM

670B2011

Out of stock

37

WASHER

92022-535

Out of stock

38

RING-SNAP

92036-501

Out of stock

39

NUT,20MM

92015-526

Out of stock

40

CABLE,THROTTLE

59206-505

Out of stock

40-1

CABLE,THROTTLE

59206-507

Out of stock

40-1

CABLE,THROTTLE

54012-3001

Out of stock

41

SWITCH,STOP

27010-3003

Out of stock

41

SWITCH,STOP

27010-3003

Out of stock

41

SWITCH,STOP

27010-3005

Out of stock

41

SWITCH,STOP

27010-3005

Out of stock

42

SCREW,OVL CNTSNK,6X22

222R0622

Out of stock

42

SCREW,OVL CNTSNK,6X22

222R0622

Out of stock

43

WASHER

92095-512

Out of stock

44

LEVER,THROTTLE

59126-509

Out of stock

45

PIN,THROTTLE

92043-3003

Out of stock

46

RING,SNAP

92036-518

Out of stock

47

SWITCH,START

27010-3004

Out of stock

47

SWITCH,START

27010-3004

Out of stock

47

SWITCH,START

27010-3004

Out of stock

48

SCREW,PAN HEAD,5X10

220R0510A

Out of stock

48

SCREW,PAN HEAD,5X10

220R0510A

Out of stock

49

DETENT

59346-504

Out of stock

50

WASHER-PLAIN,5MM

411S0500

Out of stock

51

DECAL-HANDLE POLE LH

56027-531

Out of stock

52

DECAL-HANDLE POLE RH

56027-530

Out of stock

53

GROMMET

92071-534

Out of stock

54

DAMPER

92075-519

Out of stock

55

NUT,16M/M

92015-536

Out of stock

56

STUD,PIVOT

92004-3003

Out of stock

56

STUD,PIVOT

92004-3003

Out of stock

57

BUSHING

92028-512

Out of stock

58

BUSHING

92028-513

Out of stock

59

WASHER

92022-571

Out of stock

60

NUT,18M/M

92015-537

Out of stock

61

NUT 18M/M

92015-506

Out of stock

62

LABEL-SFTY-HNDL POLE

56022-507

Out of stock

63

HOLDER,THROTTLE CABLE

16065-517

Out of stock
