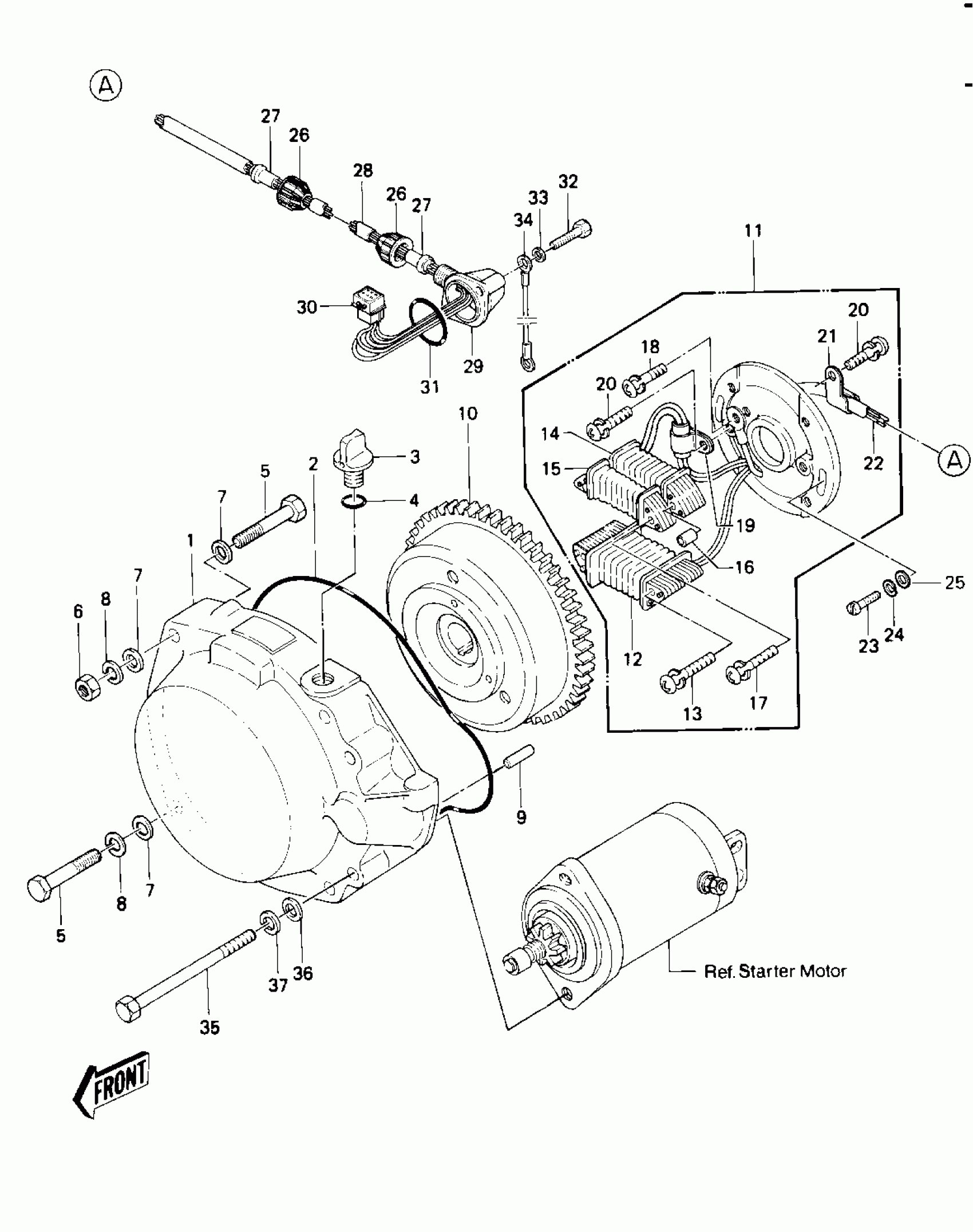

Kawasaki JS440 GENERATOR (JS440-A6) Diagram

#

Description
Price

1

COVER-GENERATOR

14031-3705

Unavailable

2

RING-O

92055-521

Unavailable

3

BREATHER

14069-3709

Unavailable

4

RING-O

92055-515

$2.29

5

BOLT 8X50

110R0850

Unavailable

6

NUT 8MM

311R0800

Unavailable

7

WASHER-PLAIN-SMALL,8MM

410S0800

$1.68

8

WASHER SPRING 8MM

461S0800

$0.66

9

UNAVAILABLE IN PRICE BOOK

551S0612

Unavailable

10

FLYWHEEL ASSY,MAGNETO

21050-3015

$528.03

11

STATOR ASSY,MAGNETO

21003-3009

$592.78

12

COIL,CHARGE

59031-3001

$106.27

13

SCREW,5X34

92011-530

Unavailable

14

COIL,EXCITING

21049-3006

$98.20

15

COIL,PULSING

59026-3006

$106.27

16

COLLAR-COIL

92027-3008

$2.20

17

SCREW

92009-3006

$2.31

18

SCREW 4X6

92011-559

$0.28

19

CLAMP

92037-520

Unavailable

20

SCREW,4X8

92011-560

Unavailable

21

CLAMP

92037-547

Unavailable

22

HARNESS,WIRING

26001-3006

Unavailable

23

SCREW-PAN-CROS

220B0520

$0.71

24

WASHER SPRING 5MM

461F0500

Unavailable

25

WASHER

92022-544

$2.19

26

CAP

11012-3012

Unavailable

27

GROMMET

92071-3001

Unavailable

28

TUBE,10X345

92059-3032

$19.22

29

CAP.

59176-517-YR

Unavailable

30

CONNECTOR-CORD

59221-506

Unavailable

31

RING-O,35.2X1.9

92055-520

$4.21

32

BOLT 6X35

110R0635

Unavailable

33

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

34

WIRE-LEAD,BLACK

26011-3006

Unavailable

35

BOLT,8X80

92001-3011

Unavailable

36

WASHER-PLAIN-SMALL,8MM

410S0800

$1.68

37

WASHER SPRING 8MM

461S0800

$0.66
