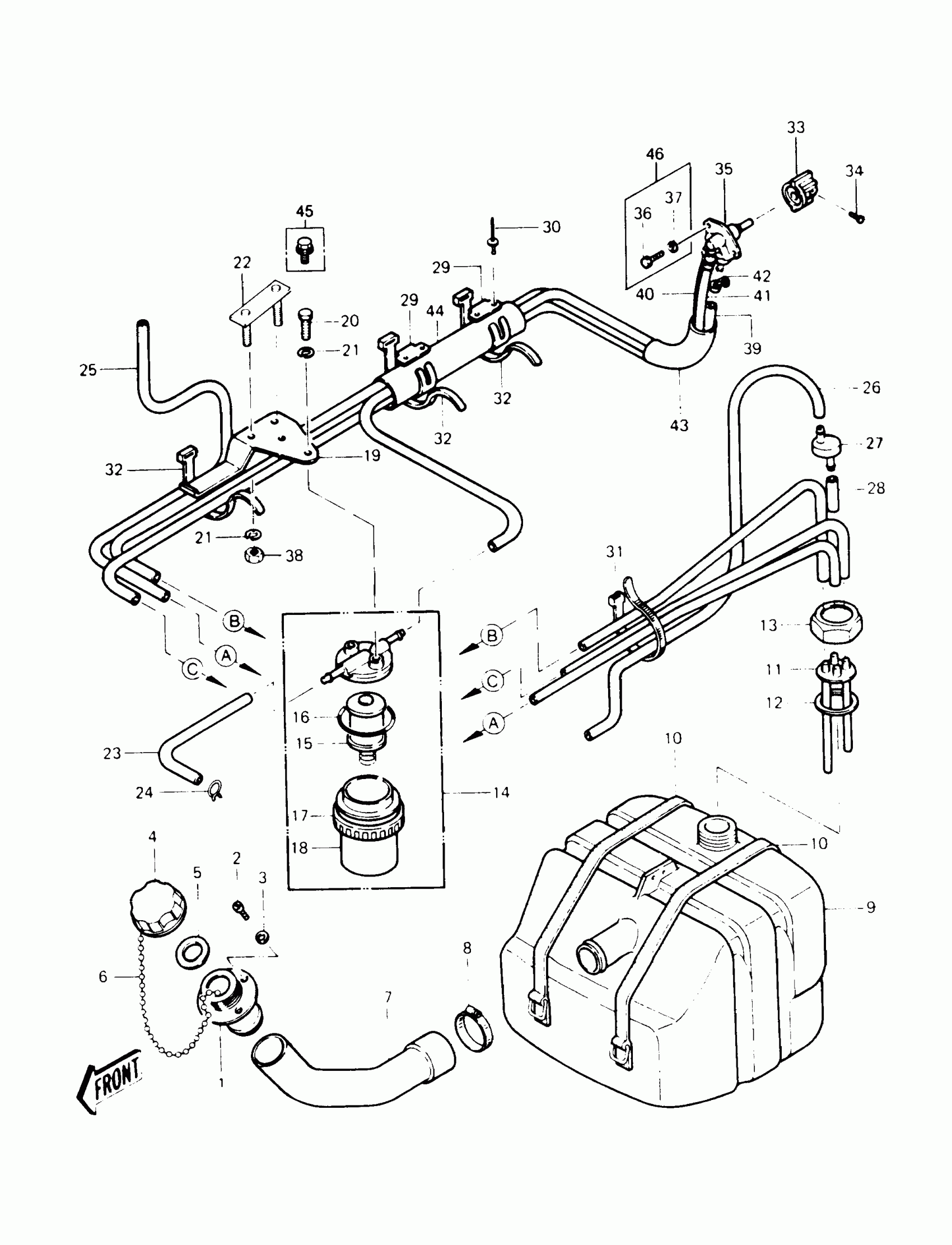

Kawasaki JS440 FUEL TANK Diagram

#

Description
Price

10

BAND,FUEL TANK

92072-521

Unavailable

11A

PIPE-COMP,FUEL

31064-3703

Unavailable

12

GASKET

92065-504

$11.62

13

RETAINER

23072-501

Unavailable

14A

FILTER-FUEL

49019-3706

Unavailable

16

RING-O,FILTER CUP

92055-3006

Unavailable

17

NUT,RING

92015-3013

Unavailable

18A

CUP,FUEL FILTER

51036-3702

Unavailable

19

BRACKET,FUEL FILTER

11034-3007

Unavailable

21

WASHER-SPRING,6MM

461S0600

$0.84

22

BRACKET

11034-3701

Unavailable

23

TUBE,6X10X200

92059-3011

Unavailable

24

CLAMP

92037-3024

$2.58

25

TUBE,6X10X760

92059-3012

$10.61

26

TUBE,FUEL,6X10X940

92059-3025

Unavailable

27

VALVE-RELIEF

49057-3001

$58.19

28

TUBE,5.8X12.2X55

92059-3026

Unavailable

29

CLAMP,TUBE

92037-3005

$4.41

30

RIVET

92039-3702

Unavailable

31

BAND,L=123

92072-030

$3.81

32

BAND,L=149

92072-031

$3.81

33

KNOB,FUEL TAP

92077-503

Unavailable

34A

SCREW,4X8

92009-3729

$6.54

1

FILLER,FUEL TANK

59231-3001

$13.40

2

SCREW

92011-562

$1.23

3

WASHER

92022-563

$0.90

4

CAP-TANK

51049-3001

$8.22

5

GASKET,TANK CAP

11009-3020

$10.26

6A

CHAIN,COVER,L=100

92057-3704

$14.56

7

TUBE,FUEL INLET

92059-3020

Unavailable

8

CLAMP

92037-3009

$3.25

9

TANK-FUEL

51004-3702

Unavailable

35

TAP-ASSY,FUEL

51023-3705

Unavailable

38

NUT-HEX,6MM

311R0600

$0.65

39

TUBE,FUEL,"ON",6X1180

92059-3005

Unavailable

40

TUBE,FUEL,"RESERVE"

92059-3006

Unavailable

41

TUBE,6X10X960

92059-3007

Unavailable

42

CLAMP

92037-551

$2.58

43

TUBE,GUARD

92059-3008

Unavailable

44

TUBE,VINYL,22X350

92059-3018

$31.05

45

BOLT,6X12

92150-3709

Unavailable

46

BOLT,5X12

92150-3760

$8.61
