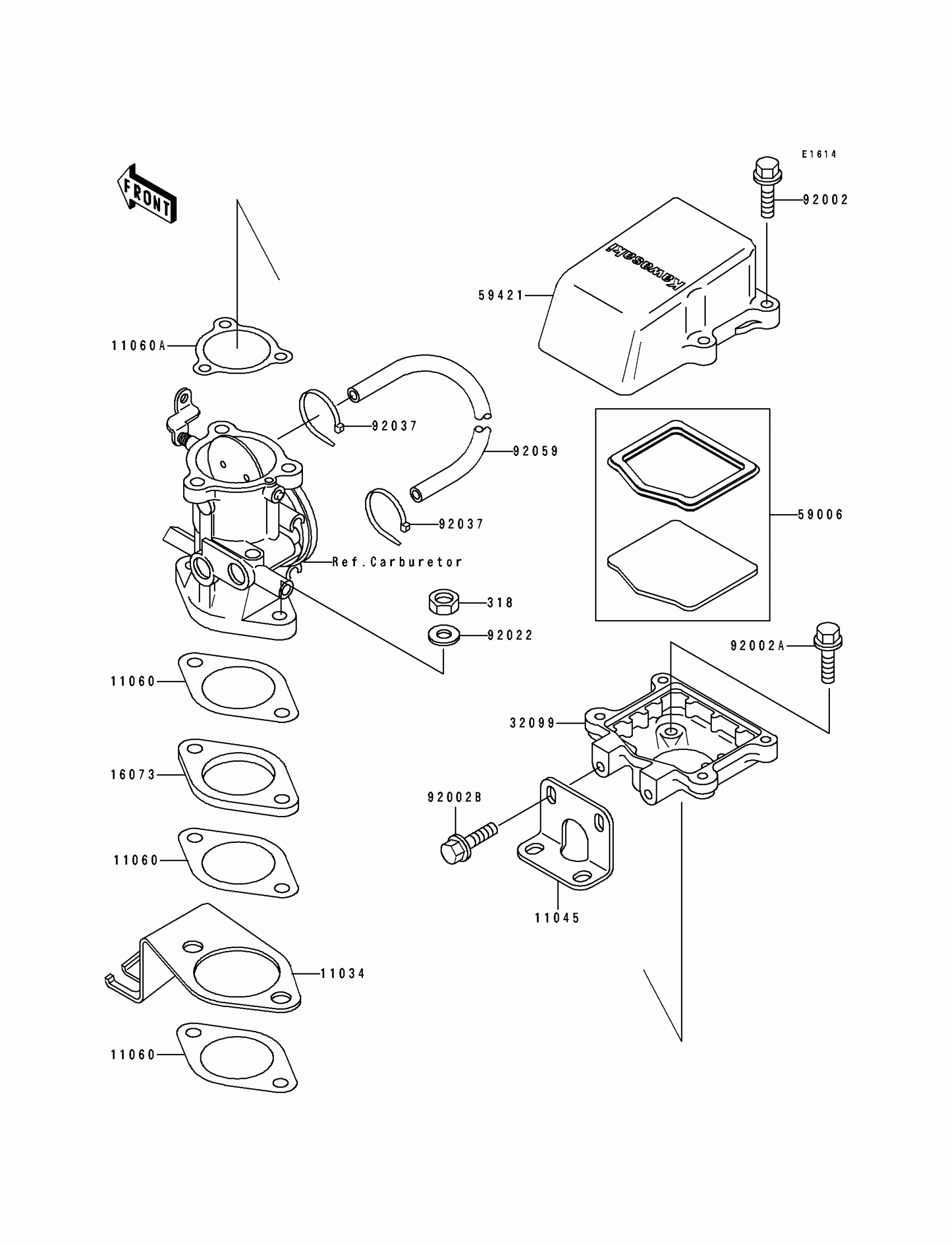

Kawasaki JS440 Flame Arrester Diagram

Description

Price

11034

BRACKET,CONTROL

11034-3004

Unavailable

11045

BRACKET

11034-3011

Unavailable

11060

GASKET,INSULATOR

11009-3786

Unavailable

11060A

GASKET,ARRESTER CASE

11060-3702

Unavailable

16073

INSULATOR

16061-511

Unavailable

32099

CASE,FLAME ARRESTER

32099-3702

$45.34

59006

ARRESTER-FLAME

59006-3706

$79.20

59421

COVER-INTAKE

59421-3703

$52.63

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X20

92002-3755

$3.57

92002B

BOLT,6X12

92002-3763

$3.57

92022

WASHER,PLAIN,8MM

92022-3043

$2.03

92037

CLAMP

92037-1173

$2.58

92059

TUBE,PULS

92059-518

Unavailable

318

NUT-HEX-SMALL

318R0800

$3.19
