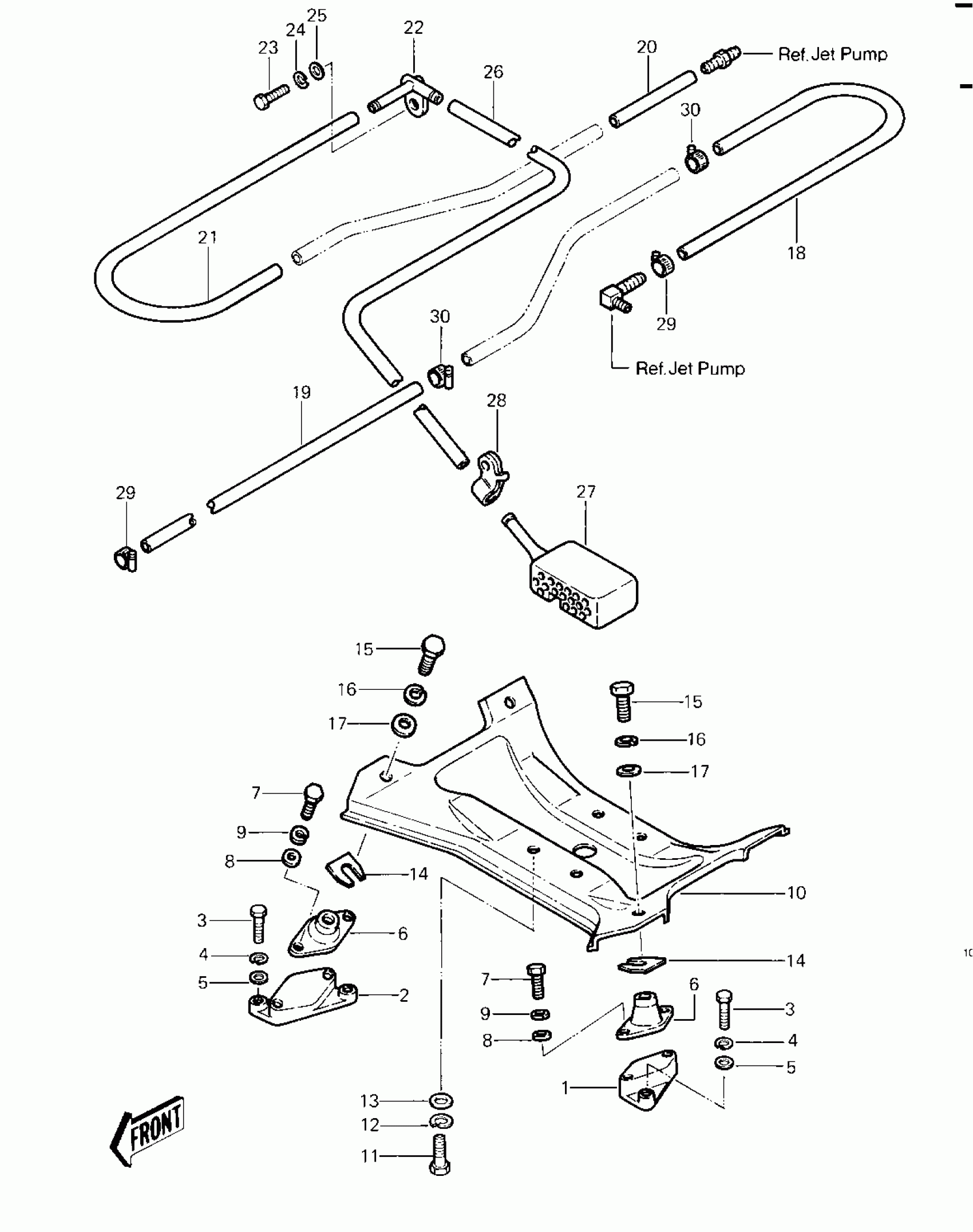

Kawasaki JS440 ENGINE MOUNT/COOLING & BILGE ('82-'83 J Diagram

#

Description
Price

1

BRACKET,ENGINE MOUNT

59016-532

Unavailable

2

BRACKET,ENGINE MOUNT

59016-533

Unavailable

3

BOLT,8X20

110R0820

Unavailable

4

WASHER SPRING 8MM

461S0800

$0.66

5

WASHER-PLAIN,8MM

411S0800

$2.49

6

DAMPER,ENGINE MOUNT

92160-3756

Unavailable

7

BOLT,8X20

110R0820

Unavailable

8

WASHER-PLAIN,8MM

411S0800

$2.49

9

WASHER SPRING 8MM

461S0800

$0.66

10

MOUNT-ENGINE

59181-509-9G

$132.60

11

BOLT,1/2"X31

92003-533

Unavailable

12

WASHER-SPRING,14MM

461S1400

Unavailable

13

WASHER-PLAIN,14MM

411S1400

$4.49

14

SHIM,T=0.3MM

92025-3701

Unavailable

14

SHIM,T=0.5MM

92025-3702

Unavailable

14

SHIM,T=1.0MM

92025-3703

Unavailable

14

SHIM,T=1.5MM

92025-3704

Unavailable

15

BOLT,10X25

110R1025

Unavailable

16

WASHER-SPRING,10MM

461S1000

$0.97

17

WASHER,32X10.5X4

92022-3023

$7.02

18

TUBE,9X360

92059-503

Unavailable

19

TUBE,9X280

92059-535

Unavailable

20

TUBE,9X90

92059-557

Unavailable

21

TUBE,9X280

92059-535

Unavailable

22

BREATHER,BILGE

14069-3001

Unavailable

23

BOLT,8X25

110R0825

Unavailable

24

WASHER SPRING 8MM

461S0800

$0.66

25

WASHER,PLAIN

92022-3026

$2.92

26

TUBE,9X280

92059-535

Unavailable

27

FILTER,BILGE

59236-504

Unavailable

28

CLAMP

92037-537

$8.71

29

CLAMP

92037-504

$10.76

30

CLAMP

92037-504

$10.76
