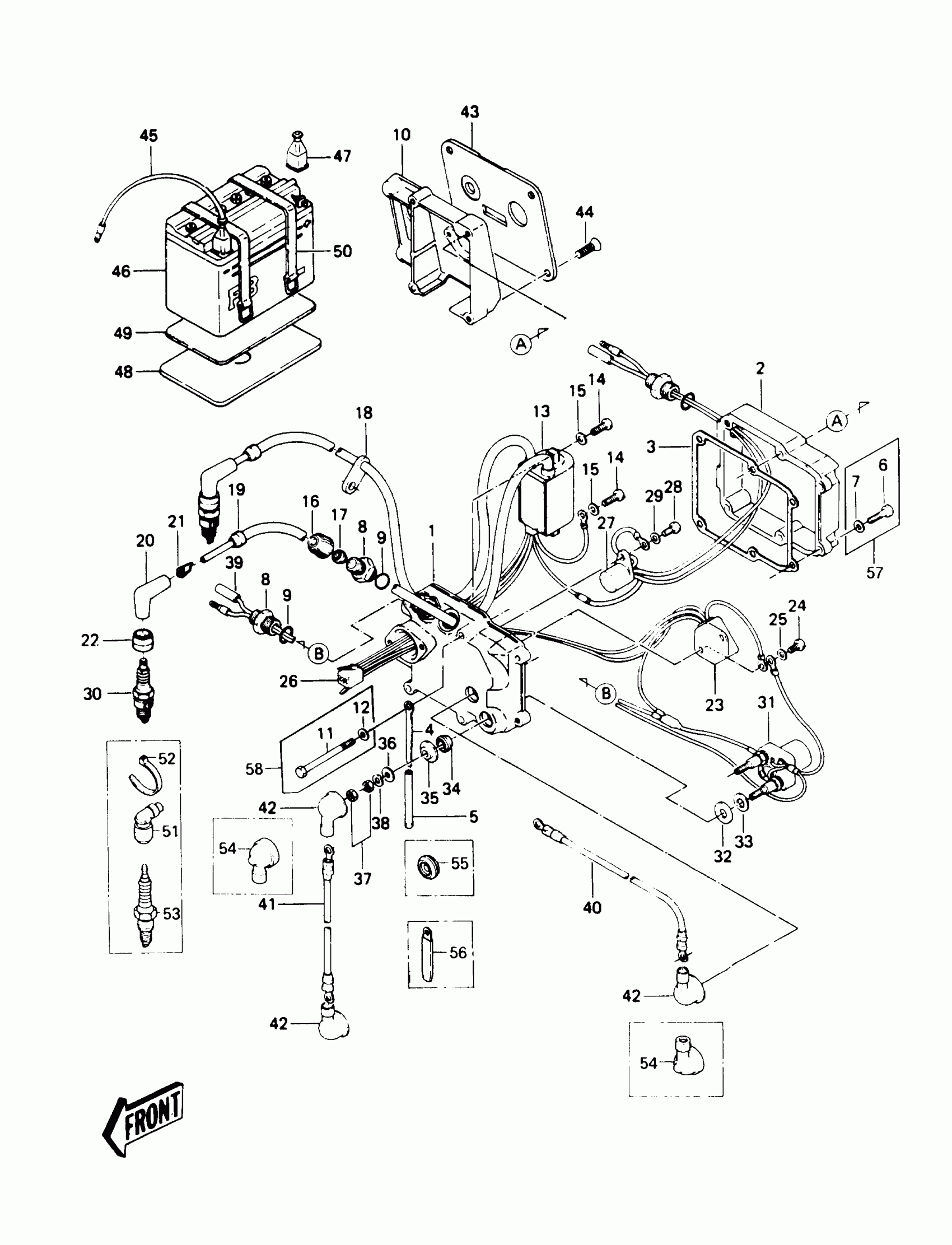

Kawasaki JS440 Electric Case Diagram

#

Description
Price

10A

CASE,FUEL TAP

32099-3735

$156.88

13

IGNITER,CDI

21119-3016

Unavailable

14

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

15

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

16

CAP

11012-3005

$4.39

17

GROMMET

92071-527

$5.44

18

GROMMET

92071-529

Unavailable

19

GROMMET

92071-517

$0.73

23

REGULATOR-VOLTAGE

21066-3004

Unavailable

24

SCREW PAN HEAD 6X12

220B0612

Unavailable

25

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

26

CONNECTOR-CORD

59221-505

Unavailable

27

RELAY,STOP SWITCH

27034-3002

Unavailable

28

SCREW-PAN-CROS,6X16

220B0616

Unavailable

29

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

31

SWITCH,MAGNETIC

27010-3006

Unavailable

32

WASHER

92022-3035

$2.92

33

WASHER PLAIN 10MM

410B1000

Unavailable

34

GROMMET

92071-3004

$3.18

37

NUT-HEX,6MM

311R0600

$0.75

38

WASHER-PLAIN,6MM

411S0600

$1.73

39

WIRE-LEAD,ORANGE

26011-3003

Unavailable

1A

CASE-ELECTRIC,FR

59416-3004-YR

Unavailable

2

CASE-ELECTRIC,RR

59416-3003-YR

$76.96

3

GASKET,ELECTRIC CASE

11009-3045

Unavailable

8

JOINT

59071-3001

$4.98

9

O RING,16MM

670B2016

$1.20

40

WIRE-LEAD,BATTERY(+)

26011-3004

Unavailable

41

WIRE-LEAD,STARTER

26011-3005

Unavailable

42

CAP

11012-3004

$7.44

43

PANEL-CONTROL

59226-505

Unavailable

44

SCREW-COUNTERSUNK,8X22

92009-3004

$5.96

45

WIRE-LEAD,BATTERY GROUND

26011-3001

Unavailable

46A

BATTERY,YB16CL-B,12V 19AH

26012-3707

$126.40

47

CAP.,TERMINAL

59176-501

Unavailable

48

PLATE,BATTERY

13169-3014

Unavailable

49

DAMPER,BATTERY

92075-509

Unavailable

50

BAND,BATTERY,L=332

92072-3714

Unavailable

51A

CAP-SPARK PLUG

21130-1062

$30.43

52

CLAMP

92037-1173

$2.92

53

PLUG-SPARK,BR7ES(NGK)

92070-3701

$3.66

54

CAP,LEAD WIRE

11012-3726

$7.71

55

SPACER

92026-3703

$3.72

56

CLAMP,L=100

92037-3736

$4.85

57

BOLT,6X25

92002-3714

$3.97

58

BOLT,6X80

92150-3761

Unavailable
