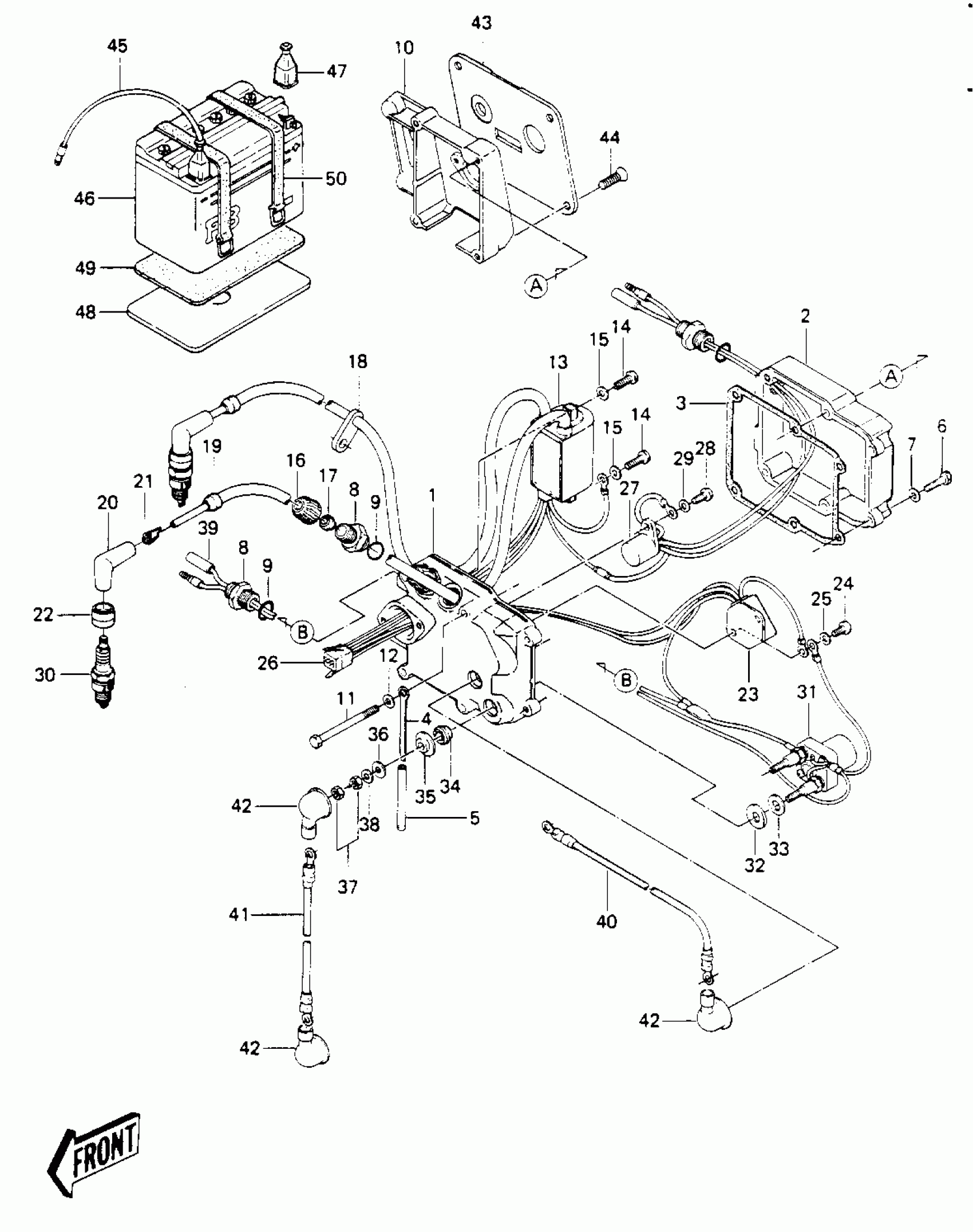

Kawasaki JS440 ELECTRIC CASE ('84-'86 JS440-A8/A9 Diagram
#
Description
Price
1
CASE-ELECTRIC,FR
59416-3004-YR
Unavailable
5
TUBE,VINYL,5X73
92059-3017
Unavailable
6
BOLT,6X25
110R0625
Unavailable
11
BOLT,6X80
110R0680
Unavailable
13
IGNITER,CDI
21119-3016
Unavailable
18
GROMMET
92071-529
Unavailable
21
TERMINAL
21169-2057
Unavailable
23
REGULATOR-VOLTAGE
21066-3004
Unavailable
24
SCREW PAN HEAD 6X12
220B0612
Unavailable
26
CONNECTOR-CORD
59221-505
Unavailable
27
RELAY,STOP SWITCH
27034-3002
Unavailable
28
SCREW-PAN-CROS,6X16
220B0616
Unavailable
31
SWITCH,MAGNETIC
27010-3007
Unavailable
33
WASHER PLAIN 10MM
410B1000
Unavailable
35
WASHER
92022-3036
Unavailable
39
WIRE-LEAD,ORANGE
26011-3003
Unavailable
40
WIRE-LEAD,BATTERY(+)
26011-3778
Unavailable
41
WIRE-LEAD,STARTER
26011-3005
Unavailable
43
PANEL-CONTROL
59226-3702
Unavailable
45
WIRE-LEAD,BATTERY(-)
26011-3776
Unavailable
46
FB BAT 12N16-3B
26012-1013
Unavailable
47
CAP.,TERMINAL
59176-501
Unavailable
48
PLATE,BATTERY
13169-3014
Unavailable
49
DAMPER,BATTERY
92075-509
Unavailable
50
BAND,BATTERY,L=306
92072-512
Unavailable
