1978 Kawasaki JS440 Electric Case Diagram

← All diagrams

Find the part on the Electric Case diagram for your 1978 Kawasaki JS440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

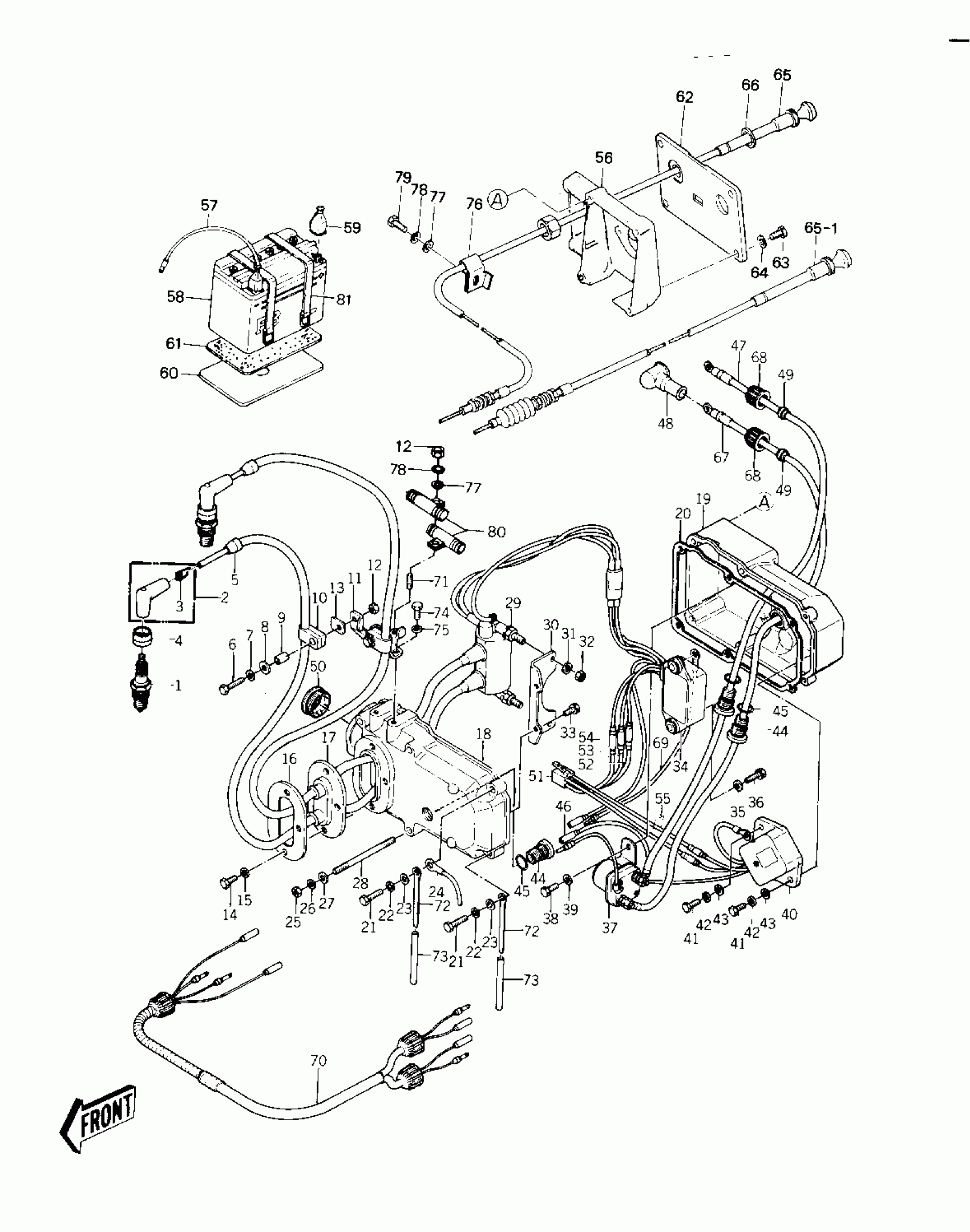

1978 Kawasaki JS440 Electric Case Diagram

#

Description
Price
Status
Order Qty

1

SPARK PLUG B7ES

B7ES

Out of stock

1

SPARK PLUG BR7ES

BR7ES

Out of stock

2

CAP,PLUG

21130-504

Out of stock

2

CAP-SPARK PLUG

21130-508

Out of stock

3

SPRING,PLUG CAP

92081-542

Out of stock

4

COVER,PLUG

92071-501

Out of stock

4

GROMMET,SPARK PLUG

92071-535

Out of stock

5

GROMMET

92071-517

Out of stock

5

GROMMET

92071-517

Out of stock

6

UNAVAILABLE IN PRICE BOOK

110R06030

Out of stock

7

WASHER-PLAIN,6MM

411S0600

Out of stock

8

WASHER

92022-553

Out of stock

9

COLLAR

92027-519

Out of stock

10

CLAMP

92037-523

Out of stock

11

BRACKET,CLAMP

59016-514

Out of stock

11

BRACKET,CLAMP

11034-3005

Out of stock

12

NUT-HEX,6MM

311R0600

Out of stock

12

NUT-HEX,6MM

311R0600

Out of stock

13

WASHER

92022-553

Out of stock

14

BOLT,6X14

110R0614

Out of stock

15

WASHER-SPRING,6MM

461S0600

Out of stock

16

PLATE-ELECTRICAL CASE

59086-516

Out of stock

17

GROMMET

92071-526

Out of stock

18

CASE,ELECTRIC (1)

59021-531

Out of stock

18

CASE,ELECTRIC

59416-3001

Out of stock

19

CASE,ELECTRIC (2)

59021-532

Out of stock

20

GASKET,CASE

11009-3024

Out of stock

21

BOLT,6X25

110R0625

Out of stock

22

WASHER-SPRING,6MM

461S0600

Out of stock

23

WASHER-PLAIN-SMALL,6MM

410S0600

Out of stock

24

WIRE,EARTH

26011-505

Out of stock

25

NUT-HEX,6MM

311R0600

Out of stock

25

NUT-HEX,6MM

311R0600

Out of stock

26

WASHER-SPRING,6MM

461S0600

Out of stock

27

WASHER-PLAIN,6MM

411S0600

Out of stock

28

STUD,6X98

92004-3007

Out of stock

29

COIL,IGNITION

21121-518

Out of stock

29

COIL,IGNITION

21121-518

Out of stock

30

BRACKET,COIL

59016-521

Out of stock

31

WASHER SPRING 6MM

461F0600

Out of stock

32

NUT 6MM

311B0600

Out of stock

33

BOLT-UPSET-WS

180B0614

Out of stock

34

IGNITER

21119-3004

Out of stock

34

IGNITER

21119-3004

Out of stock

35

WASHER,IGNITER

92022-3013

Out of stock

35

WASHER,IGNITER

92022-3013

Out of stock

36

BOLT-UPSET-WS

180B0622

Out of stock

37

SWITCH,MAGNETIC

21164-515

Out of stock

38

BOLT SMALL

114G0812

Out of stock

39

WASHER SPRING 5MM

461F0500

Out of stock

40

REGULATOR

21066-501

Out of stock

41

BOLT-UPSET 6X14

112B0614

Out of stock

42

WASHER SPRING 6MM

461F0600

Out of stock

43

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

44

JOINT

59071-516

Out of stock

45

O RING,16MM

670B2016

Out of stock

46

WIRE,LEAD

26011-516

Out of stock

47

WIRE,BATTERY

26011-511

Out of stock

47

WIRE,LEAD,BATTERY

26011-3002

Out of stock

48

CAP,STARTER

59176-506

Out of stock

49

GROMMET

92071-527

Out of stock

50

JOINT

59071-517

Out of stock

51

CONNECTOR-CORD

59221-505

Out of stock

52

WIRE,LEAD

26011-513

Out of stock

53

WIRE,LEAD

26011-514

Out of stock

54

WIRE,LEAD

26011-515

Out of stock

55

WIRE,LEAD

26011-512

Out of stock

56

CASE,FUEL TAP

32099-3752

Out of stock

57

WIRE,BATTERY EARTH

26011-501

Out of stock

58

FB BAT 12N16-3B

26012-1013

Out of stock

58

FB BAT 12N16-3B

26012-1013

Out of stock

59

CAP.,TERMINAL

59176-501

Out of stock

60

PLATE-BATTERY

59086-520

Out of stock

61

DAMPER,BATTERY

92075-509

Out of stock

62

PANEL-CONTROL

59226-3702

Out of stock

63

SCREW,8X22

213R0822

Out of stock

63

SCREW,OVL CNTSNK,8X22

222R0822

Out of stock

64

WASHER

92095-511

Out of stock

65

CABLE,CHOKE

59401-3001

Out of stock

65

CABLE,CHOKE

59401-3001

Out of stock

65-1

CABLE,CHOKE

59401-3001

Out of stock

66

GASKET

92065-538

Out of stock

67

WIRE,BATTERY

26011-511

Out of stock

67

WIRE,LEAD,STARTER

26011-519

Out of stock

68

CAP

11012-3012

Out of stock

69

WIRE,LEAD,STOP SW GRO

26011-517

Out of stock

70

HARNESS,SWITCH

26001-3005

Out of stock

71

STUD,6X20

171R0620

Out of stock

72

CLAMP,L=100

92037-3736

Out of stock

73

TUBE,VINYL,5X73

92059-3017

Out of stock

74

BOLT,6X14

110R0614

Out of stock

75

WASHER-SPRING,6MM

461S0600

Out of stock

76

CLAMP,CHOKE CABLE

92037-544

Out of stock

77

WASHER-PLAIN,6MM

411S0600

Out of stock

78

WASHER-SPRING,6MM

461S0600

Out of stock

79

BOLT 6X12

110R0612

Out of stock

80

CASE,CONNECTOR

32099-3002

Out of stock

81

BAND,BATTERY,L=306

92072-512

Out of stock
