1990 Kawasaki JS440 Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1990 Kawasaki JS440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

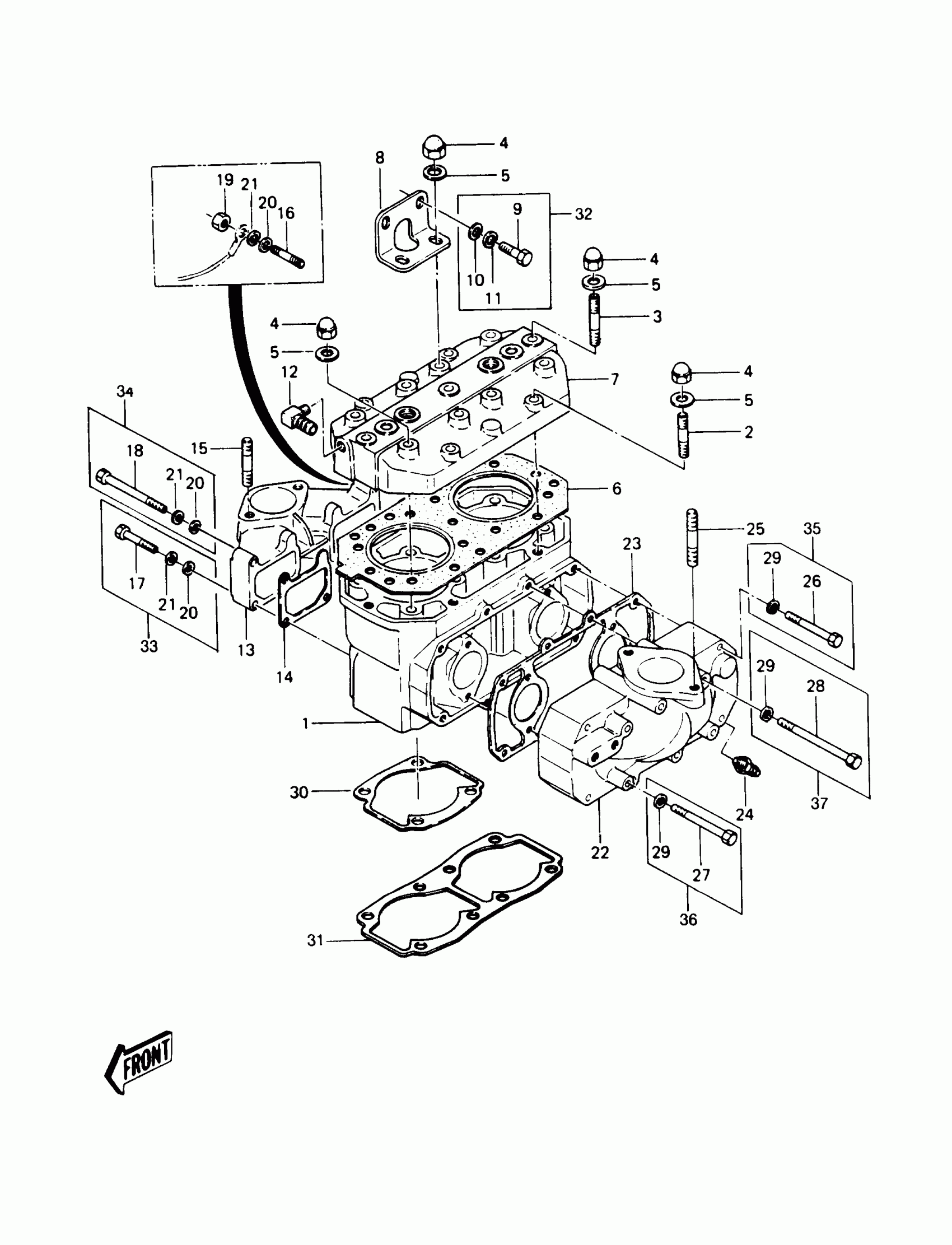

1990 Kawasaki JS440 Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12

ELBOW

52014-3002

1
Out of stock

13

MANIFOLD-INTAKE

59076-505-YR

1
Out of stock

14

GASKET,INTAKE

16062-510

1
Out of stock

15

BOLT-STUD,8X35

172R0835

1
Out of stock

16

BOLT-STUD,6X35

171R0635

1
Out of stock

19

NUT-HEX,6MM

311R0600

1
Out of stock

20

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock

21

WASHER-SPRING,6MM

461S0600

1
Out of stock

22

MANIFOLD-EXHAUST

59081-504-YR

1
Out of stock

23

GASKET,EXHAUST MANIFOLD

11009-3023

1
Out of stock

24

FITTING,HOSE

92005-3001

1
Out of stock

25

BOLT-STUD,8X35

172R0835

1
Out of stock

31

GASKET,CYLINDER

11009-3054

1
Out of stock

32

BOLT,6X12

92002-3763

1
Out of stock

33

BOLT,6X35

92002-3715

1
Out of stock

34

BOLT,6X70

92150-3753

1
Out of stock

35

BOLT,6X50

92150-3762

1
Out of stock

36

BOLT,6X70

92150-3753

1
Out of stock

37

BOLT,6X85

92150-3763

1
Out of stock

1A

CYLINDER-ENGINE

11005-3704

1
Out of stock

2

STUD,8X42

92004-3016

1
Out of stock

3

STUD,8X50

92004-3017

1
Out of stock

4A

NUT,CAP,8MM

92015-1371

1
Out of stock

5A

WASHER,8.2X18X1.5

92022-1964

1
Out of stock

6

GASKET-HEAD

11004-3019

1
Out of stock

7

HEAD-COMP-CYLINDER

11008-3002-YR

1
Out of stock

8

BRACKET

11034-3011

1
Out of stock
