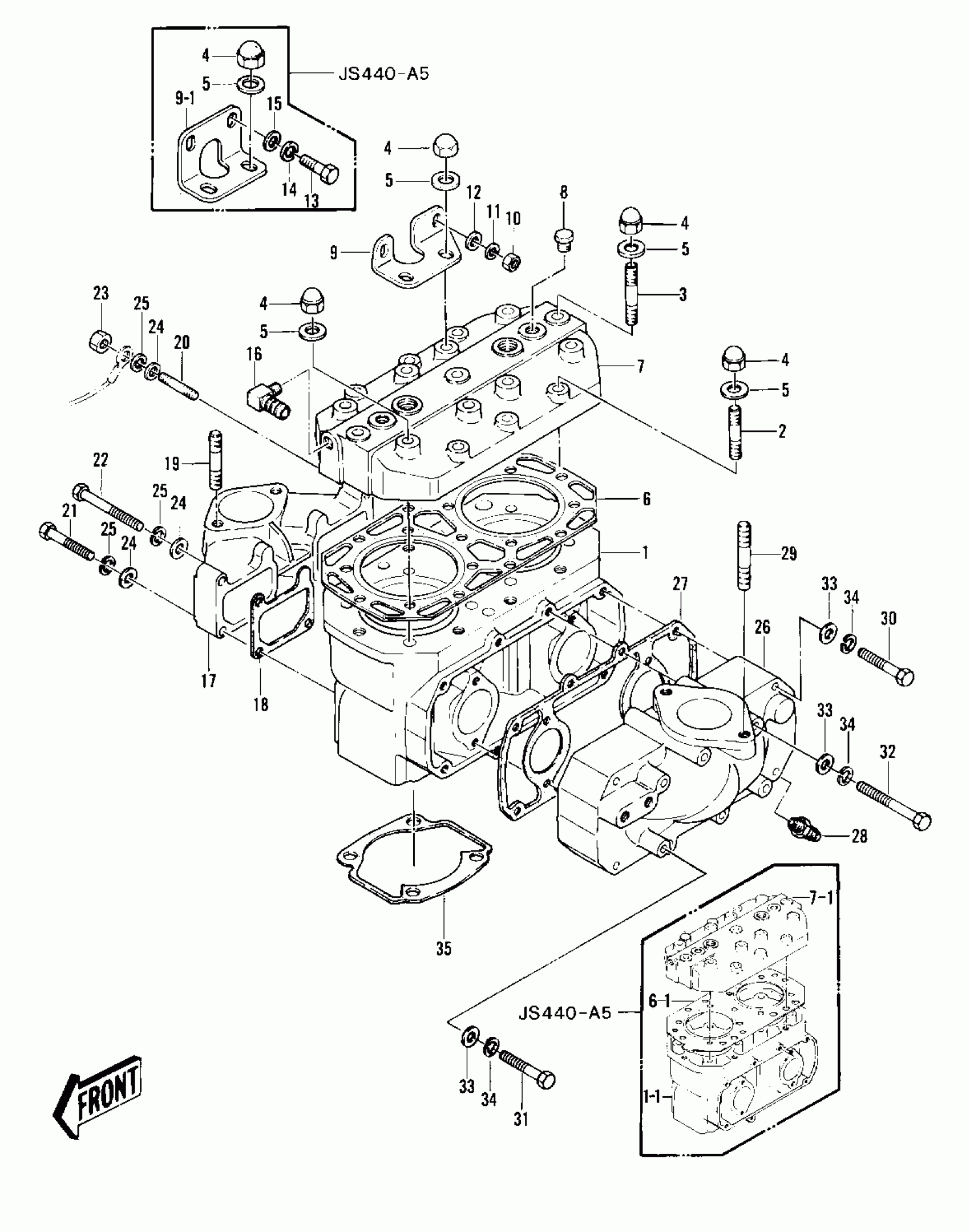

Kawasaki JS440 CYLINDER HEAD/CYLINDER ('79-'81 A3/A4/A4 Diagram

#

Description
Price

1

CYLINDER ASSY

11005-3033

Unavailable

2

STUD,8X42

92004-3009

$2.85

3

STUD,8X50

92004-3010

$6.24

4

NUT-CAP,8MM

92015-3003

$5.75

5

WASHER-PLAIN,8MM

411S0800

$2.49

6

GASKET-HEAD

11004-3711

Unavailable

7

HEAD ASSY,CYLINDER

49086-3001

$69.02

8

PLUG,CYLINDER HEAD

92066-3001

Unavailable

9

BRACKET,CARBURETOR

11034-3002

Unavailable

10

NUT-HEX,6MM

311R0600

$0.75

11

WASHER-SPRING,6MM

461S0600

$0.97

12

WASHER,PLAIN,6M/M

92022-3018

$1.54

16

ELBOW

52014-3002

$37.06

17

MANIFOLD-INTAKE

59076-505-YR

Unavailable

18

GASKET,INTAKE

11009-3785

$4.80

19

BOLT-STUD,8X35

172R0835

Unavailable

20

BOLT-STUD,6X35

172R0635

Unavailable

21

BOLT 6X35

110R0635

Unavailable

22

BOLT,6X70

110R0670

Unavailable

23

NUT-HEX,6MM

311R0600

$0.75

24

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

25

WASHER-SPRING,6MM

461S0600

$0.97

26

MANIFOLD-EXHAUST

59081-504-YR

$253.83

27

GASKET,EXHAUST MANIFOLD

11009-3779

$26.07

28

FITTING,HOSE

92005-3001

$10.71

29

BOLT-STUD,8X35

172R0835

Unavailable

30

BOLT 6X55

110R0655

Unavailable

31

BOLT 6X75

110R0675

Unavailable

32

BOLT 6X90

110R0690

Unavailable

33

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

34

UNAVAILABLE IN PRICE BOOK

461D0600

Unavailable

35

GASKET-CYLINDER

11009-505

Unavailable
