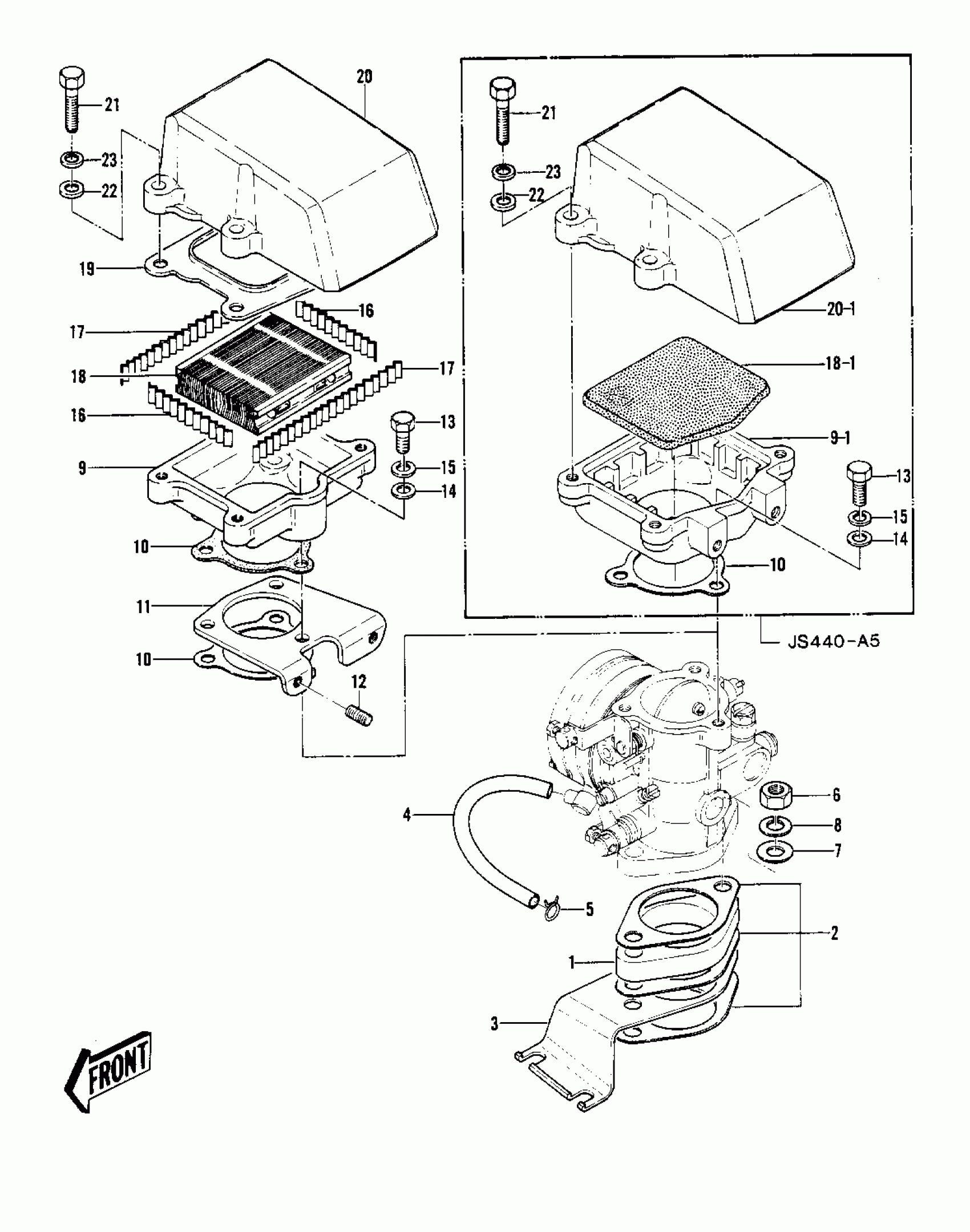

Kawasaki JS440 CARBURETOR BRACKETS/FLAME ARRESTER ('79- Diagram

#

Description
Price

1

INSULATOR

16061-511

Unavailable

2

GASKET,INSULATOR

11009-3786

Unavailable

3

BRACKET,CONTROL

11034-3004

Unavailable

4

TUBE,PULS

92059-518

Unavailable

5

CLAMP

92037-1173

$2.92

6

NUT-HEX,8MM

312R0800

Unavailable

7

WASHER-PLAIN-SMALL,8MM

410S0800

$1.68

8

WASHER SPRING 8MM

461S0800

$0.66

9

CASE,FLAME ARRESTER

59021-527-9G

$14.23

10

GASKET,ARRESTER CASE

11060-3702

Unavailable

11

BRACKET,CARBURETOR

11034-3003

Unavailable

12

STUD,6X12

171R0612

$2.46

13

BOLT,6X25

110R0625

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

15

WASHER-SPRING,6MM

461S0600

$0.97

16

SPRING

92081-544

$12.54

17

SPRING

92081-545

$11.03

18

ARRESTER,FLAME

59006-502

$45.08

19

PLATE,FLAME ARRESTER

59086-540

$9.97

20

COVER,AIR INTAKE

59036-563

$13.43

21

BOLT,6X30

92001-3022

Unavailable

22

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

23

WASHER-SPRING,6MM

461S0600

$0.97
